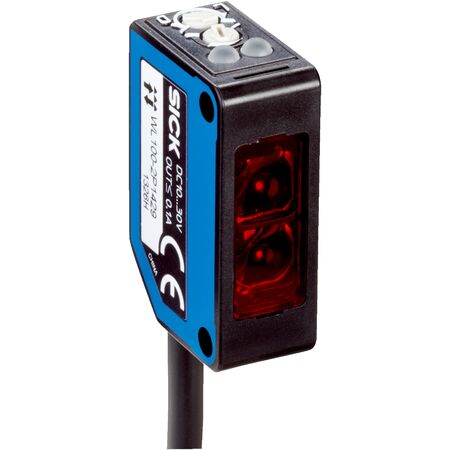

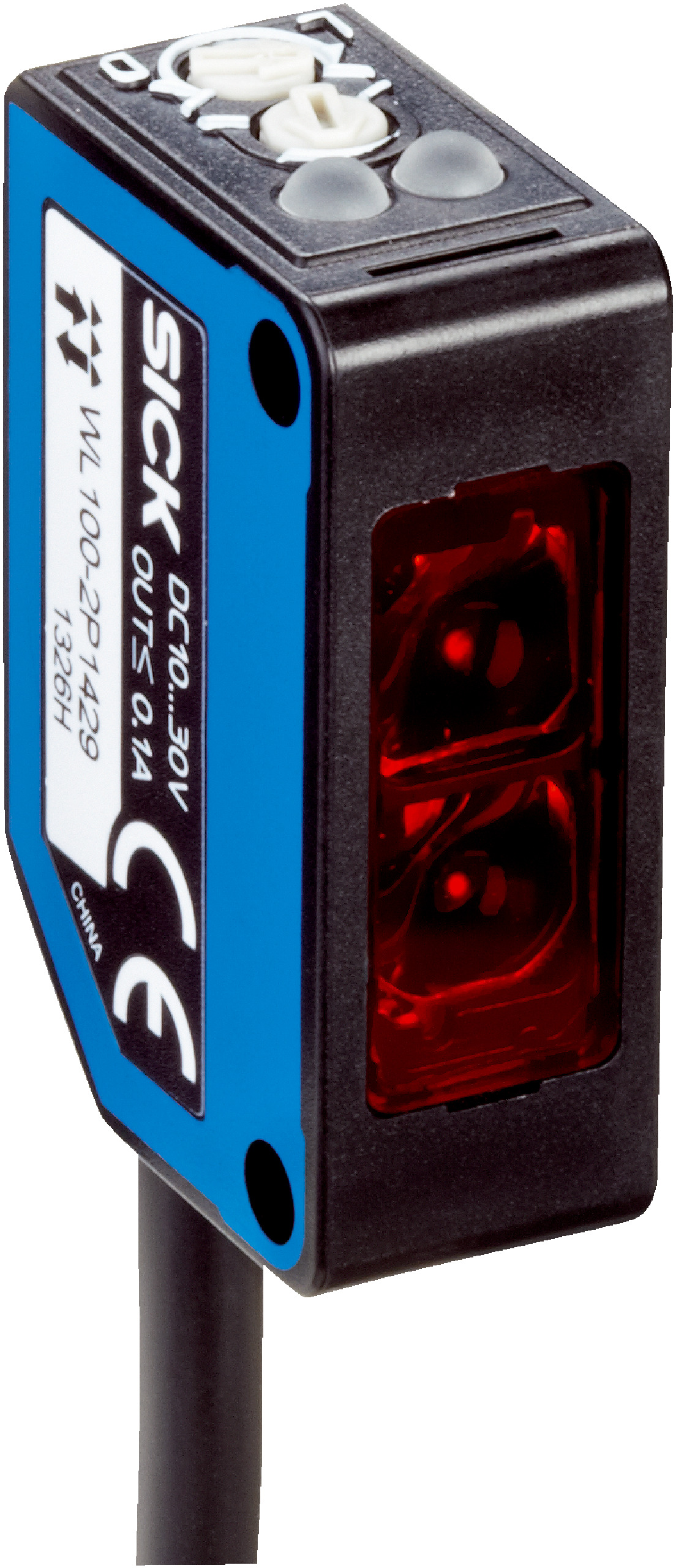

Photoelectric Retro-Reflective Sensor WL100-2P1439S22 | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL100-2P1439S22 is designed for industrial automation, featuring a dual lens system for precise object detection. With a sensing range of 0.01 m to 7.2 m and a fast response time of ≤ 0.5 ms, this sensor is perfect for safety and security systems, material handling, and manufacturing process control. Its durable IP67 rated housing ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.01 m to 7.2 m
- Light source: Visible red LED, wavelength 632 nm
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP with max output current ≤ 100 mA
- Switching mode: Light/dark selectable via rotary switch
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with M12 male connector, 4-pin, 310 mm
- Housing material: Plastic ABS/PC/POM; Optics material: Plastic PMMA
- Enclosure rating: IP67
- Ambient operating temperature: –25 °C to +55 °C
- Circuit protection: A, B, D
- Polarisation filter included
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 632 nm
- Sensing range from 0.01 m to 7.2 m
- Rectangular housing design with IP67 enclosure rating
- Potentiometer for sensitivity adjustment
- Selectable light/dark switching mode via rotary switch
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Cable with M12 male connector, 4-pin, 310 mm length
- Polarisation filter included for improved detection
- Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and security systems
- Material handling and packaging lines
- Manufacturing process control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL100-2P1439S22 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
