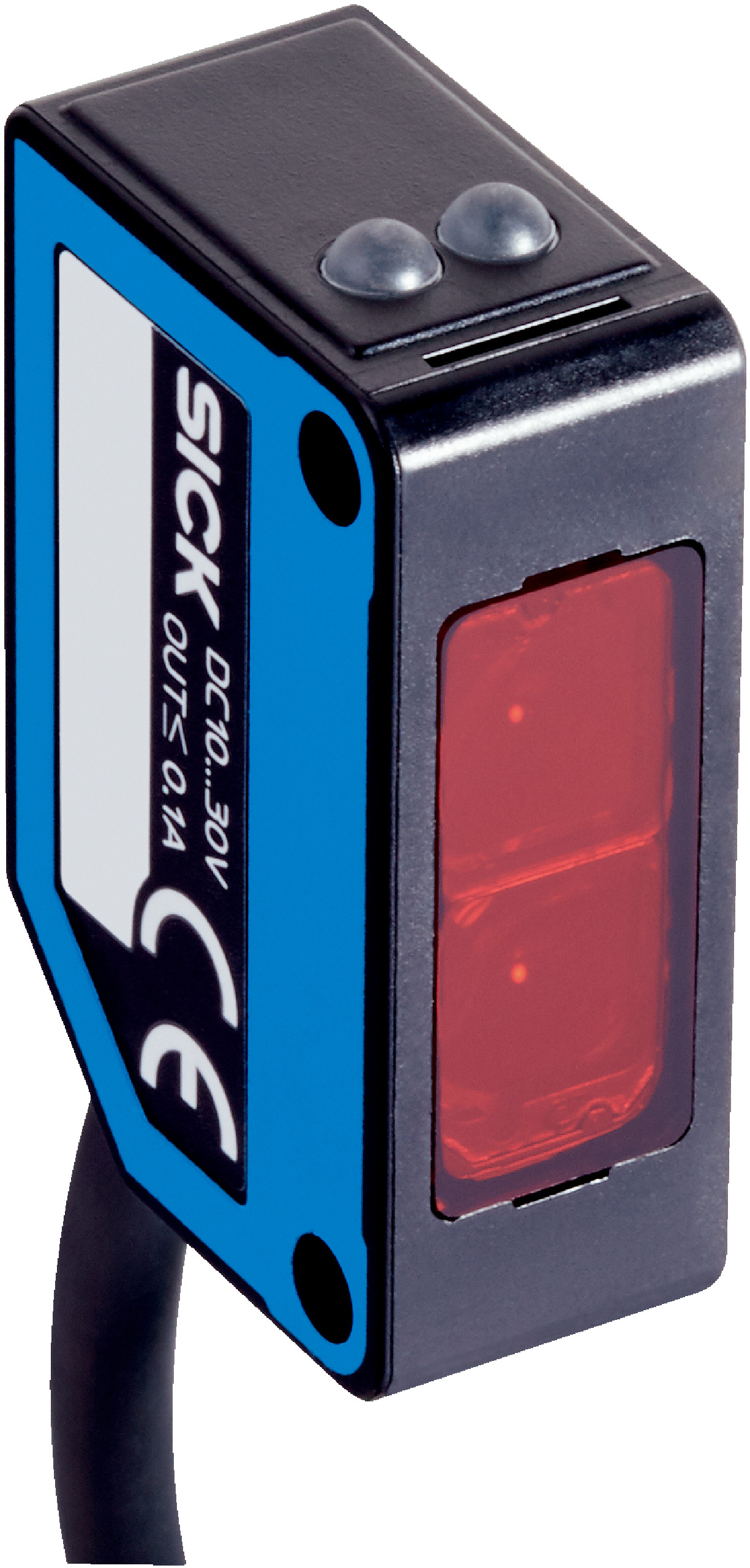

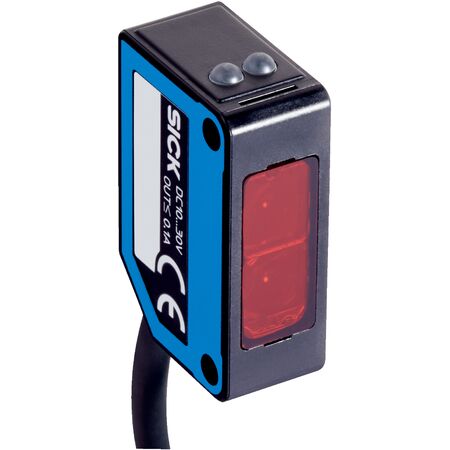

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Enclosure | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL100-2P1332S08 is designed for industrial automation, featuring a dual lens system for minimum distance to reflector and a fast response time of ≤ 0.5 ms. With a robust IP67 enclosure and a sensing range of up to 5.5 m, it's perfect for safety and monitoring in manufacturing processes, ensuring reliable object detection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 3-wire cable, 5 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Ambient operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Light source: LED, visible red light, wavelength 632 nm
- Light spot size at 4 m distance: Ø 280 mm
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Polarisation filter included
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 632 nm
- Sensing range from 0.01 m to 5.5 m (max 7.2 m)
- Rectangular housing design with IP67 enclosure rating
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Polarisation filter included for improved detection
- Robust plastic housing made of ABS/PC/POM and optics made of PMMA
- Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable construction reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL100-2P1332S08 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
