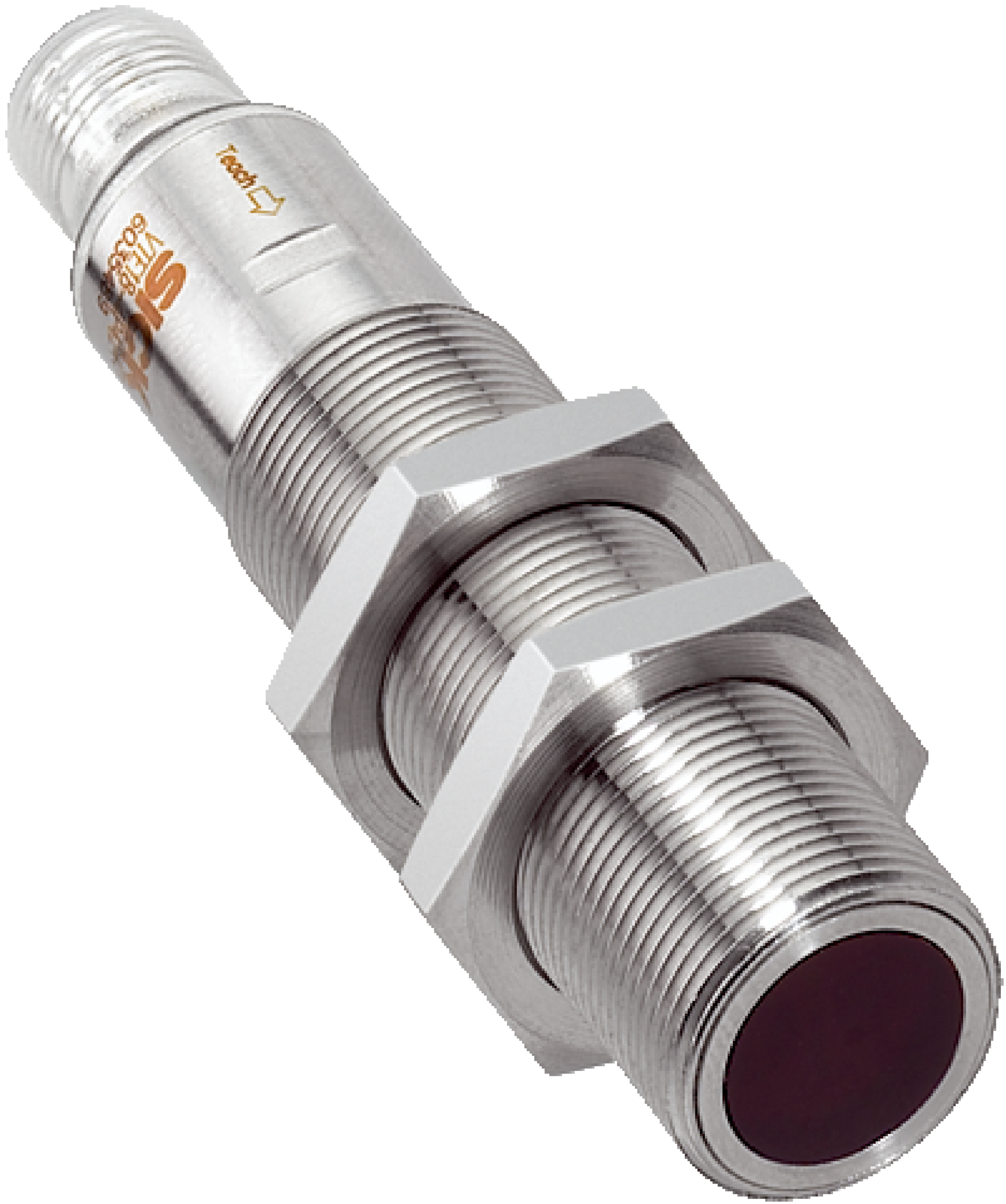

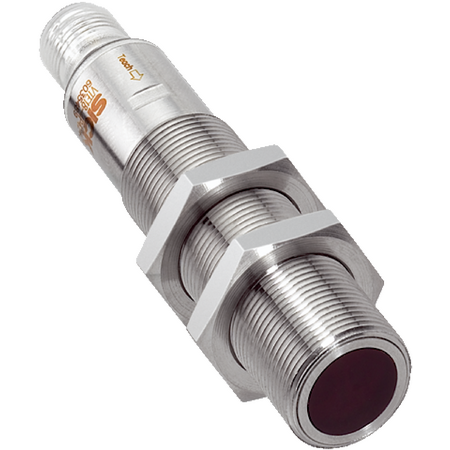

Photoelectric Retro-Reflective Sensor VL18-4P2240V | Dual Lens System | IP67/IP68/IP69K Rated | by SICK
The VL18-4P2240V Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for precise object detection up to 4.5 m. With a robust stainless steel housing and IP67/IP68/IP69K ratings, it excels in hygienic and washdown environments, ensuring reliable performance even in harsh conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Industrial proximity sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max.: 0.035 m to 4.5 m
- Focus angle: 3°
- Light source: Visible red LED, 660 nm wavelength
- Adjustment: Single teach-in button, manual via Touch-Teach-in
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: PNP, light/dark switching selectable
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Housing material: Stainless steel V4A (1.4404, 316L)
- Optics material: Plastic, Plan, PPS (Grilamid)
- Enclosure rating: IP67, IP68, IP69K
- Operating temperature: -25°C to +80°C
- Storage temperature: -40°C to +80°C
- Dimensions (H x L x W): 18mm x 83mm x 18mm
- Weight: 0.12 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with 660 nm wavelength
- Sensing range from 0.035 m to 4.5 m
- Single teach-in button for manual sensing range adjustment
- Cylindrical metal housing made of stainless steel V4A (1.4404, 316L)
- IP67, IP68, and IP69K rated for harsh environments
- Detects transparent objects effectively
- Operating temperature range from -25°C to +80°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Detection of transparent objects
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK VL18-4P2240V Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
