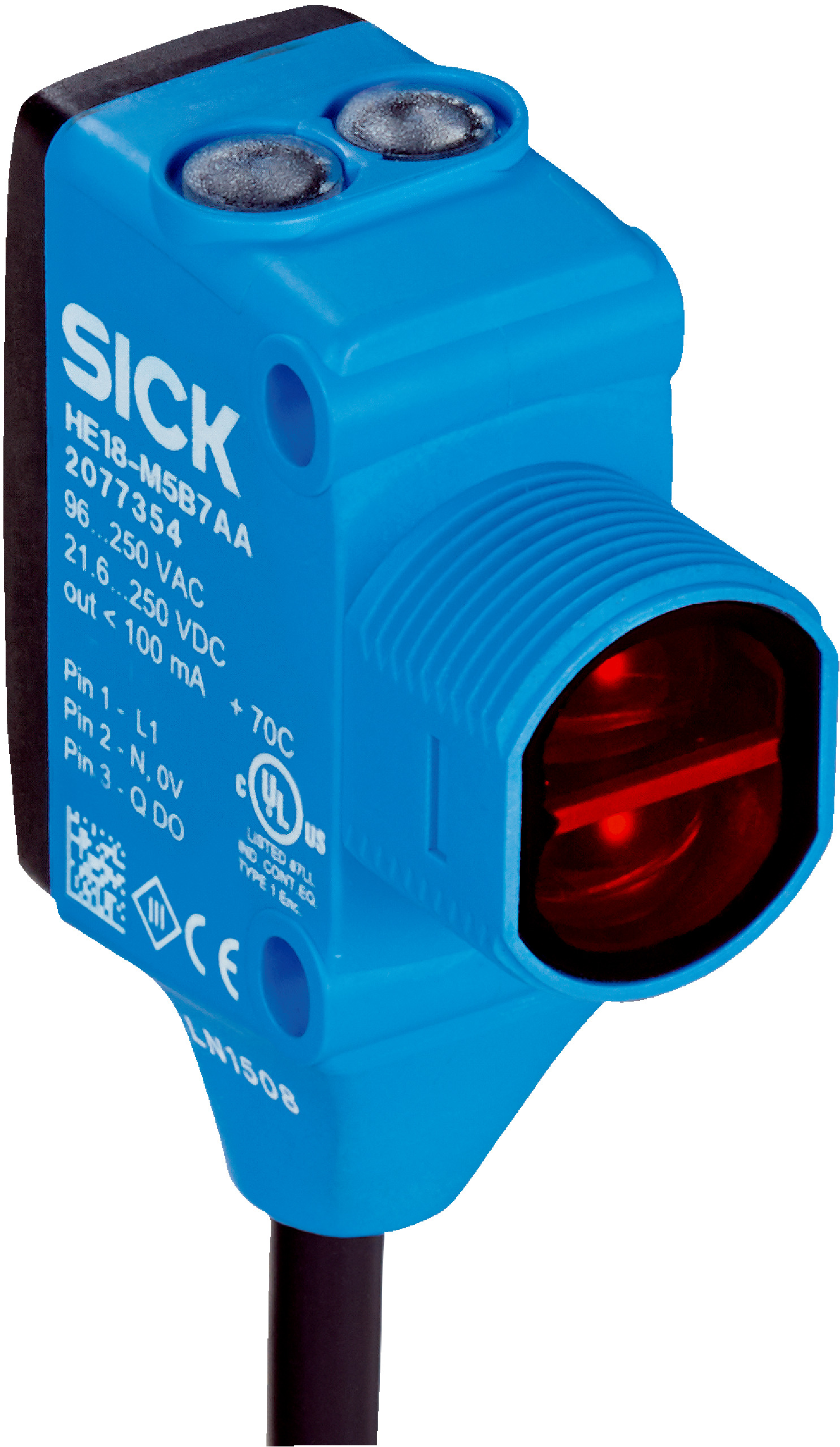

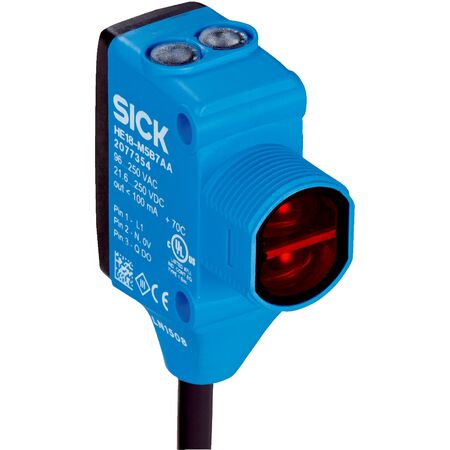

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 & IP69K Rated | 0.1m to 3m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor HL18G-M1G3AL is designed for industrial automation, featuring a dual lens system and a sensing range of 0.1m to 3m. With a robust IP67 and IP69K rating, it excels in harsh environments, ensuring reliable object detection. Its dark switching MOSFET output and fast response time of ≤ 0.5 ms make it ideal for detecting transparent objects in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 21.6 V DC to 250 V DC, 96 V AC to 250 V AC
- Current consumption: ≤ 10 mA
- Switching output: MOSFET, dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Cable open end, 2 m, PVC
- Conductor cross section: 0.2 mm²
- Protection class: II
- Enclosure rating: IP67, IP69K
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Ambient operating temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 45.5mm x 34.4mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Visible red light with PinPoint LED at 631 nm wavelength
- Sensing range from 0.1 m to 2.5 m, max 3 m
- AutoAdapt feature for automatic adjustment
- Dark switching MOSFET output with ≤ 0.5 ms response time
- High switching frequency of 1,000 Hz
- Robust plastic VISTAL® housing with IP67 and IP69K protection
- Operating temperature range from -40 °C to +70 °C
- Includes fastening nut M18, plastic, black, flat
- Polarizing filter included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to industrial safety standards.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Use in harsh environments requiring IP67 and IP69K protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with ≤ 10 mA current draw
- Durable housing reduces waste through extended product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK HL18G-M1G3AL Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
