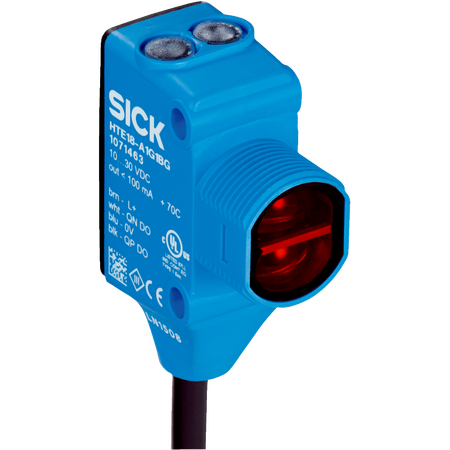

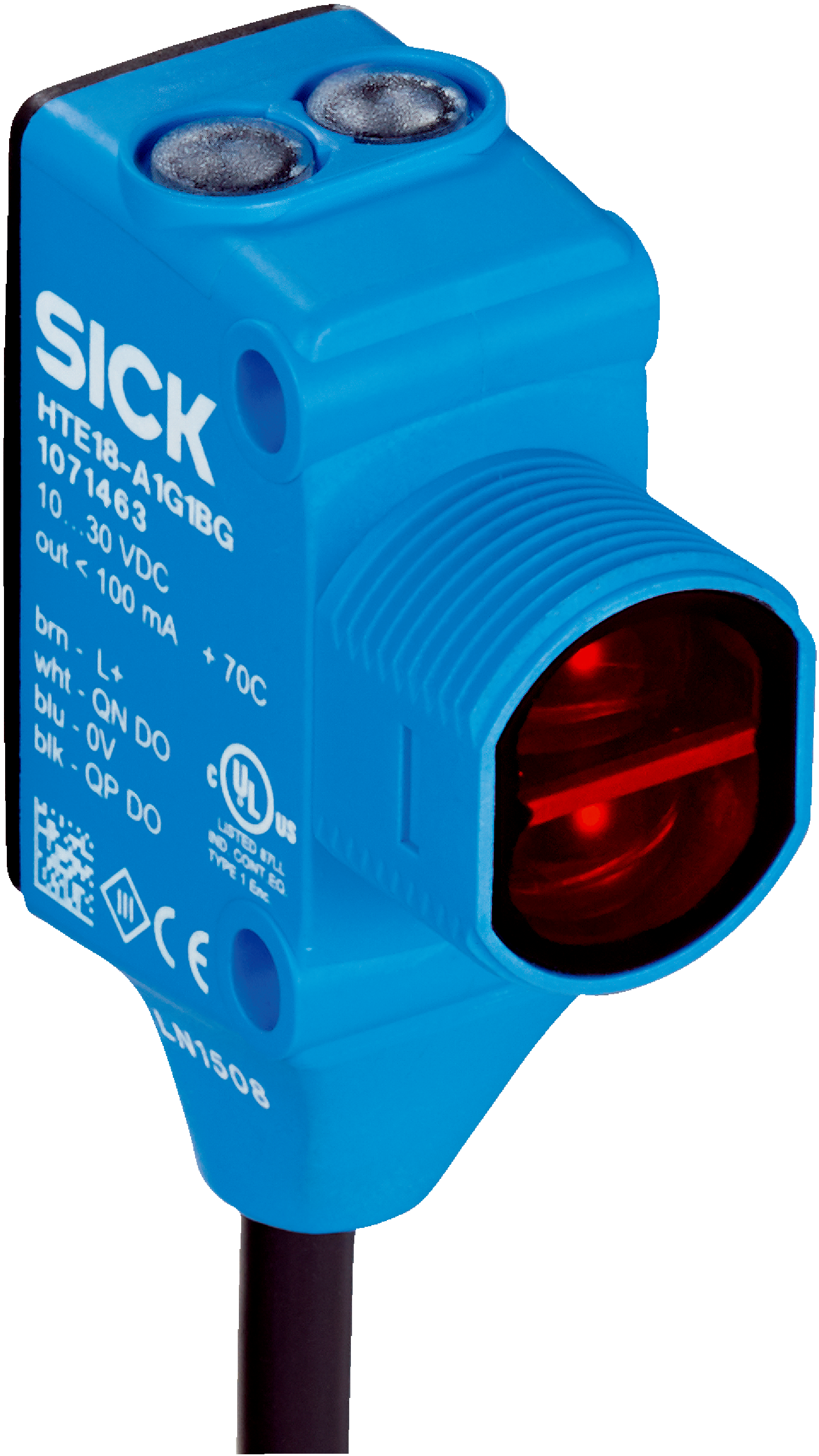

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 & IP69K Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor HL18L-P4B5BB features a dual lens system and a visible red laser light source, making it perfect for industrial automation and object detection. With a sensing range of 0.1 m to 10 m and an impressive response time of ≤ 0.5 ms, this sensor ensures reliable performance in manufacturing process control and safety monitoring applications. Its robust IP67 and IP69K rated enclosure provides durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Laser sensor, M18 photoelectric sensor, Object detection sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.1 m to 10 m (max 12 m)
- Light source: Visible red laser, 655 nm wavelength, Laser class I
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: PNP complementary with light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with M12 male connector, 4-pin, 150 mm
- Housing material: Plastic VISTAL®, optics material: Plastic PMMA
- Enclosure rating: IP67, IP69K
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 18 g
- Dimensions (H x L x W): 45.5mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red laser light source with 655 nm wavelength
- Sensing range from 0.1 m to 10 m (max 12 m)
- Signal strength light bar for easy adjustment
- IP67 and IP69K rated enclosure for robust protection
- M18 threaded housing with hybrid light emission design
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Complementary PNP switching outputs with light/dark switching modes
- Polarizing filter included to reduce interference
- Cable with M12 male connector, 4-pin, 150 mm length
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment and electrical connection according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Small object detection in production lines
- Safety and monitoring in automated systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable IP67/IP69K rated housing reduces need for frequent replacements
- Complies with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK HL18L-P4B5BB Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
