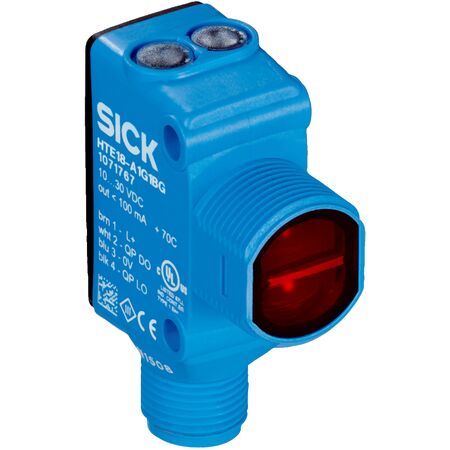

Photoelectric Retro-Reflective Sensor HL18-F4A3BD | Dual Lens System | IP67 & IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor HL18-F4A3BD is designed for industrial automation, featuring a dual lens system for precise object detection up to 6.5 m. With a fast response time of ≤ 0.5 ms and robust IP67/IP69K protection, it's perfect for safety and monitoring in manufacturing processes. Ideal for material handling and conveyor systems, this sensor ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

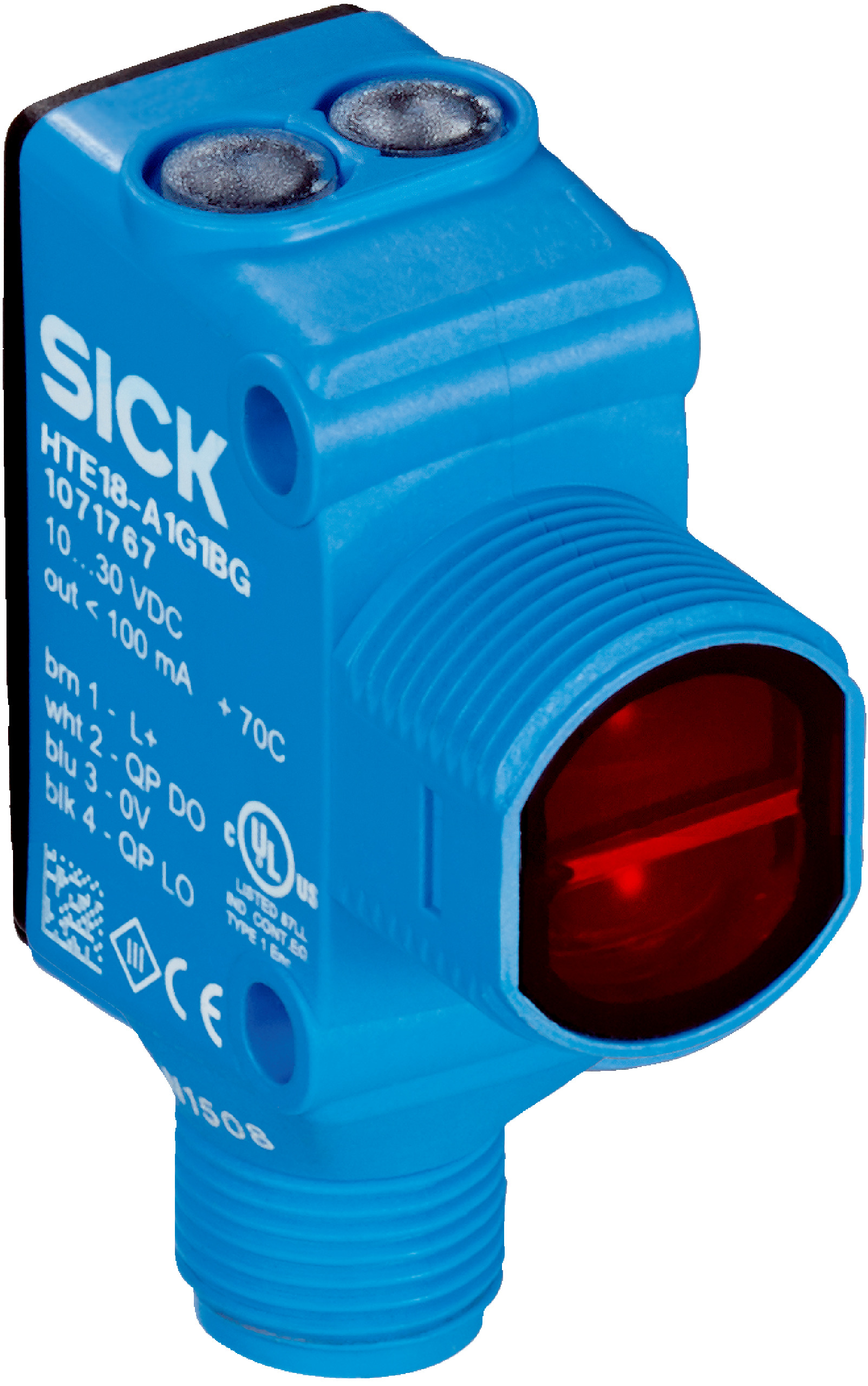

Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.03 m to 6.5 m
- Light source: Visible red PinPoint LED, wavelength 631 nm
- Light spot size at 6.5 m: 130 mm x 260 mm
- Supply voltage: 10 V DC to 30 V DC with ripple < 5 V pp
- Current consumption: ≤ 20 mA
- Switching output: Push-pull PNP/NPN complementary with light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Enclosure rating: IP67 and IP69K
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Ambient operating temperature: -40 °C to +70 °C
- Circuit protection: Types A, B, D
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 48.5mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range from 0.03 m to 6.5 m
- Signal strength light bar for easy adjustment
- Push-pull PNP/NPN complementary switching outputs with light/dark switching modes
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Robust plastic VISTAL® housing with IP67 and IP69K protection ratings
- Wide ambient operating temperature range from -40 °C to +70 °C
- Includes fastening nut M18 for flexible mounting
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable housing materials extend product lifespan reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK HL18-F4A3BD Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
