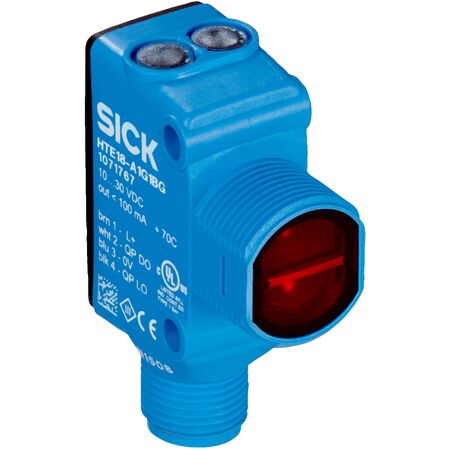

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 & IP69K Rated | by SICK
The HL18G-A4A3BM photoelectric retro-reflective sensor features a dual lens system and visible red light with a PinPoint LED, making it ideal for industrial automation and object detection. With a sensing range of 0.1 m to 3 m and an IP67/IP69K protection rating, it excels in harsh environments, ensuring reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 49mm x 32mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Visible red light with PinPoint LED at 631 nm wavelength
- Sensing range from 0.1 m to 3 m
- AutoAdapt signal strength light bar for easy adjustment
- Adjustable on delay from 0 to 2 seconds
- M18 threaded housing with hybrid light emission design
- Protection rating IP67 and IP69K for harsh environments
- Polarizing filter included to reduce interference
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Supply voltage range 10 V DC to 30 V DC
- Switching outputs PNP and NPN with dark switching mode
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Use in harsh environments requiring IP67/IP69K protection
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with ≤ 20 mA current draw
- Durable plastic housing (VISTAL®) and optics (PMMA) for long service life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK HL18G-A4A3BM sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
