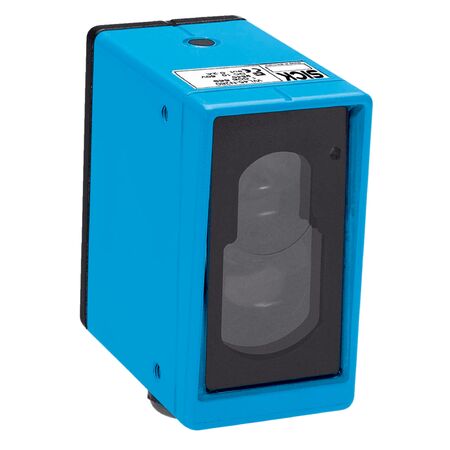

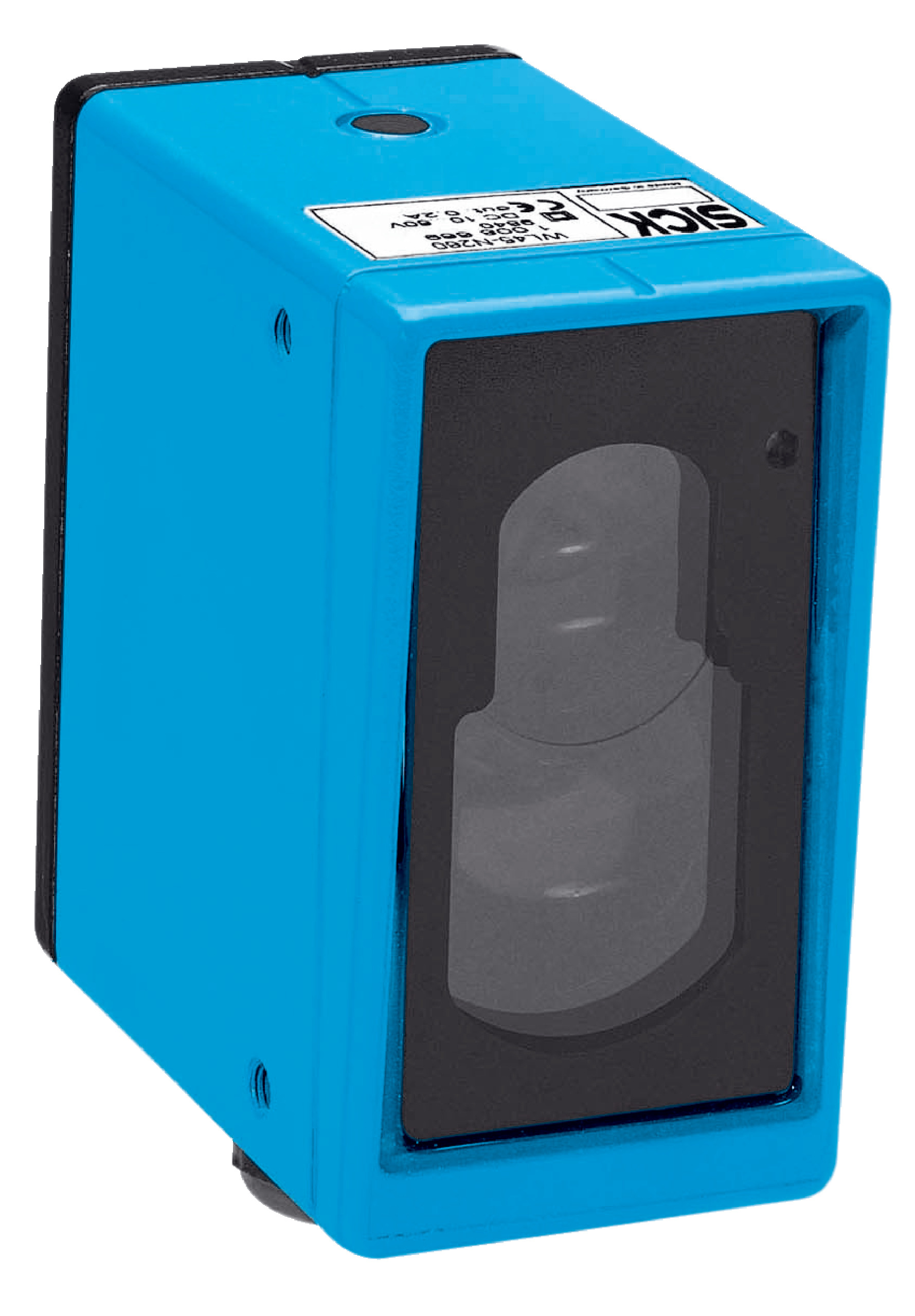

Photoelectric Retro-Reflective Sensor WL45-P250 | Dual Lens System | IP67 Enclosure | by SICK
The WL45-P250 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for enhanced detection up to 45 meters. With a robust IP67 enclosure and visible red LED light source, it ensures reliable performance in various applications, including safety monitoring and material handling. Ideal for professionals seeking precision and durability in sensor technology.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL45-P250 | Dual Lens System | IP67 Enclosure | by SICK
Brand: SICK
SKU: 1008840
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Industrial proximity sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 1 m to 45 m (max 55 m)
- Light source: Visible red LED
- Light spot size at 16 m: Ø 230 mm
- Supply voltage: 10 V DC to 60 V DC
- Current consumption: 250 mA
- Switching output: PNP, complementary function
- Output current max: ≤ 200 mA
- Response time: ≤ 1.2 ms
- Switching frequency: 400 Hz
- Time functions: Switch-on delay, off delay, ON and OFF delay
- Connection type: Terminal connection with PG13.5, 6-pin
- Circuit protection: Types A, C, D
- Protection class: I
- Enclosure rating: IP67
- Ambient operating temperature: -25°C to +55°C
- Ambient storage temperature: -40°C to +70°C
- Additional features: Polarisation filter, front screen heating, alarm output 100 mA
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 0.8 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED source
- Adjustable potentiometer for sensitivity and delay settings
- Robust metal housing with IP67 enclosure rating
- Polarisation filter and front screen heating for reliable operation
- Switching output: PNP with complementary output function
- Switching mode: Light/dark switching
- Adjustable delay time via selector switch (0.015 s to 12 s)
- High switching frequency of 400 Hz
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL45-P250 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
