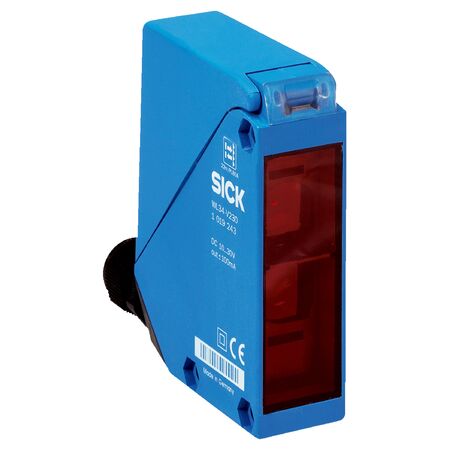

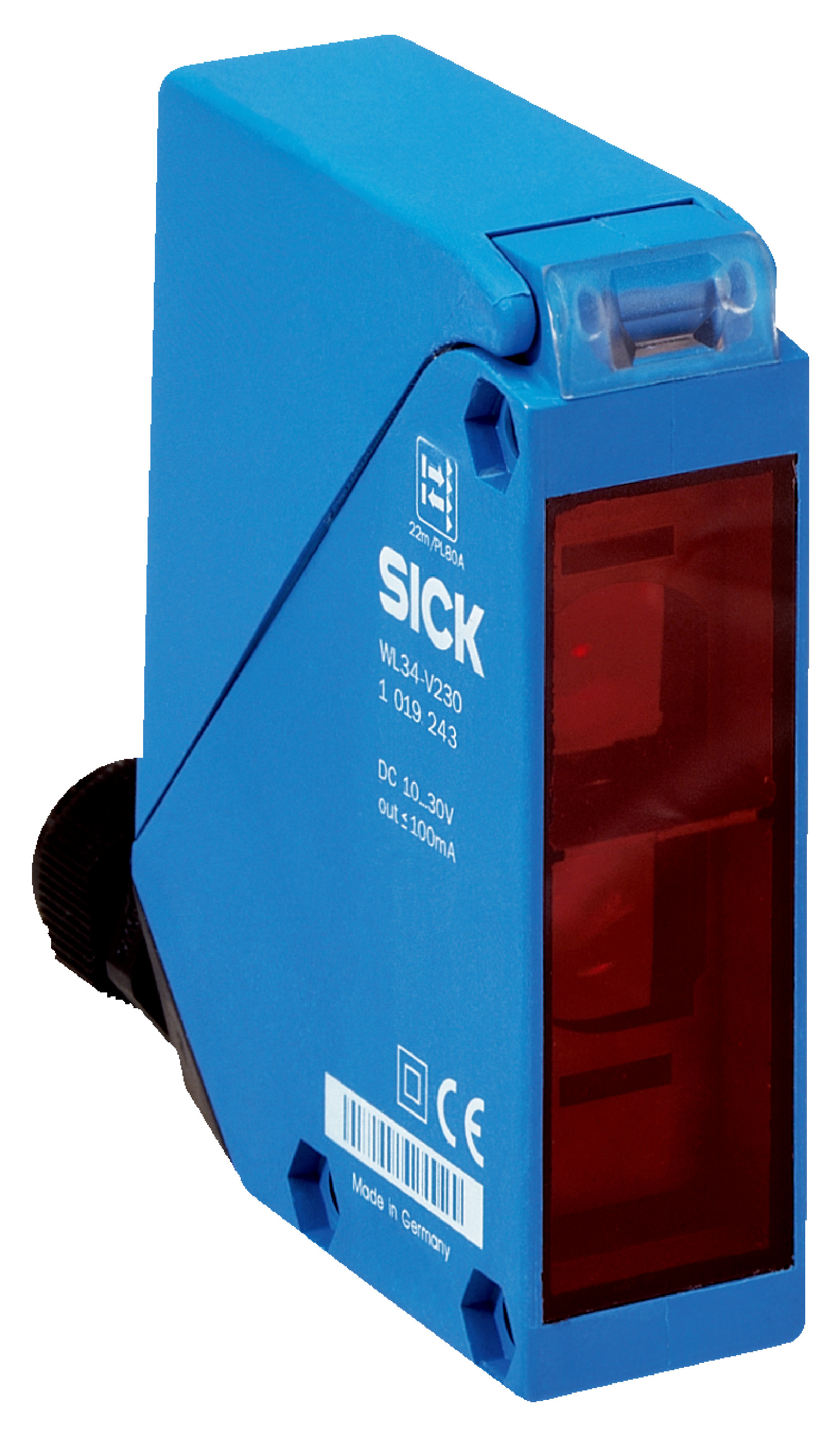

Photoelectric Retro-Reflective Sensor WL34-V240 | Dual Lens System | IP67 Rated | by SICK
The WL34-V240 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for precise object detection up to 22 meters. With selectable NPN/PNP outputs and adjustable sensitivity, it's perfect for safety monitoring in manufacturing processes and material handling applications. Its robust IP67 housing ensures durability in harsh environments, making it a reliable choice for your automation needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL34-V240 | Dual Lens System | IP67 Rated | by SICK
Brand: SICK
SKU: 1019244
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, SICK WL34 sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.03 m to 22 m
- Light source: Visible red LED, wavelength 660 nm
- Adjustment: Potentiometer for sensitivity and delay
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 50 mA
- Switching output: NPN, PNP selectable
- Switching mode: Light switching, Dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Time functions: Off delay and switch-on delay adjustable (0.5 s to 10 s)
- Connection type: Terminal connection with M16 gland
- Circuit protection: Types A, C, D
- Protection class: II
- Housing material: Plastic, ABS
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Weight: 140 g
- Dimensions (H x L x W): 92mm x 70mm x 27mm
- Weight: 0.14 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 660 nm
- Adjustable potentiometer for sensitivity and delay time
- Selectable switching modes: light switching and dark switching
- NPN and PNP switching output options
- High switching frequency of 1,000 Hz
- Time functions include off delay and switch-on delay adjustable from 0.5 s to 10 s
- Polarisation filter included to reduce false triggering
- Robust plastic ABS housing with IP67 enclosure rating
- Wide ambient operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and safety standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL34-V240 Photoelectric Retro-Reflective Sensor is available now for immediate purchase. Ideal for industrial automation and safety monitoring applications.
