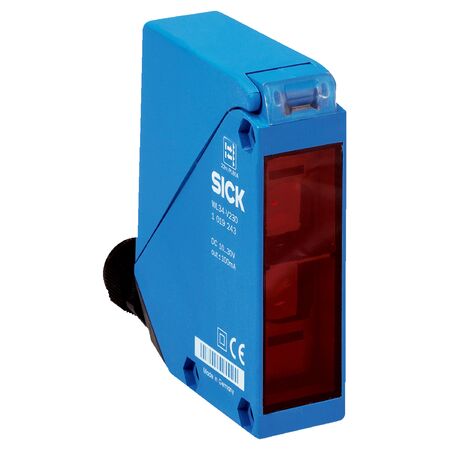

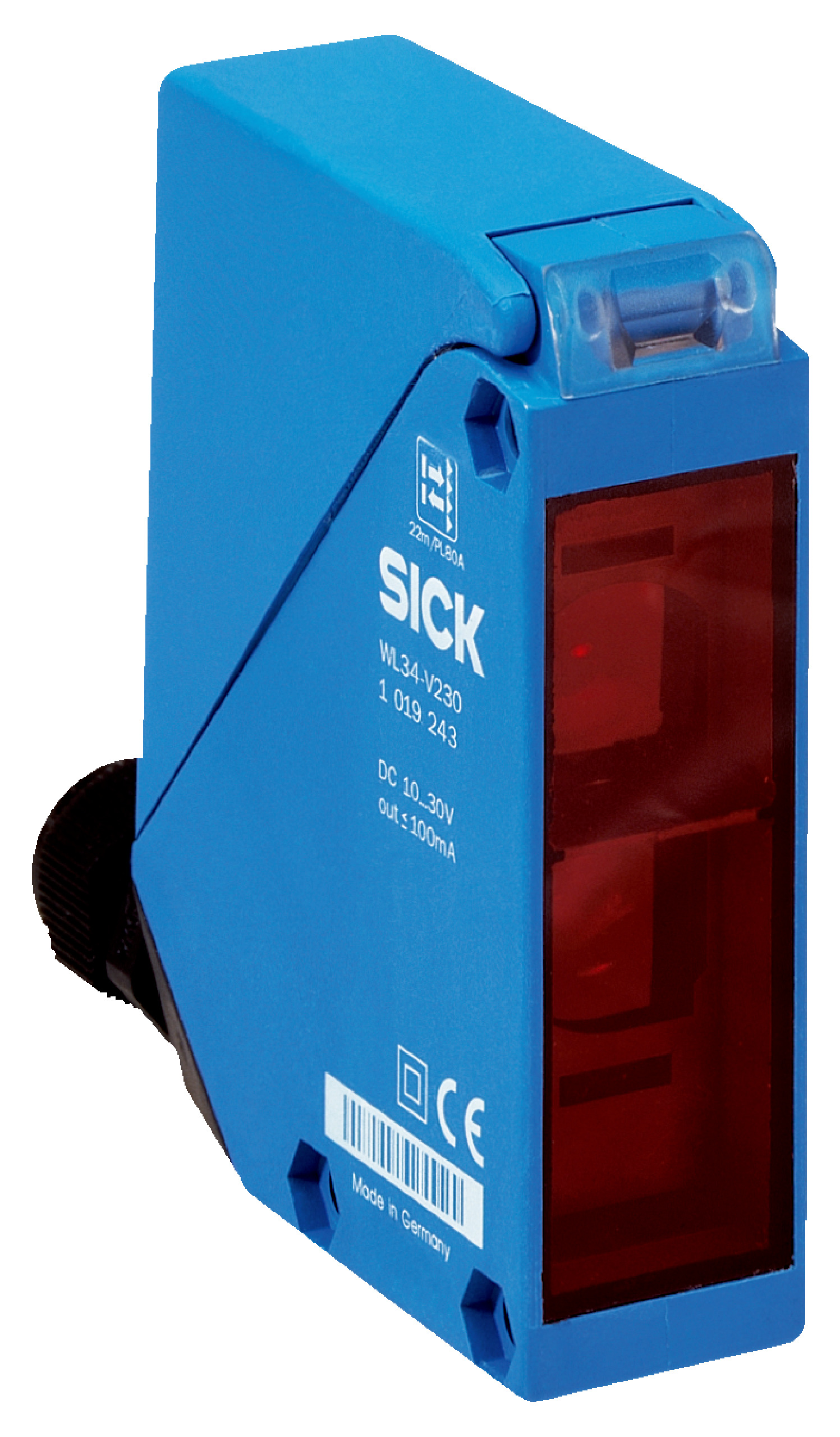

Photoelectric Retro-Reflective Sensor WL34-B430 | Dual Lens System | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL34-B430 features a dual lens system for precise object detection, with a sensing range of 0.03 m to 15 m. Ideal for industrial automation and safety monitoring, this sensor operates with a visible red LED light and offers selectable switching modes. Built to withstand harsh environments, it boasts an IP67 rating, making it perfect for manufacturing processes and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL34-B430 | Dual Lens System | IP67 Rated | by SICK
Brand: SICK
SKU: 1019245
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, Industrial sensor, SICK WL34 sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.03 m to 15 m (max 22 m to reflector)
- Light source: Visible red LED, wavelength 660 nm
- Adjustment: Potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 50 mA
- Switching output: NPN, PNP selectable
- Switching mode: Light switching, Dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, C, D
- Protection class: II
- Housing material: Plastic, ABS
- Enclosure rating: IP67
- Operating temperature: –40 °C to +60 °C
- Storage temperature: –40 °C to +75 °C
- Weight: 140 g
- Polarisation filter included
- Dimensions (H x L x W): 92mm x 70mm x 27mm
- Weight: 0.14 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 660 nm
- Selectable switching modes: light switching and dark switching
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- Robust plastic ABS housing with IP67 enclosure rating for dust and water protection
- Wide operating temperature range from –40 °C to +60 °C
- Polarisation filter included to reduce interference
- Connection via male M12 4-pin connector
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 50 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL34-B430 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
