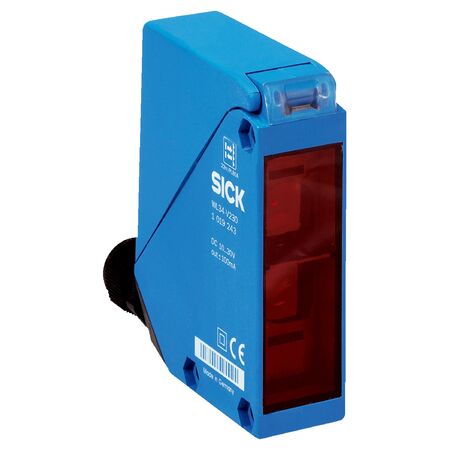

Photoelectric Retro-Reflective Sensor WL34-V530 | Dual Lens System | IP67 Rated | by SICK
The WL34-V530 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for a sensing range of 0.03 m to 22 m. With selectable light and dark switching modes, robust IP67 housing, and a high switching frequency of 1,000 Hz, it's perfect for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL34-V530 | Dual Lens System | IP67 Rated | by SICK
Brand: SICK
SKU: 1019247
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, SICK WL34 sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.03 m to 22 m
- Type of light: Visible red light LED at 660 nm wavelength
- Adjustment: Potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 50 mA
- Switching output: NPN, PNP
- Switching mode: Light switching, Dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Plug, M12, 5-pin
- Circuit protection: Types A, C, D
- Protection class: II
- Housing material: Plastic, ABS
- Enclosure rating: IP67
- Ambient operating temperature: -40 °C to +60 °C
- Ambient storage temperature: -40 °C to +75 °C
- Weight: 140 g
- Polarisation filter: Yes
- Alarm output: Yes
- Dimensions (H x L x W): 92mm x 70mm x 27mm
- Weight: 0.14 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m to 22 m
- Visible red light LED with 660 nm wavelength
- Selectable switching mode: light switching or dark switching
- NPN and PNP switching outputs
- High switching frequency of 1,000 Hz
- Robust plastic ABS housing with IP67 enclosure rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Polarisation filter included
- Alarm output feature
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with photoelectric sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 50 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL34-V530 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
