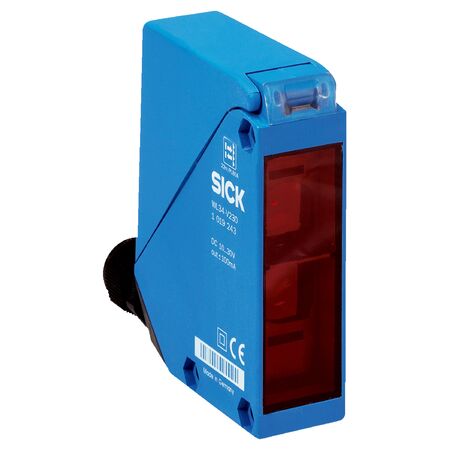

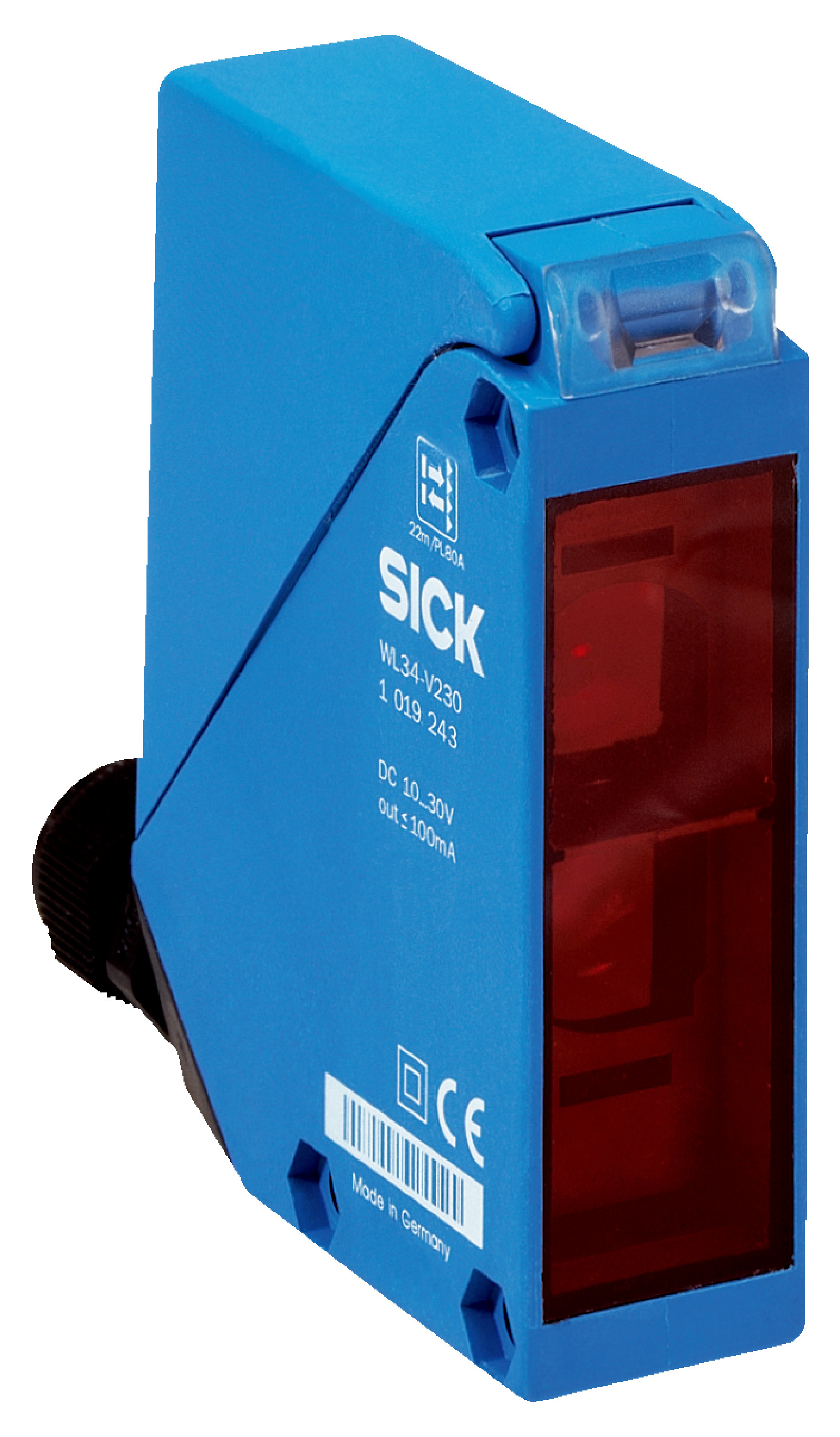

Photoelectric Retro-Reflective Sensor WL34-R240 | Dual Lens System | IP67 Rated | by SICK
The WL34-R240 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for enhanced detection and a sensing range of 0.03 m to 22 m. With a robust IP67 enclosure and a visible red LED light source, this sensor is perfect for safety monitoring and material handling applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor WL34-R240 | Dual Lens System | IP67 Rated | by SICK
Brand: SICK
SKU: 1019250
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK WL34 sensor, Industrial photo sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.03 m to 22 m
- Light source: Visible red LED, wavelength 660 nm
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Power consumption: < 2 VA
- Switching output: Electrically isolated relay with change-over contacts
- Switching current: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 10 ms
- Switching frequency: 10 Hz
- Time functions: Off delay and switch-on delay adjustable from 0.5 s to 10 s
- Connection type: Terminal connection with M16 gland
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Housing material: Plastic, ABS
- Weight: 140 g
- Dimensions (H x L x W): 92mm x 70mm x 27mm
- Weight: 0.14 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 660 nm wavelength
- Sensing range from 0.03 m up to 22 m
- Rectangular plastic ABS housing with IP67 enclosure rating
- Selectable light/dark switching mode with relay output
- Adjustable time delay from 0.5 s to 10 s
- Operating temperature range from -40 °C to +60 °C
- Polarisation filter included for enhanced detection reliability
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption of less than 2 VA reduces energy usage
- Durable IP67 rated housing ensures long service life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL34-R240 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
