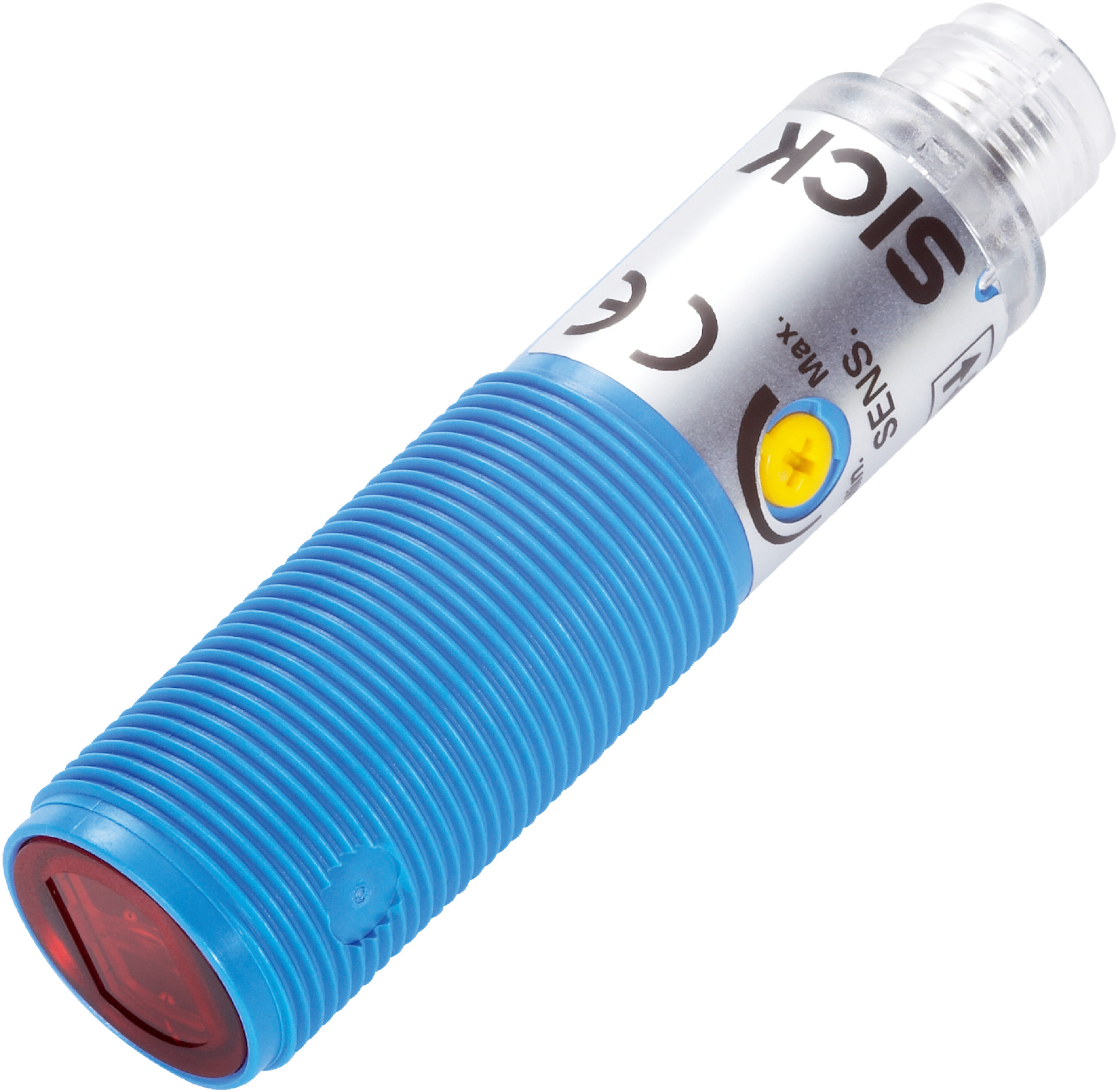

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for precise object detection and a sensing range of 0.05 m to 6 m. With a fast response time of ≤ 0.5 ms and an IP67 rated enclosure, this sensor is perfect for safety and monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1053299
Alternatively Known As: Photoelectric Sensor, Retro-Reflective Sensor, SICK VL180 Sensor, Industrial Object Sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.05 m to 6 m (max 7 m)
- Light source: Visible red LED, wavelength 645 nm
- Adjustment: Potentiometer, 270° sensitivity
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (PBT/PC)
- Operating temperature: -25 °C to +55 °C
- Dimensions (H x L x W): 18mm x 70.2mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 645 nm
- Sensing range from 0.05 m to 6 m (max 7 m)
- Potentiometer adjustment with 270° sensitivity control
- IP67 rated enclosure for dust and water protection
- Plastic housing (PBT/PC) with axial optical axis
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Selectable light/dark switching mode via control cable
- Male connector M12, 4-pin connection type
- Includes reflector PL40A and fastening nuts
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Supports automation that can optimize energy use in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VL180-2P42436P02 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
