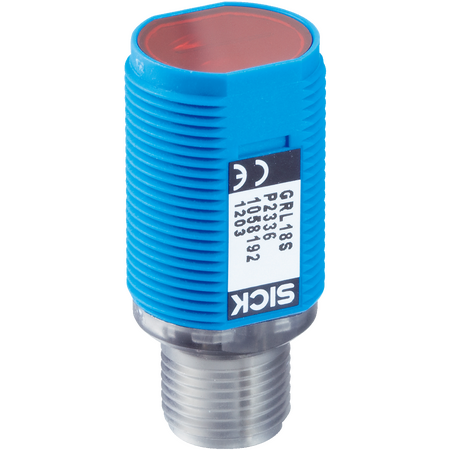

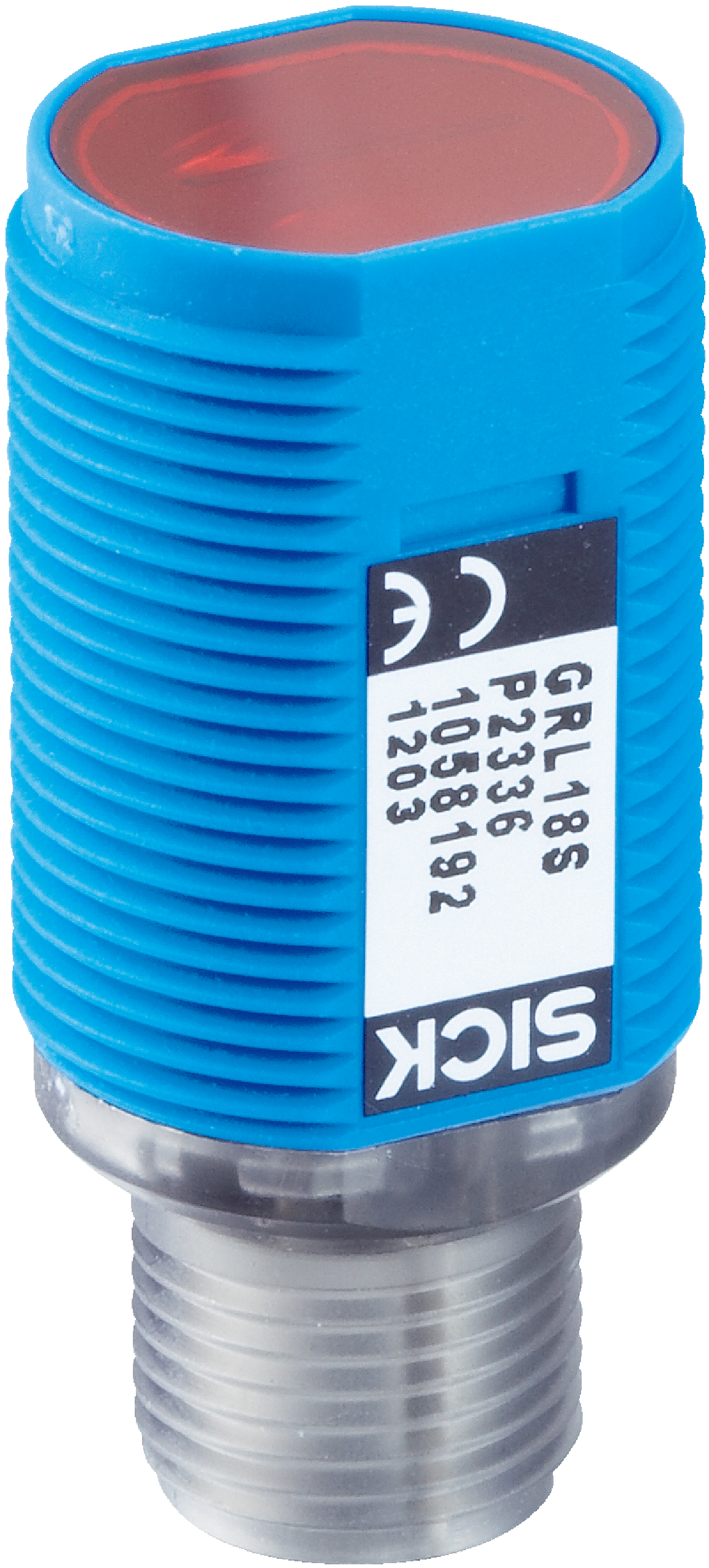

Photoelectric Retro-Reflective Sensor GRL18S-P2336 | Dual Lens System | IP67 Rated | by SICK
The GRL18S-P2336 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for precise object detection within a sensing range of 0.06 m to 6 m. With a robust IP67 rating and a fast response time of under 500 µs, this sensor is perfect for manufacturing process control and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Sensor, Retro-Reflective Sensor, M18 Photoelectric Sensor, Industrial Object Sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.06 m to 6 m
- Light source: PinPoint LED, 650 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Response time: < 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Connector M12, 3-pin
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Circuit protection and EMC compliant (EN 60947-5-2)
- Dimensions (H x L x W): 18mm x 38.1mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Axial optical axis with sensing range from 0.06 m to 6 m
- Plastic ABS housing with IP67 enclosure rating for robust protection
- Connector M12, 3-pin connection type
- Operating temperature range from -25°C to +55°C
- LED indicators for power and object presence status
- High switching frequency of 1,000 Hz and fast response time under 500 µs
- Circuit protection and electromagnetic compatibility compliant
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK GRL18S-P2336 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
