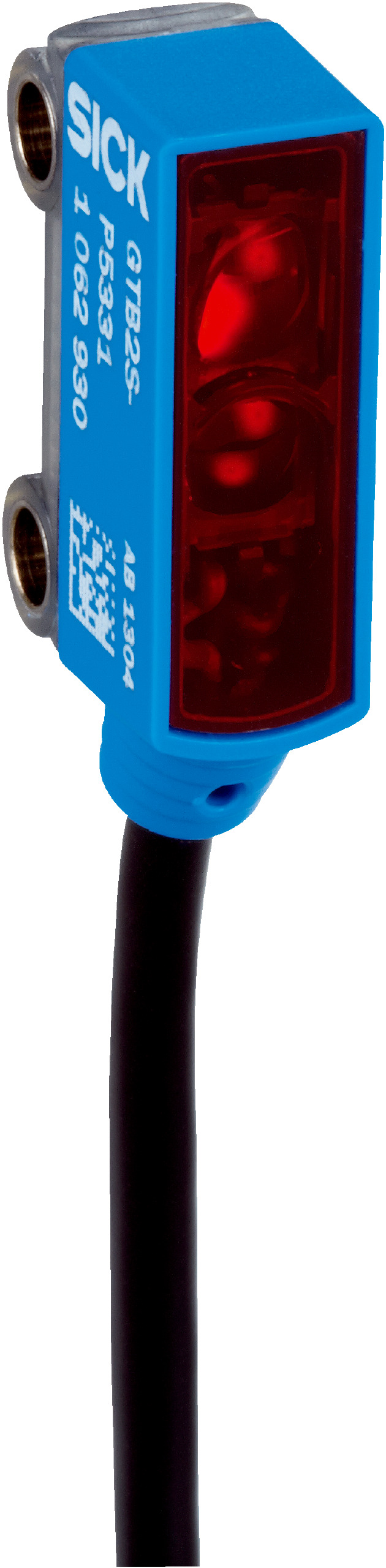

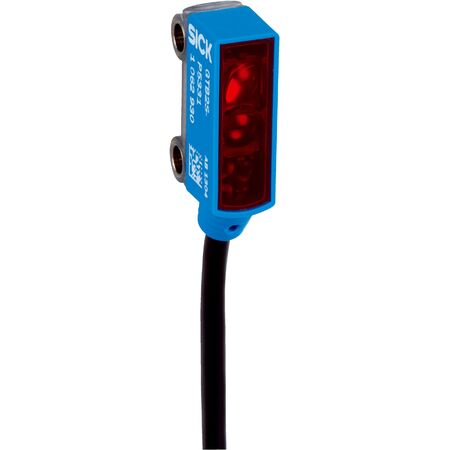

Photoelectric Retro-Reflective Sensor GL2S-P5311 | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The GL2S-P5311 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for precise object detection. With a sensing range of 0.03 m to 2.5 m and a fast response time of under 0.6 ms, this sensor is perfect for safety and monitoring in manufacturing processes. Its IP67 rating ensures durability against dust and water, making it ideal for various applications in material handling and packaging systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.03 m to 2.5 m
- Light source: PinPoint LED, wavelength 640 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Connection: Cable with M8 3-pin connector, 200 mm length
- Housing material: Plastic ABS, Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Weight: 17.5 g
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- High switching frequency of 800 Hz and fast response time under 0.6 ms
- IP67 rated enclosure for dust and water protection
- Polarisation filter included to reduce false triggering
- Wide supply voltage range from 10 V DC to 30 V DC
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 20 mA reduces energy usage
- Durable IP67 housing extends product life and reduces waste
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL2S-P5311 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
