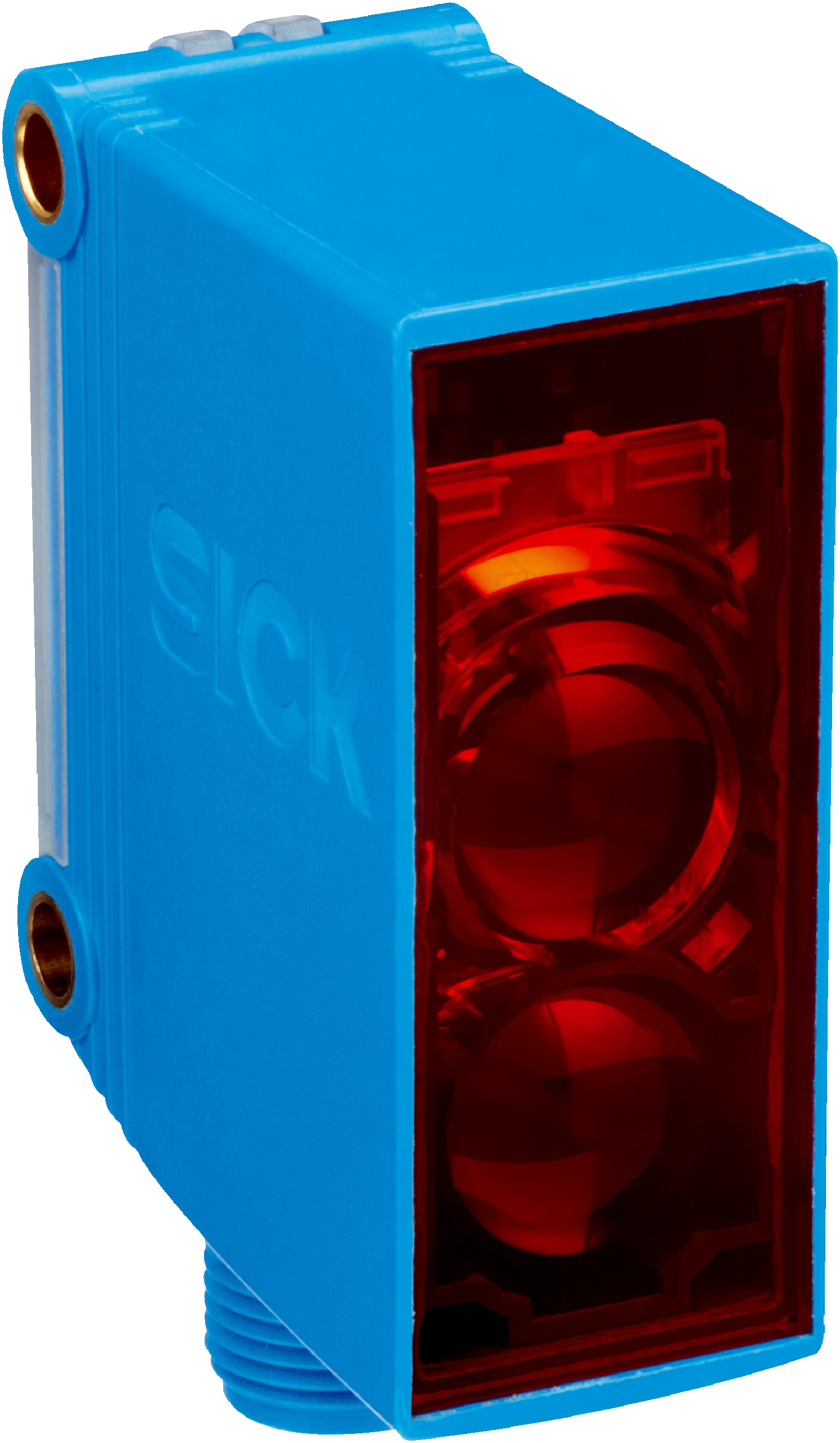

Photoelectric Retro-Reflective Sensor GL10-P4551 | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor GL10-P4551 is designed for industrial automation, featuring a dual lens system for precise object detection and a sensing range of up to 12 m. With an IP67 rating for dust and water protection, this sensor ensures high reliability even in challenging environments. Ideal for detecting foil-wrapped objects, it operates efficiently in temperatures from -30 °C to +60 °C, making it a versatile choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.15 m to 12 m
- Sensing range typical: 0.3 m to 9.5 m
- Light source: PinPoint LED, wavelength 625 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- EMC standard: EN 60947-5-2
- UL File No.: NRKH.E348498 & NRKH7.E348498
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- High functional reliability on foil-wrapped objects
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 1 ms and switching frequency of 500 Hz
- Polarizing filter included to reduce false triggering
- Wide operating temperature range from –30 °C to +60 °C
- Circuit protection and EMC compliance (EN 60947-5-2)
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Detection of objects wrapped in film
- Use in environments requiring high functional reliability on foil-wrapped objects
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing reduces waste through extended product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL10-P4551 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
