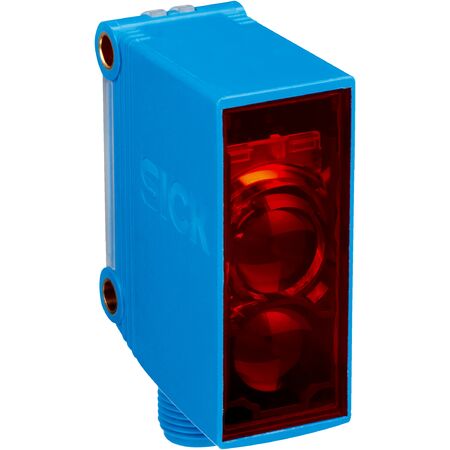

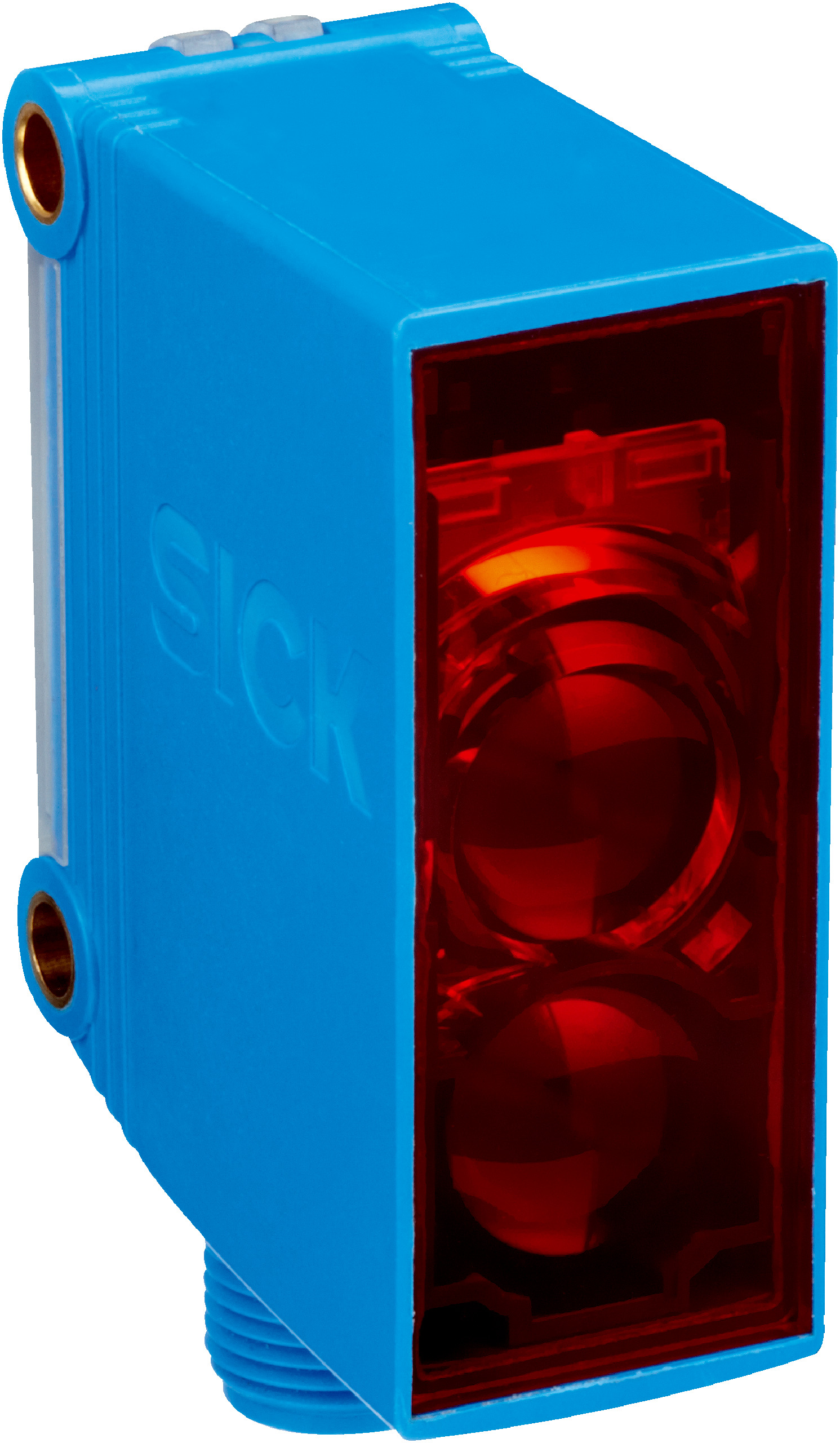

Photoelectric Retro-Reflective Sensor GL10-F4554 | Dual Lens System | IP67 Enclosure | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor GL10-F4554 features a dual lens system for precise object detection, with a sensing range of 0.15 m to 12 m. Designed for industrial automation, it operates reliably on foil-wrapped objects and includes a visible red light PinPoint LED source. With an IP67 enclosure rating and fast response time of ≤ 1 ms, this sensor is perfect for demanding environments requiring high functional reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.15 m to 12 m
- Sensing range typical: 0.3 m to 9.5 m
- Type of light: Visible red light, wavelength 625 nm
- Light source: PinPoint LED
- Light spot size at 5 m: Ø 58 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: A, B, C, D types
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Electromagnetic compatibility: EN 60947-5-2
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- Includes Q-Lock mounting system BEF-KHSQ12R01
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- High functional reliability on foil-wrapped objects
- Rectangular housing design with IP67 enclosure rating
- Polarizing filter included
- Fast response time of ≤ 1 ms and switching frequency of 500 Hz
- Complementary PNP switching output with light/dark switching mode
- Wide supply voltage range from 10 V DC to 30 V DC
- Male connector M12, 4-pin connection type
- Circuit protection and electromagnetic compatibility according to EN 60947-5-2
- Operating temperature range from –30 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detecting objects wrapped in film
- Use in environments requiring high functional reliability on foil-wrapped objects
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing reduces waste by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL10-F4554 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
