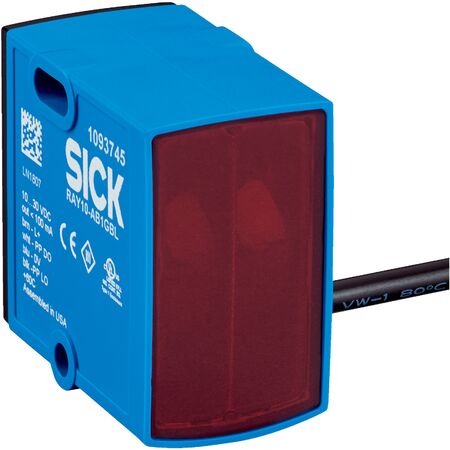

Photoelectric Retro-Reflective Sensor RAY10-AB4CBL | Dual Lens System | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor RAY10-AB4CBL features a dual lens system for precise object detection, with a minimum object size of 5 mm and a sensing range of up to 1.5 m. Ideal for industrial automation, this sensor is designed to detect various object types, including transparent and shiny surfaces, ensuring reliable performance in diverse applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Minimum object size: 5 mm
- Detection height: 25 mm
- Sensing range max.: 0 to 1.5 m
- Light source: PinPoint LED, 635 nm wavelength
- Adjustment: Potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: Push-pull PNP/NPN
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Cable with M12 male connector, 4-pin, 300 mm
- Cable material: Plastic PVC
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Dimensions (H x L x W): 36mm x 38mm x 22mm
- Weight: 0.13 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Minimum object size detection of 5 mm
- Sensing range up to 1.5 m
- Visible red light with PinPoint LED at 635 nm wavelength
- Potentiometer adjustment for sensitivity
- Light/dark switching mode with push-pull PNP/NPN output
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- Robust plastic ABS housing with IP67 enclosure rating
- Wide ambient operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Detecting transparent, perforated, uneven, shiny, and flat objects
- Position-independent detection within light array
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RAY10-AB4CBL Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
