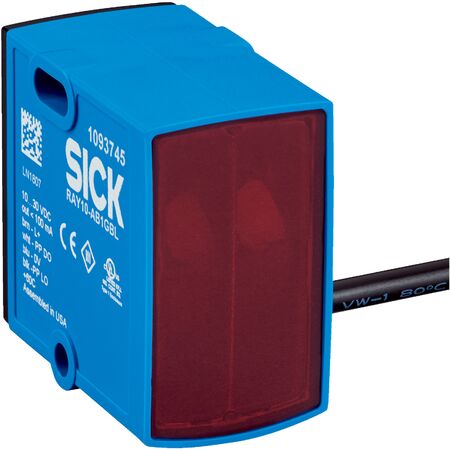

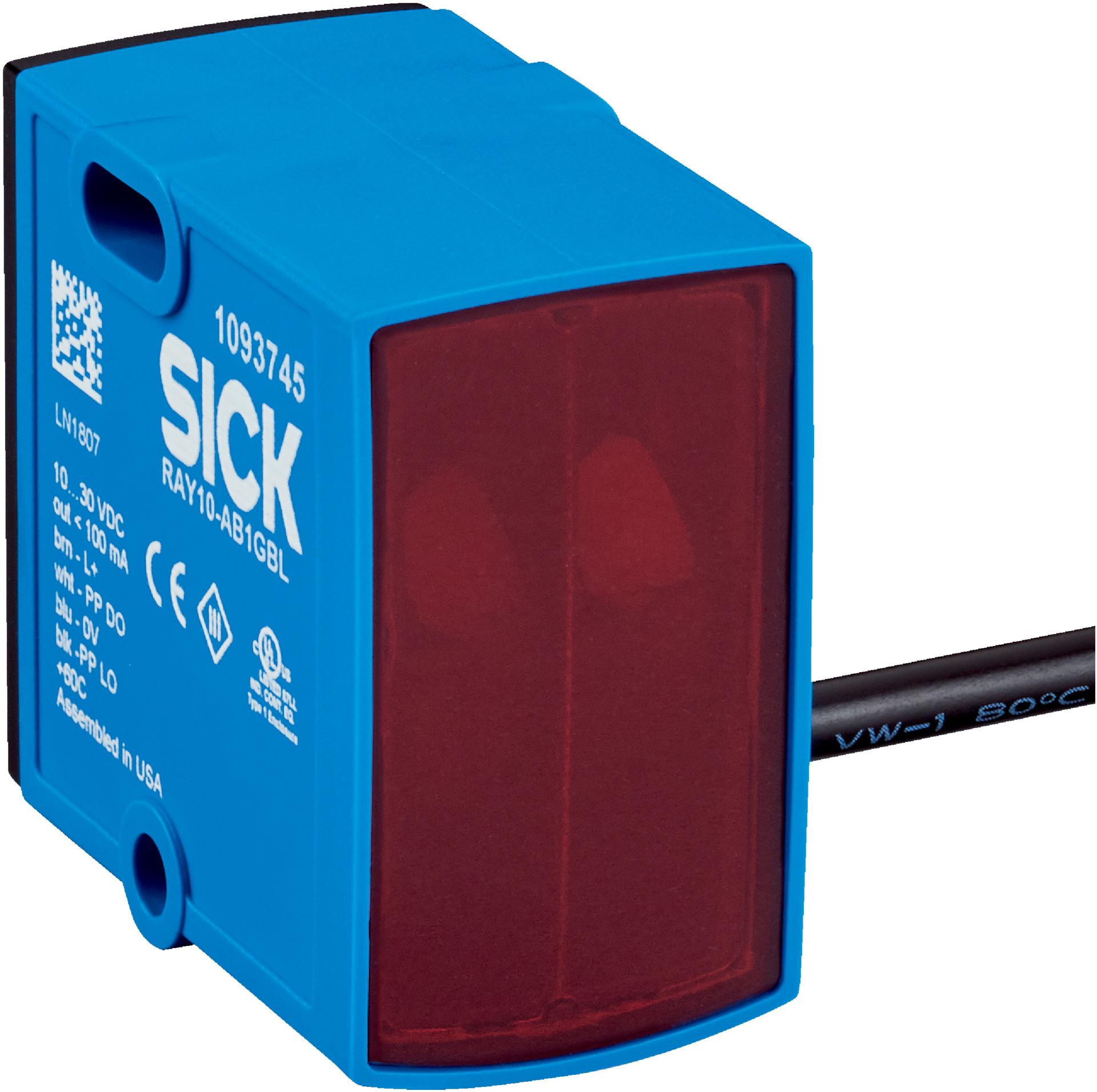

Photoelectric Retro-Reflective Sensor RAY10-AB1GBLA00 | Dual Lens System | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor RAY10-AB1GBLA00 features a dual lens system for precise object detection, with a minimum object size of 5 mm and a sensing range of up to 1.5 m. Designed for industrial automation, this sensor operates efficiently in harsh environments with an IP67 rating, ensuring reliable performance even in challenging conditions. Ideal for detecting transparent and shiny objects, it also supports IO-Link communication for advanced diagnostics and configuration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective with dual lens system
- Minimum object size: 5 mm
- Detection height: 25 mm
- Sensing range max.: 0 to 1.5 m
- Light source: PinPoint LED, wavelength 635 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: Push-pull PNP/NPN
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Smart tasks: Logic functions, timers, inverter, switching frequency modes
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Dimensions (H x L x W): 36mm x 37.7mm x 21.5mm
- Weight: 0.13 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Minimum object size detection of 5 mm
- Sensing range up to 1.5 m with visible red light (635 nm)
- PinPoint LED light source with 37 mm x 12 mm light spot at 1 m
- Potentiometer and IO-Link adjustment
- Push-pull PNP/NPN switching output with light/dark switching modes
- High switching frequency up to 1000 Hz and fast response time ≤ 0.5 ms
- Robust plastic ABS housing with IP67 enclosure rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Communication via IO-Link V1.1 with 2.3 ms cycle time
- Advanced smart tasks including logic and timer functions
- Diagnostic features including device status and contamination display
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with photoelectric sensors and IO-Link communication protocols to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Detection of transparent, perforated, uneven, shiny, and flat objects
- Position-independent detection within light array
- Use in harsh environments with IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
- Supports smart diagnostics to optimize maintenance and reduce downtime
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK RAY10-AB1GBLA00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
