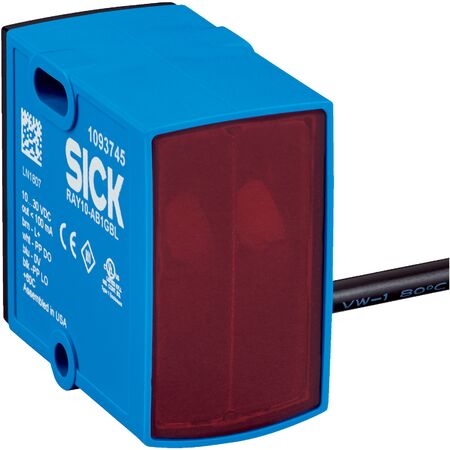

Photoelectric Retro-Reflective Sensor RAY10-AB4CBLA00 | Dual Lens System | IP67 Rated | by SICK

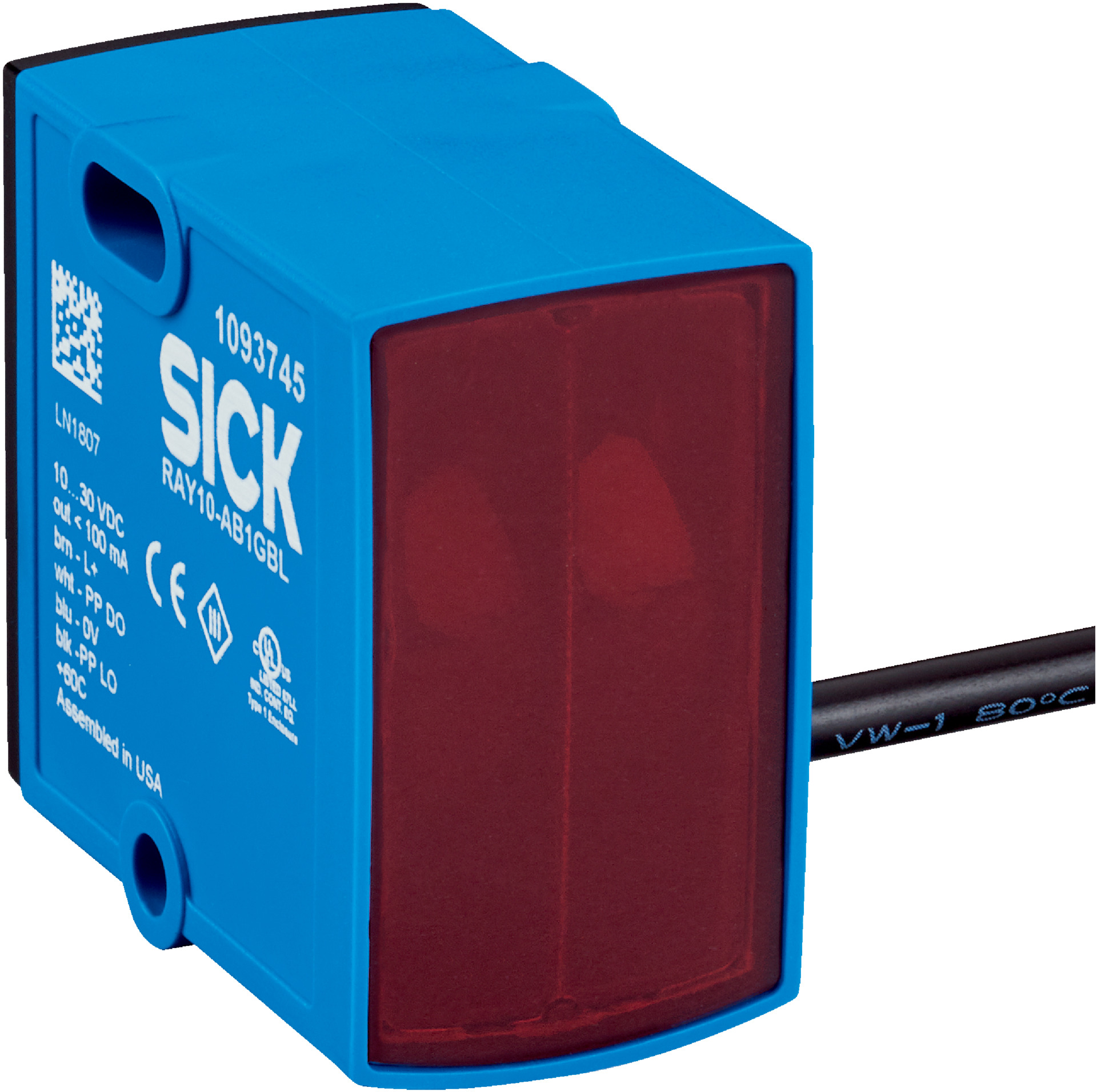

The Photoelectric Retro-Reflective Sensor RAY10-AB4CBLA00 features a dual lens system for precise object detection, with a sensing range of up to 1.5 m and a minimum object size of just 5 mm. Ideal for industrial automation, this sensor operates efficiently in harsh environments with an IP67 rating, ensuring reliable performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective with dual lens system
- Minimum object size: 5 mm
- Detection height: 25 mm
- Sensing range max.: 0 to 1.5 m
- Distance to reflector: 0.3 m to 1.5 m
- Light source: PinPoint LED, 635 nm wavelength
- Adjustment: Potentiometer, IO-Link
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: Push-pull PNP/NPN
- Output function: Configurable via IO-Link
- Switching frequency: 1000 Hz
- Response time: ≤ 0.5 ms
- Connection: Cable with M12 male connector, 4-pin, 300 mm
- Enclosure rating: IP67
- Operating temperature: -40 °C to +60 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Dimensions (H x L x W): 36mm x 38mm x 22mm
- Weight: 0.13 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Minimum object size detection of 5 mm
- Sensing range up to 1.5 m with distance to reflector 0.3 m to 1.5 m
- Visible red light source with 635 nm wavelength
- Potentiometer and IO-Link adjustment
- Push-pull PNP/NPN switching output with light/dark switching modes
- High switching frequency up to 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40 °C to +60 °C
- Cable with M12 male connector, 4-pin, 300 mm length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, wiring, and configuration via IO-Link for optimal performance.
Applications
- Industrial automation for object detection
- Detection of transparent, perforated, uneven, shiny, and flat objects
- Position-independent detection within light array
- Use in harsh environments requiring IP67 protection
