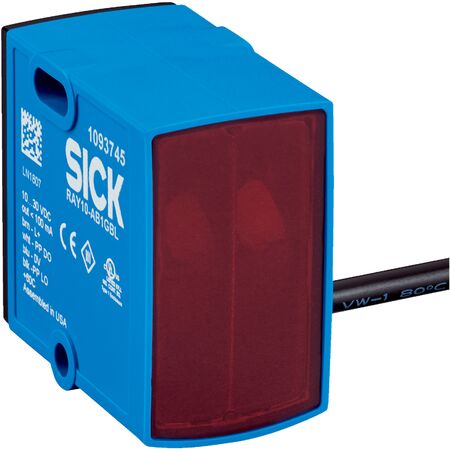

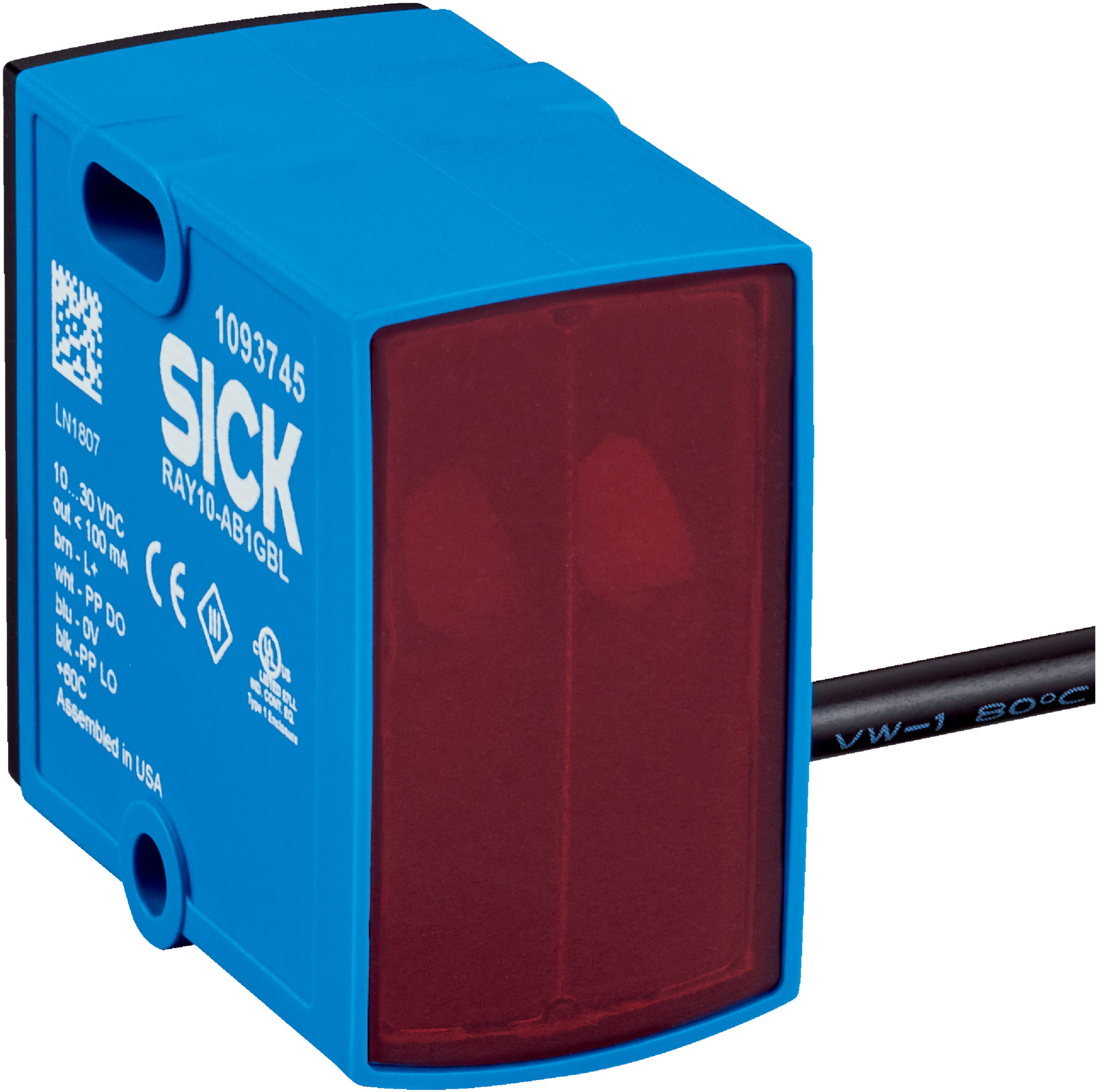

Photoelectric Retro-Reflective Sensor RAY10-AT4CBL | Dual Lens System | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor RAY10-AT4CBL features a dual lens system for precise object detection, with a minimum object size of 5 mm and a sensing range of up to 1.5 m. Ideal for industrial automation, this sensor operates efficiently in environments requiring IP67 protection, ensuring reliable performance even in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Minimum object size: 5 mm
- Detection height: 25 mm
- Sensing range max.: 0 to 1.5 m
- Distance sensor to reflector: 0.3 m to 1.5 m
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Adjustment: Potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 30 mA
- Switching output: Push-pull PNP/NPN
- Output function: Alarm/Health output (Pin 2)
- Switching mode: Light switching
- Signal voltage PNP HIGH/LOW: Approx. VS – 2.5 V / 0 V
- Signal voltage NPN HIGH/LOW: Approx. VS / < 2.5 V
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Cable with M12 male connector, 4-pin, 300 mm
- Cable material: Plastic, PVC
- Conductor cross section: 0.13 mm²
- Cable diameter: Ø 3.6 mm
- Circuit protection: A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Ambient operating temperature: -40 °C to +60 °C
- Ambient storage temperature: -40 °C to +70 °C
- UL File No.: NRKH.E189383 & NRKH7.E189383
- Dimensions (H x L x W): 36mm x 38mm x 22mm
- Weight: 0.13 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Minimum object size detection of 5 mm
- Sensing range up to 1.5 m with distance to reflector 0.3 m to 1.5 m
- Visible red light source with 635 nm wavelength
- Potentiometer adjustment for sensitivity
- Push-pull PNP/NPN switching output with alarm/health output
- High switching frequency of 1000 Hz and response time ≤ 0.5 ms
- Cable with M12 male connector, 4-pin, 300 mm length
- Robust plastic ABS housing with PMMA optics
- Enclosure rating IP67 for dust and water protection
- Wide ambient operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Detecting transparent, perforated, uneven, shiny, and flat objects
- Position-independent detection within light array
- Use in environments requiring IP67 rated sensors
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces need for frequent replacements
- Long mission time of 20 years reduces electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK RAY10-AT4CBL Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
