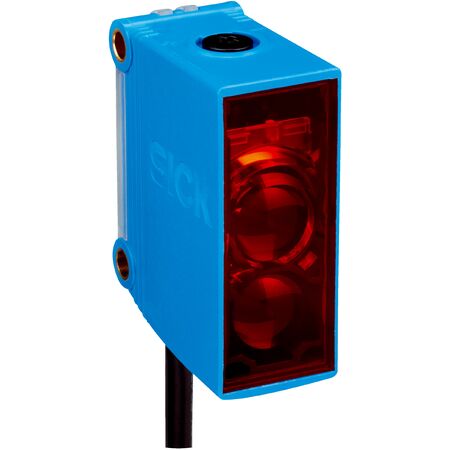

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor GL10-F7431S08 features a dual lens system for precise object detection, with a sensing range of 0.3 m to 14 m and a fast response time of ≤ 1 ms. Ideal for industrial automation and safety applications, this sensor operates in a wide temperature range from –30 °C to +60 °C and is housed in a robust IP67 rated enclosure, ensuring durability and reliability in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.15 m to 17 m
- Sensing range: 0.3 m to 14 m
- Type of light: Visible red light, wavelength 625 nm
- Light spot size at 5 m: Ø 58 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 400 Hz
- Connection type: Cable with M12 male connector, 4-pin, 300 mm
- Cable material: Plastic, PVC
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Electromagnetic compatibility: EN 60947-5-2
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- UL File No.: NRKH.E348498 & NRKH7.E348498
- Photobiological safety certified (DIN EN 62471)
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Adjustable potentiometer with 270° rotation
- Light/dark switching mode with complementary PNP output
- High switching frequency of 400 Hz and fast response time ≤ 1 ms
- Polarizing filter included to reduce false triggering
- Robust plastic ABS/PMMA housing with IP67 enclosure rating
- Wide ambient operating temperature range from –30 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Safety and security systems
- Material handling and conveyor systems
- Manufacturing process control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GL10-F7431S08 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
