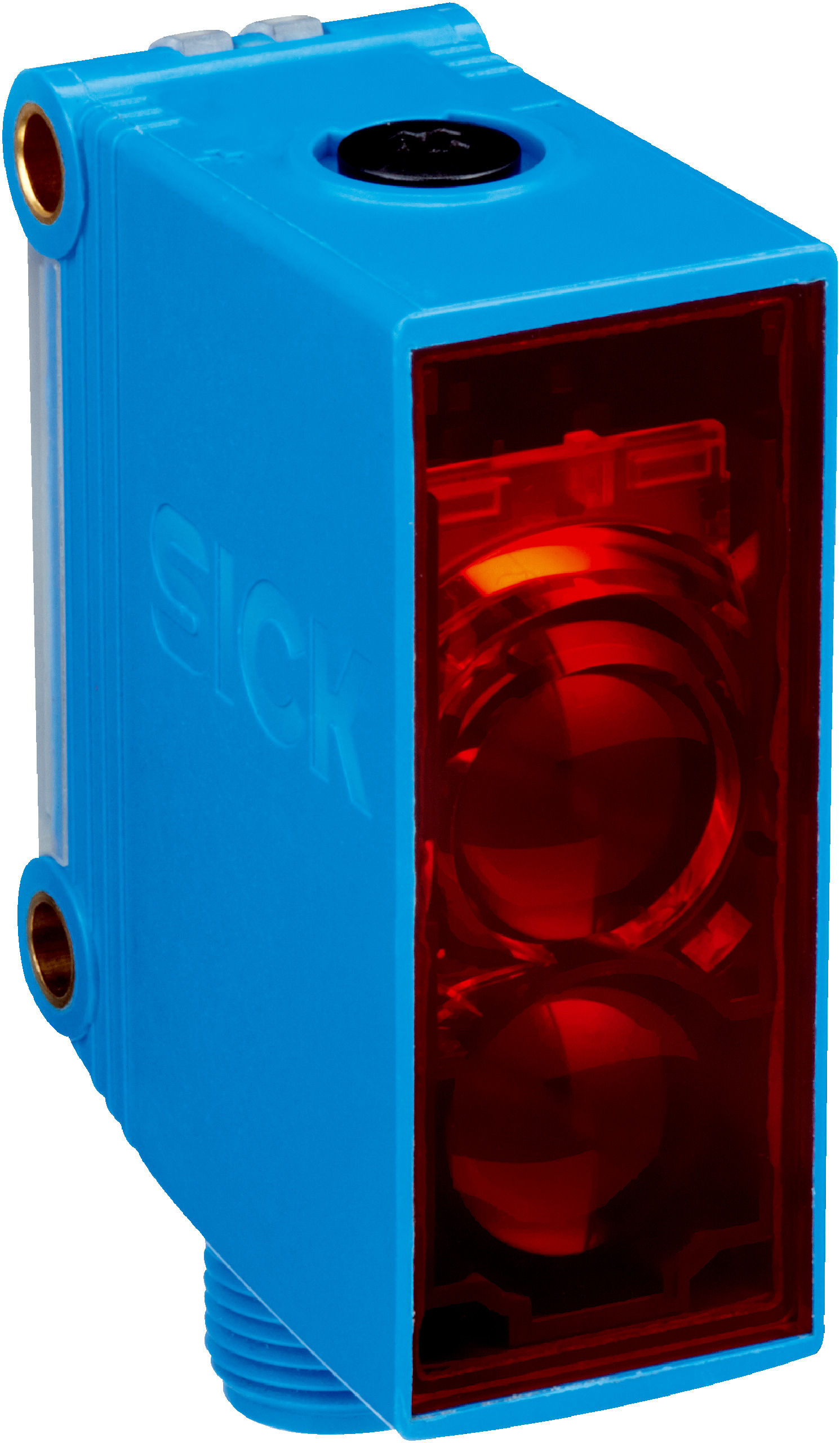

Photoelectric Retro-Reflective Sensor GL10-F4633S12 | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor GL10-F4633S12 is designed for industrial automation, featuring a dual lens system for precise object detection. With a sensing range of 0.15 m to 17 m and a fast response time of ≤ 1,250 µs, it ensures reliable performance in safety and monitoring applications. The IP67 rated enclosure provides excellent dust and water protection, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.15 m to 17 m
- Light source: PinPoint LED, wavelength 625 nm
- Light spot size at 5 m: Ø 58 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 1,250 µs
- Switching frequency: 400 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- Ambient operating temperature: –30 °C to +60 °C
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Adjustable potentiometer with 270° rotation
- High switching frequency of 400 Hz and fast response time ≤ 1,250 µs
- IP67 rated enclosure for dust and water protection
- Polarizing filter included to reduce false triggering
- Wide ambient operating temperature range from –30 °C to +60 °C
- Complementary PNP switching output with light/dark switching mode
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL10-F4633S12 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
