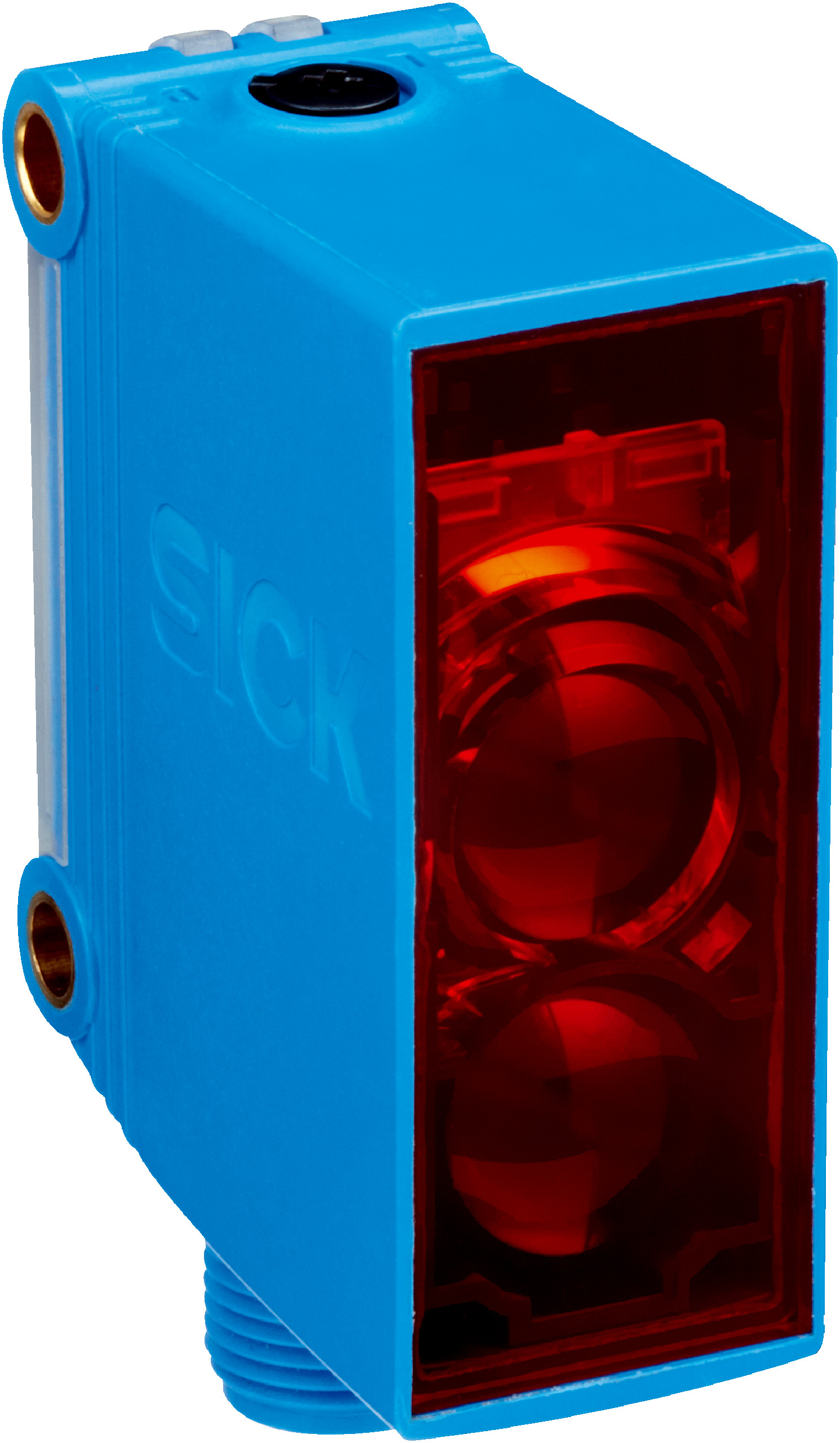

Photoelectric Retro-Reflective Sensor GL10-P4101P15 | Dual Lens System | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor GL10-P4101P15 features a dual lens system and a PinPoint LED light source, making it ideal for industrial automation and object detection. With a sensing range of 0.2 m to 6 m and an IP67 rated enclosure, it ensures high functional reliability even on foil-wrapped objects. Perfect for environments requiring precision and durability, this sensor operates efficiently in temperatures from -30 °C to +60 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.1 m to 8 m
- Sensing range: 0.2 m to 6 m
- Light source: PinPoint LED, wavelength 625 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark selectable
- Response time: ≤ 2.5 ms
- Switching frequency: 200 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- EMC standard: EN 60947-5-2
- Certifications: cULus, China-RoHS, Photobiological safety (DIN EN 62471)
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Visible red light with PinPoint LED light source
- High functional reliability on foil-wrapped objects
- Selectable light/dark switching mode
- Polarizing filter included
- IP67 rated enclosure for dust and water protection
- Operating temperature range from –30 °C to +60 °C
- Response time ≤ 2.5 ms and switching frequency 200 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Detecting objects wrapped in film
- Use in environments requiring high functional reliability on foil-wrapped objects
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL10-P4101P15 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
