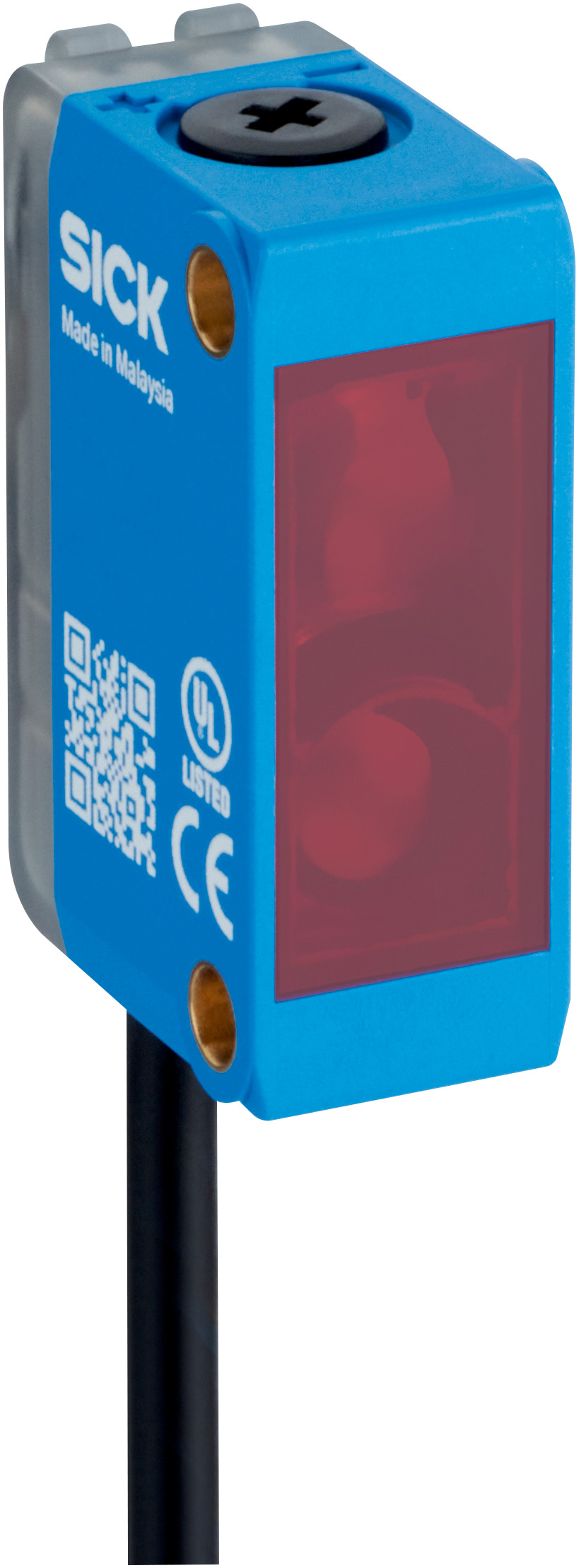

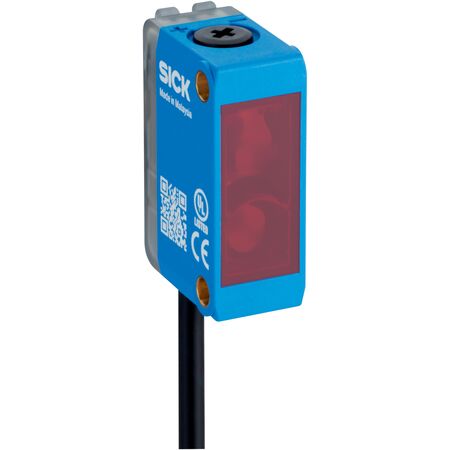

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | by SICK
The photoelectric retro-reflective sensor GLD6SP-1GA1217EZZZ features a dual lens system and a sensing range of 0.03 m to 6 m, making it ideal for industrial automation and object detection. With a fast response time of ≤ 625 µs and an IP67 rating for dust and water resistance, this sensor is built for reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective with dual lens system
- Sensing range: 0.03 m to 6 m; recommended 0.25 m to 1.6 m
- Light source: PinPoint LED, visible red light, 640 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Output: 1 PNP digital output, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection: Reverse polarity, overcurrent, short-circuit
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Housing material: Plastic ABS with PMMA front screen
- Cable: 3-wire, 2 m length, PVC insulated
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0.03 m to 6 m with recommended range 0.25 m to 1.6 m
- PinPoint LED visible red light with 640 nm wavelength
- Polarisation filter included
- LED indicators for power and object detection status
- Potentiometer for sensing range adjustment and operating mode switch for light/dark switching
- High switching frequency of 1000 Hz and fast response time ≤ 625 µs
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Wide ambient operating temperature range from -30 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and presence detection in machinery
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable IP67 housing reduces need for frequent replacements
- Low power consumption (≤ 20 mA) minimizes energy use
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GLD6SP-1GA1217EZZZ photoelectric retro-reflective sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
