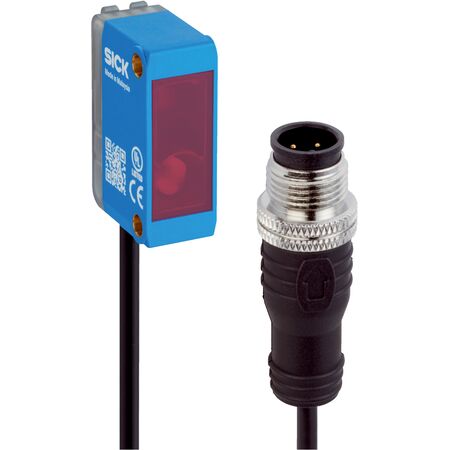

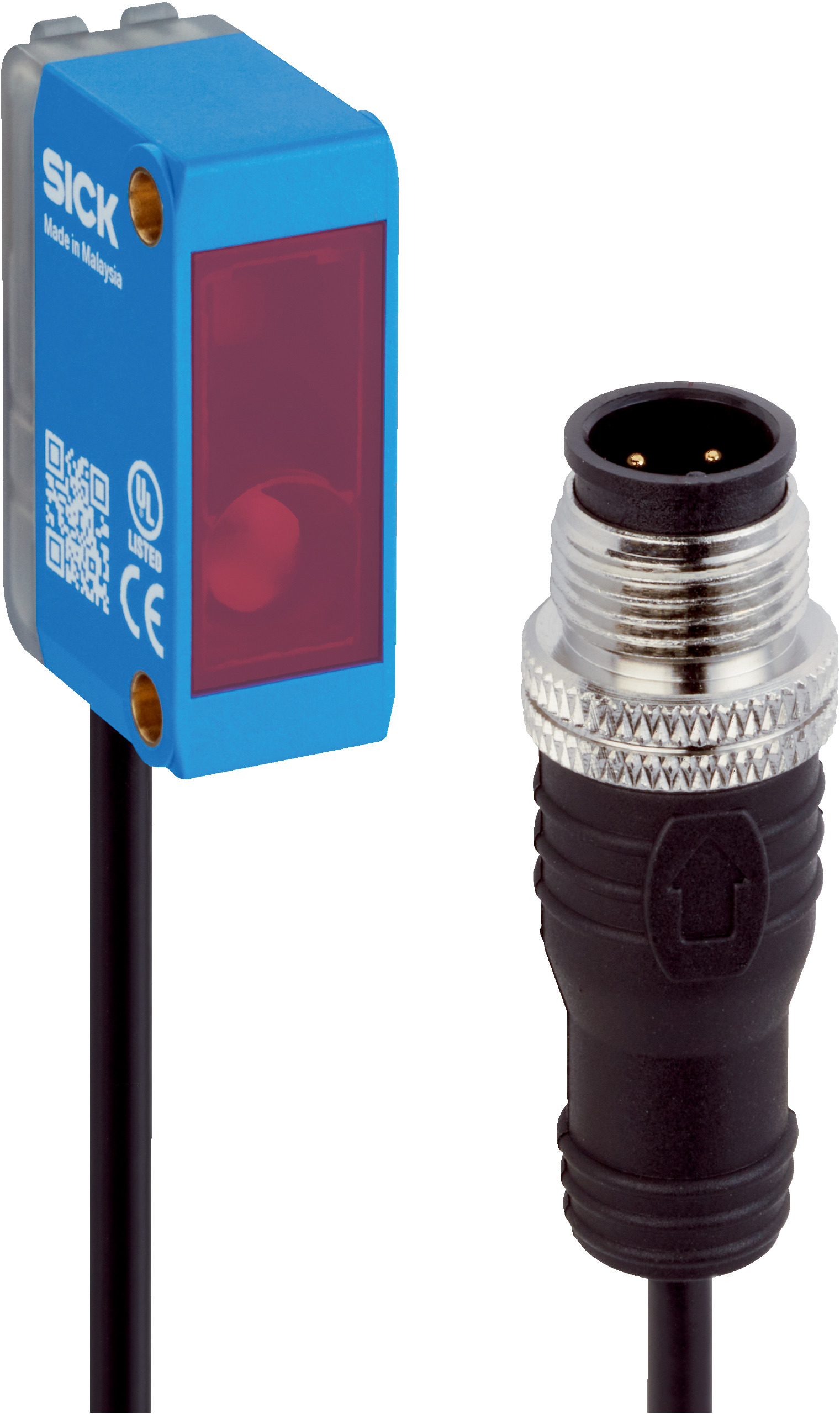

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor GLD6SP-34A121A0ZZZ features a dual lens system for enhanced object detection, with a sensing range of 0.03 m to 6 m and a fast response time of ≤ 625 µs. Ideal for industrial automation and safety applications, this sensor is IP67 rated for dust and water protection, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Output type: 1 PNP digital output, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Cable with M12 male connector, 4-pin, 348 mm length
- Housing material: Plastic ABS
- Front screen: Plastic PMMA
- Cable material: PVC
- Male connector: Metal copper alloy
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0.03 m to 6 m with recommended range 0.25 m to 1.6 m
- PinPoint LED visible red light with 640 nm wavelength
- LED indicators for power and object detection status
- High switching frequency of 1000 Hz and fast response time ≤ 625 µs
- IP67 rated enclosure for dust and water protection
- Robust against sunlight up to 30,000 lx and vibration/shock resistant
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK GLD6SP-34A121A0ZZZ sensor is available for immediate purchase, ideal for industrial automation and safety applications.
