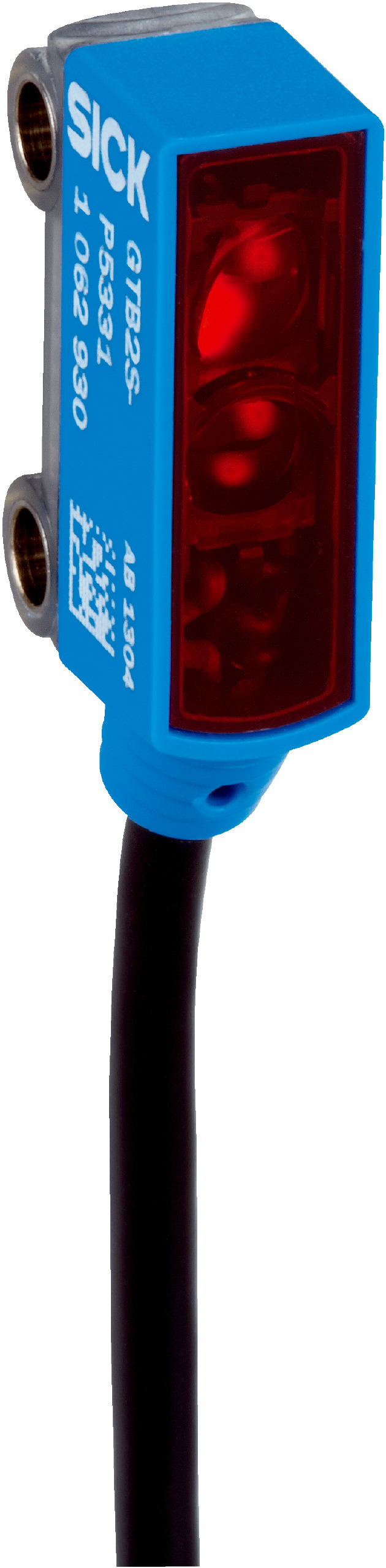

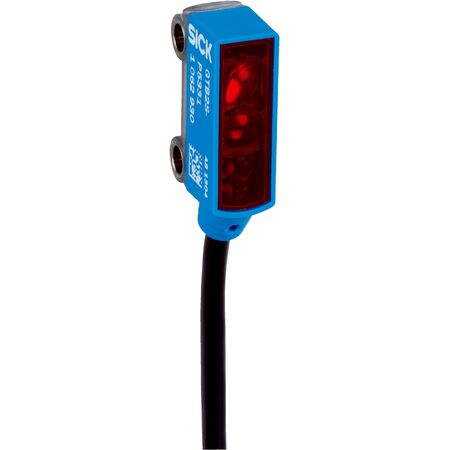

Photoelectric Retro-Reflective Sensor GL2S-P0311S24 | IP67 Rated | Fast Response Time | Dual Lens System | by SICK
The Photoelectric Retro-Reflective Sensor GL2S-P0311S24 is designed for industrial automation, featuring a dual lens system and a sensing range of 0.03 m to 2.5 m. With a fast response time of under 0.6 ms and an IP67 enclosure rating, it ensures reliable object detection and safety monitoring in manufacturing processes. Ideal for material handling and packaging systems, this sensor is built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.03 m to 2.5 m
- Light source: PinPoint LED, visible red light at 640 nm wavelength
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Connection: Cable with Tyco male connector, 3-pin, 1.26 m length
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -30 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Weight: 25 g
- Polarisation filter included
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range from 0.03 m to 2.5 m
- Rectangular housing design with IP67 enclosure rating
- Fast response time under 0.6 ms and switching frequency of 800 Hz
- Polarisation filter included for reliable detection
- Cable with Tyco male connector, 3-pin, 1.26 m length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL2S-P0311S24 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
