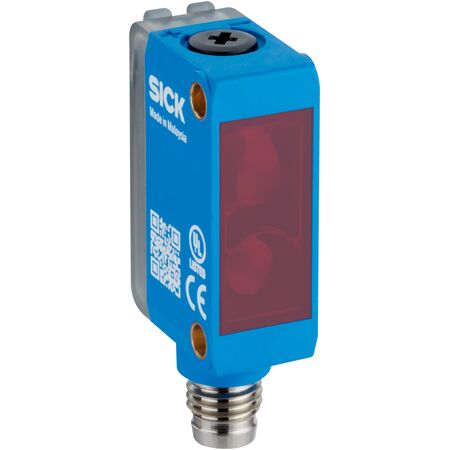

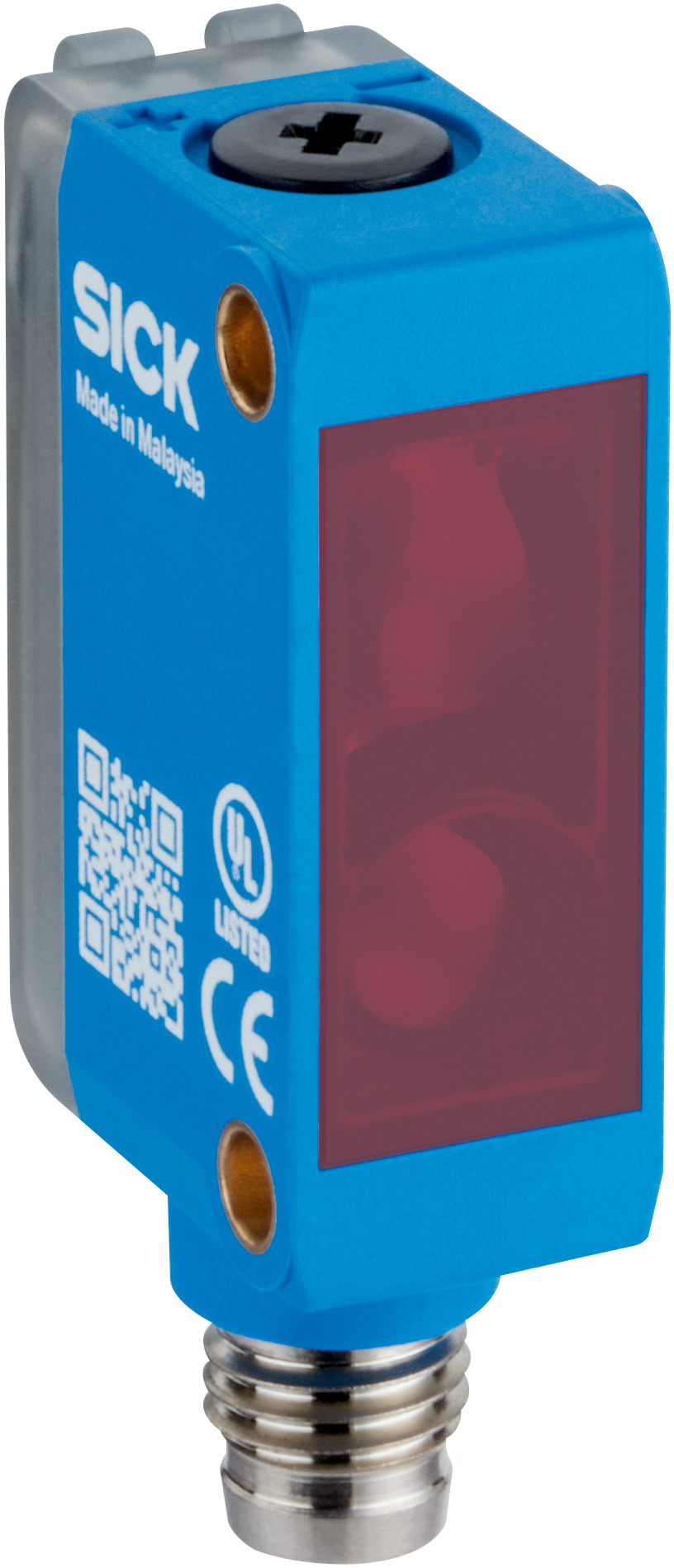

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor GLD6SP-21E1217EZZZ features a dual lens system and a sensing range of 0.03 m to 6 m, making it ideal for industrial automation and object detection. With a fast response time of ≤ 625 µs and IP67 protection, this sensor is built for reliability in harsh environments, ensuring optimal performance in manufacturing process control and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.03 m to 6 m; recommended 0.25 m to 1.6 m
- Light source: PinPoint LED, visible red light, 640 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Output type: 1 NPN open collector, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection: Reverse polarity, overcurrent, short-circuit
- Housing material: Plastic ABS; front screen PMMA
- Connection: M8, 3-pin connector
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 11 ms, 18 shocks total
- Vibration resistance: 10 Hz to 55 Hz, amplitude 0.5 mm
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0.03 m to 6 m with recommended range 0.25 m to 1.6 m
- PinPoint LED visible red light with 640 nm wavelength
- Polarisation filter included
- LED indicators for power and object detection status
- Potentiometer for sensing range adjustment and operating mode switch for light/dark switching
- High switching frequency up to 1000 Hz and fast response time ≤ 625 µs
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Robust plastic ABS housing with IP67 rating for harsh environments
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GLD6SP-21E1217EZZZ Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
