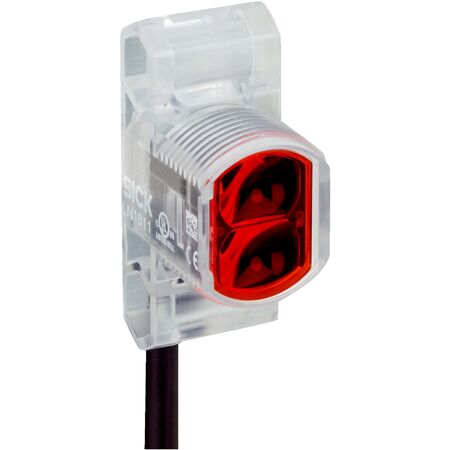

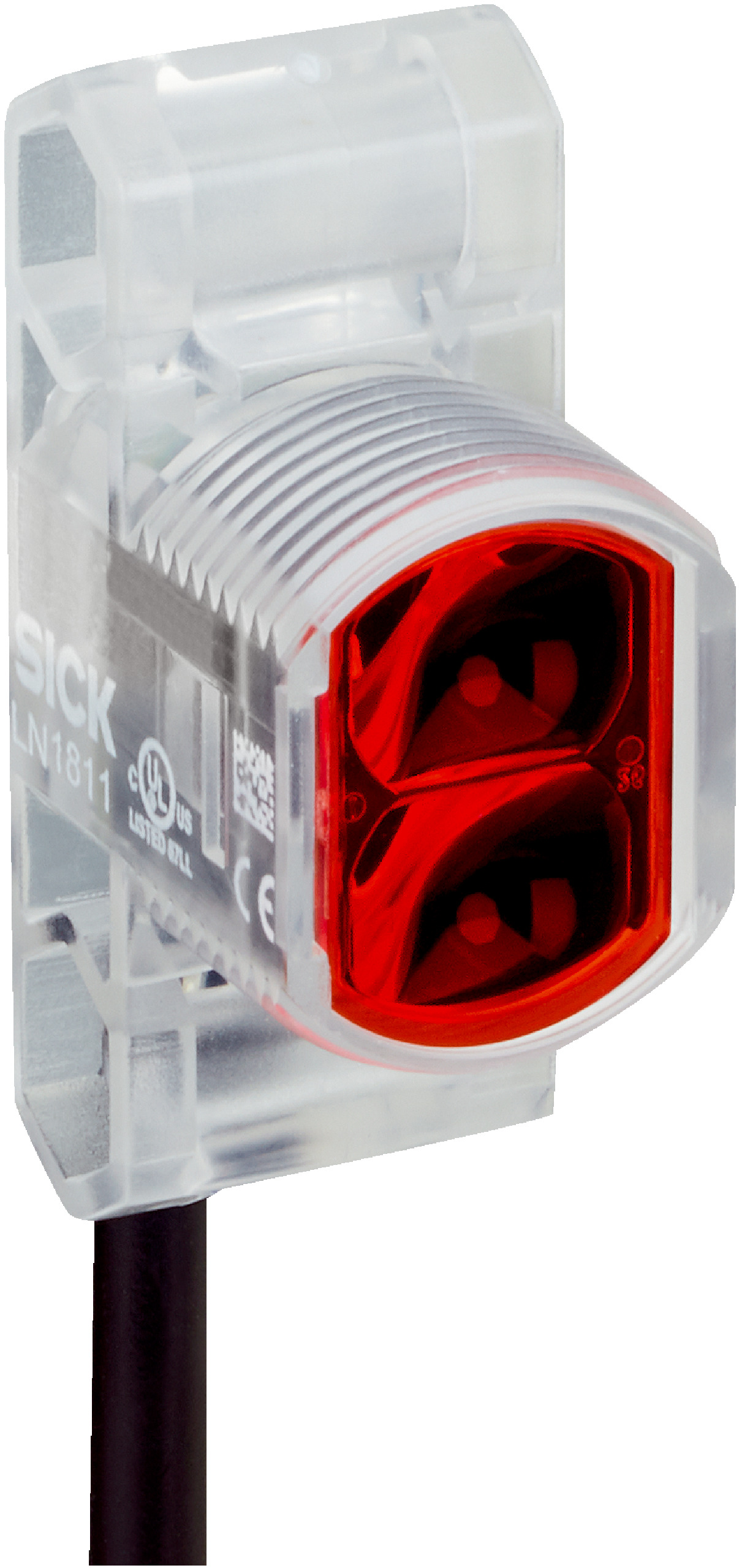

Photoelectric Retro-Reflective Sensor ZLD18-BHZ3G2 | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The ZLD18-BHZ3G2 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for precise object detection up to 6.8 m. With a fast response time of ≤ 500 µs and an IP67 rating for dust and water protection, this sensor is perfect for manufacturing process control and safety systems. Its visible red light source ensures reliable performance in various applications, making it an essential tool for any industrial setup.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0 m to 6.8 m (max 7.8 m)
- Light source: PinPoint LED, visible red light, wavelength 625 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, light switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: Cable with M8 male connector, 4-pin, 2 m length
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Protection class: III, Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Weight: 4.54 g
- Dimensions (H x L x W): 35mm x 22mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range up to 6.8 m, max 7.8 m
- Hybrid housing design with transparent color
- M18 mounting system for head or side mounting
- Fast response time ≤ 500 µs and high switching frequency up to 1,000 kHz
- IP67 rated enclosure for dust and water protection
- Polarisation filter included to reduce interference
- Wide ambient operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems requiring precise sensing
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZLD18-BHZ3G2 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
