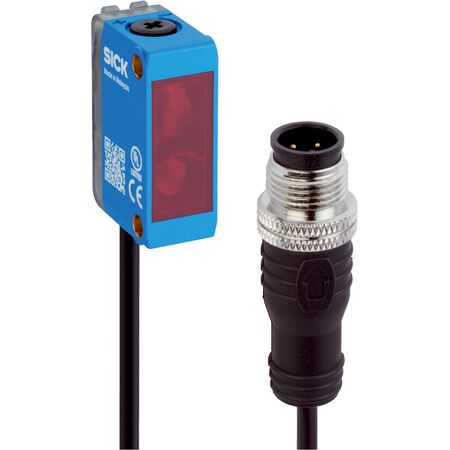

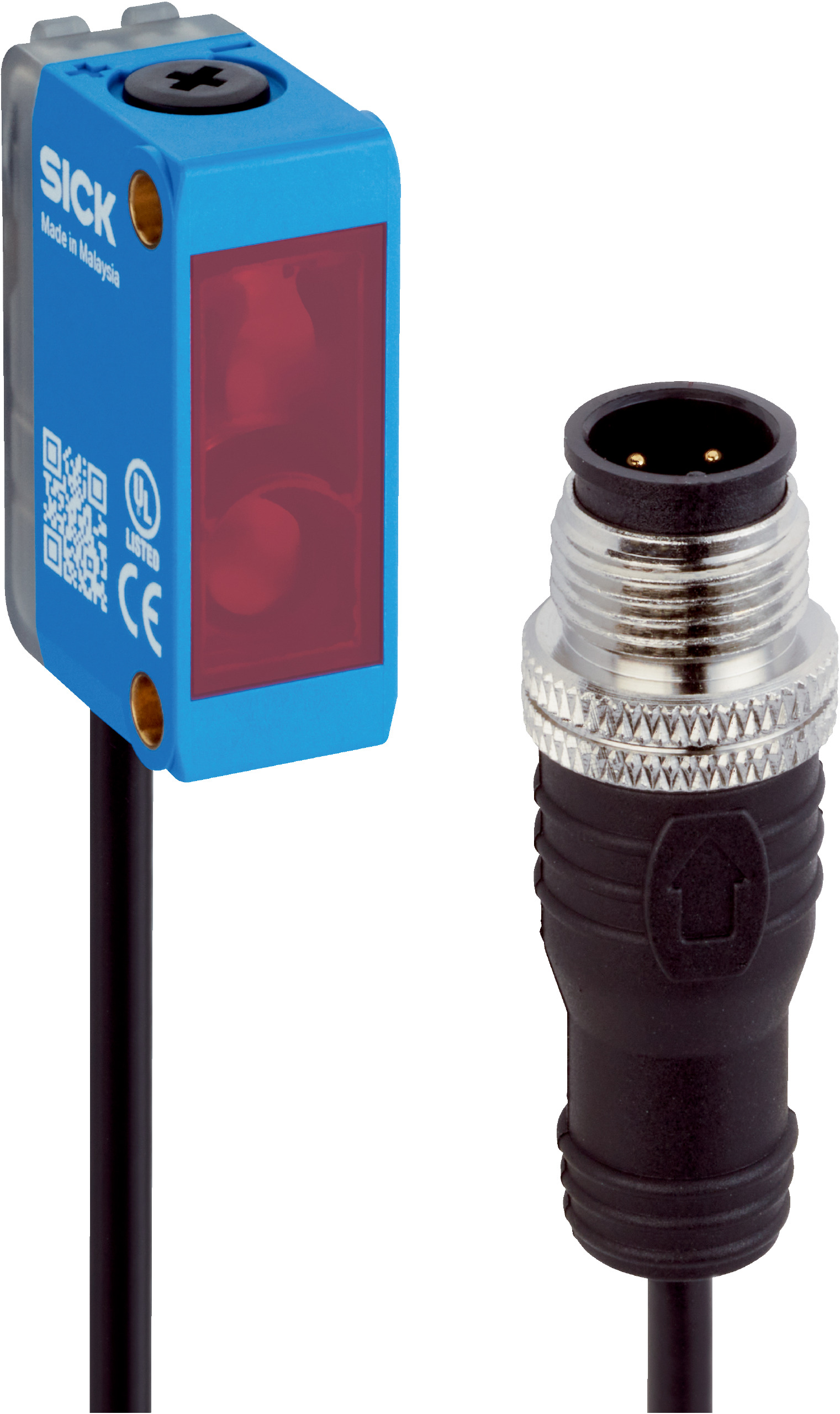

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor GLD6SP-34E1217EZZZ features a dual lens system and a sensing range of 0.03 m to 6 m, making it ideal for industrial automation and object detection. With a robust IP67 rating for dust and water protection, this sensor operates efficiently in temperatures from -30 °C to +55 °C, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.03 m to 6 m, recommended 0.25 m to 1.6 m
- Light source: PinPoint LED, visible red light, 640 nm wavelength
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Output type: 1 x NPN open collector, light switching
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Cable: 4-pin M12 male connector, 348 mm length
- Housing material: Plastic ABS, front screen PMMA
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Sensing range from 0.03 m to 6 m with recommended range 0.25 m to 1.6 m
- PinPoint LED visible red light with 640 nm wavelength
- Polarisation filter included
- LED indicators for power and object detection status
- Potentiometer for sensing range adjustment and operating mode switch for light/dark switching
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -30 °C to +55 °C
- Cable with M12 male connector, 4-pin, 348 mm length
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GLD6SP-34E1217EZZZ photoelectric retro-reflective sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
