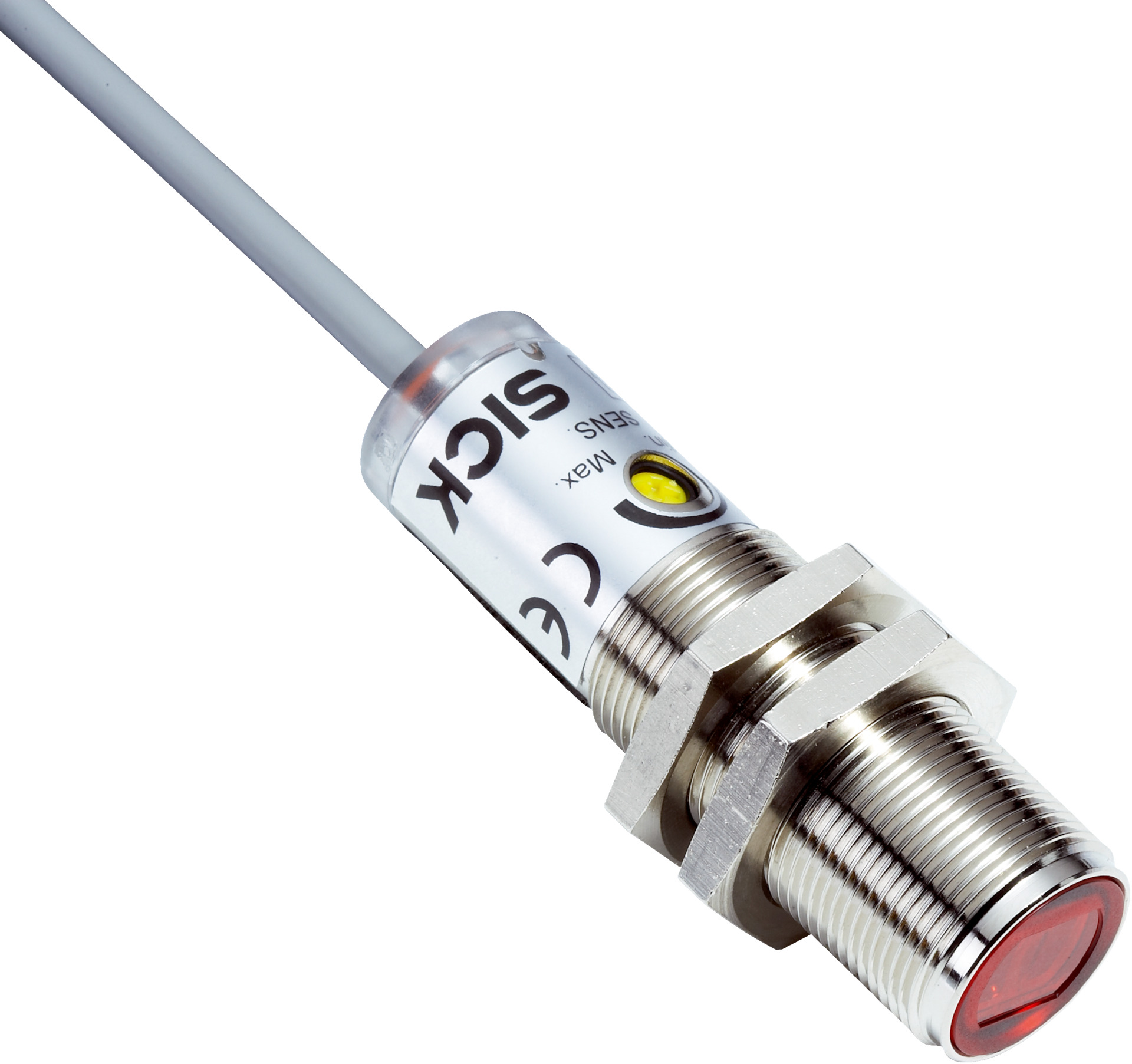

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor VL180-2P41162 features a dual lens system for precise object detection, with a sensing range of 0.05 m to 7 m. Ideal for industrial automation and safety monitoring, this sensor operates with an infrared LED light source and offers a fast response time of ≤ 0.5 ms. Its robust IP67-rated housing ensures durability in harsh environments, making it perfect for manufacturing and packaging applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max.: 0.05 m to 7 m
- Light source: Infrared LED, 920 nm wavelength
- Adjustment: Potentiometer, 270° sensitivity
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 18mm x 63mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.05 m to 7 m
- Infrared LED light source with 920 nm wavelength
- Potentiometer adjustment with 270° sensitivity control
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Robust metal housing with nickel-plated brass and PC, IP67 rated for dust and water protection
- Includes reflector P250 and fastening nuts
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Long service life minimizes electronic waste
- Robust IP67 housing extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VL180-2P41162 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
