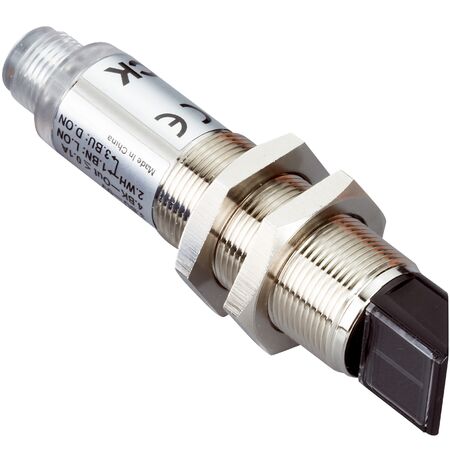

Photoelectric Retro-Reflective Sensor VL180-2P42464 | Dual Lens System | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor VL180-2P42464 features a dual lens system for precise object detection, with a sensing range of 0.05 m to 5.5 m. Designed for industrial automation, this sensor operates with an infrared LED light source and offers a fast response time of ≤ 0.5 ms. Its robust IP67-rated housing ensures durability in harsh environments, making it ideal for safety and monitoring applications in manufacturing and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.05 m to 4.5 m (max 5.5 m)
- Light source: Infrared LED, 920 nm wavelength
- Adjustment: Potentiometer, 270° sensitivity
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Metal (nickel-plated brass) and PC
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 18mm x 84.2mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.05 m to 5.5 m
- Infrared LED light source with 920 nm wavelength
- Potentiometer adjustment with 270° sensitivity control
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Robust metal housing with nickel-plated brass and PC, IP67 rated for dust and water protection
- Polarisation filter included to reduce false triggering
- Male M12 4-pin connector for easy installation
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Long service life minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VL180-2P42464 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
