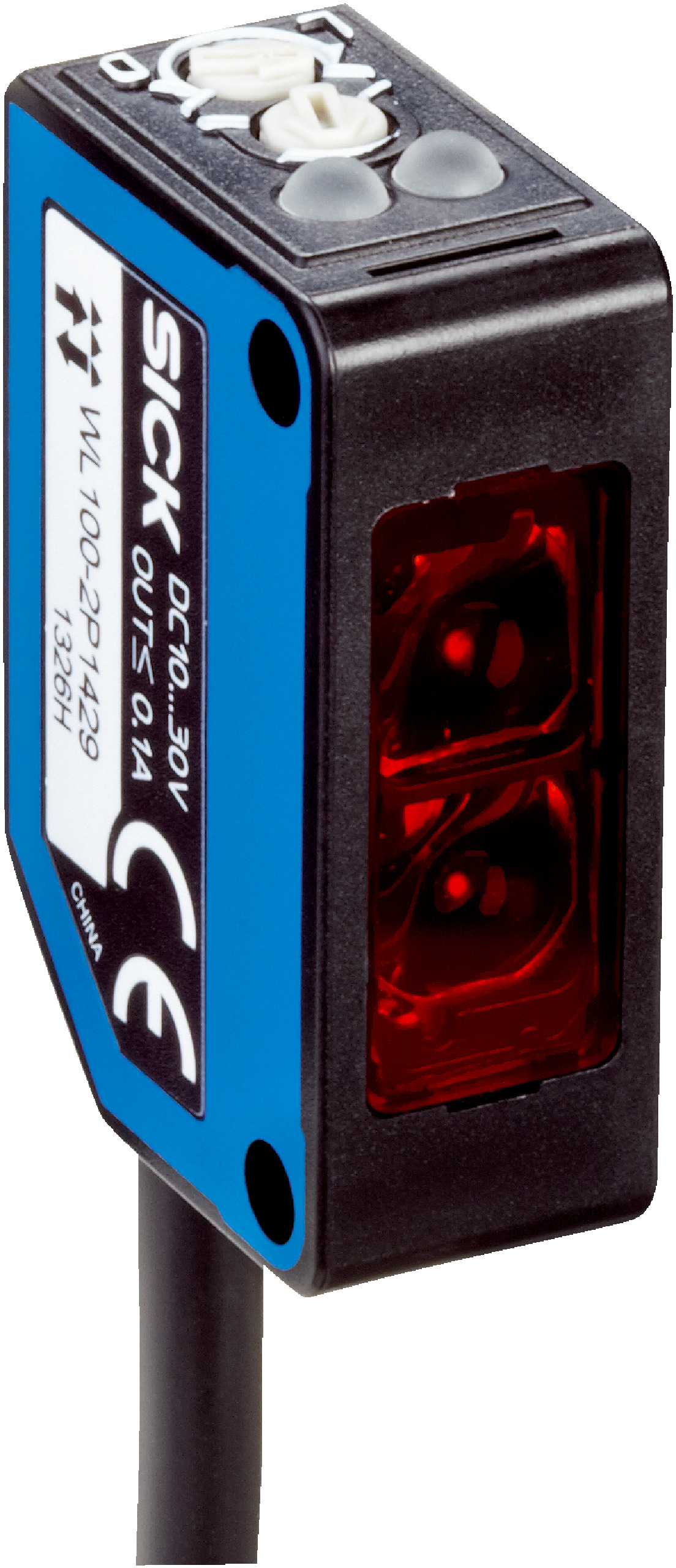

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | Adjustable Sensitivity | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for precise object detection up to 5.5 m. With a visible red LED light and adjustable sensitivity, it’s perfect for manufacturing process control and safety systems. Its IP67 rating ensures durability in harsh environments, making it an ideal choice for material handling and packaging applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.01 m to 5.5 m (max 7.2 m)
- Light source: Visible red LED, wavelength 632 nm
- Adjustment: Potentiometer for sensitivity
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN transistor
- Switching mode: Light/dark selectable via rotary switch
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 3-wire cable, 2 m length, PVC insulation
- Housing material: Plastic ABS/PC/POM
- Optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Polarisation filter included
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 632 nm
- Adjustable sensitivity via potentiometer
- Selectable light/dark switching mode
- High switching frequency of 1,000 Hz
- Compact rectangular housing design
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

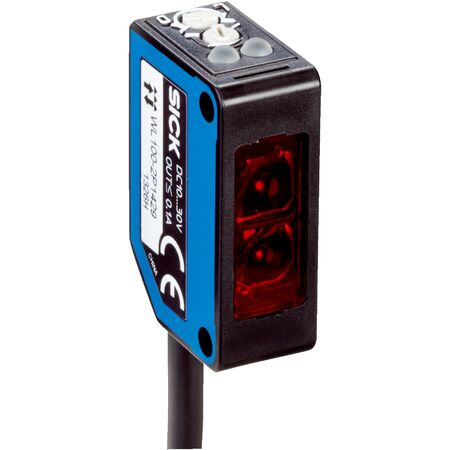

The SICK WL100-2N1432S06 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
