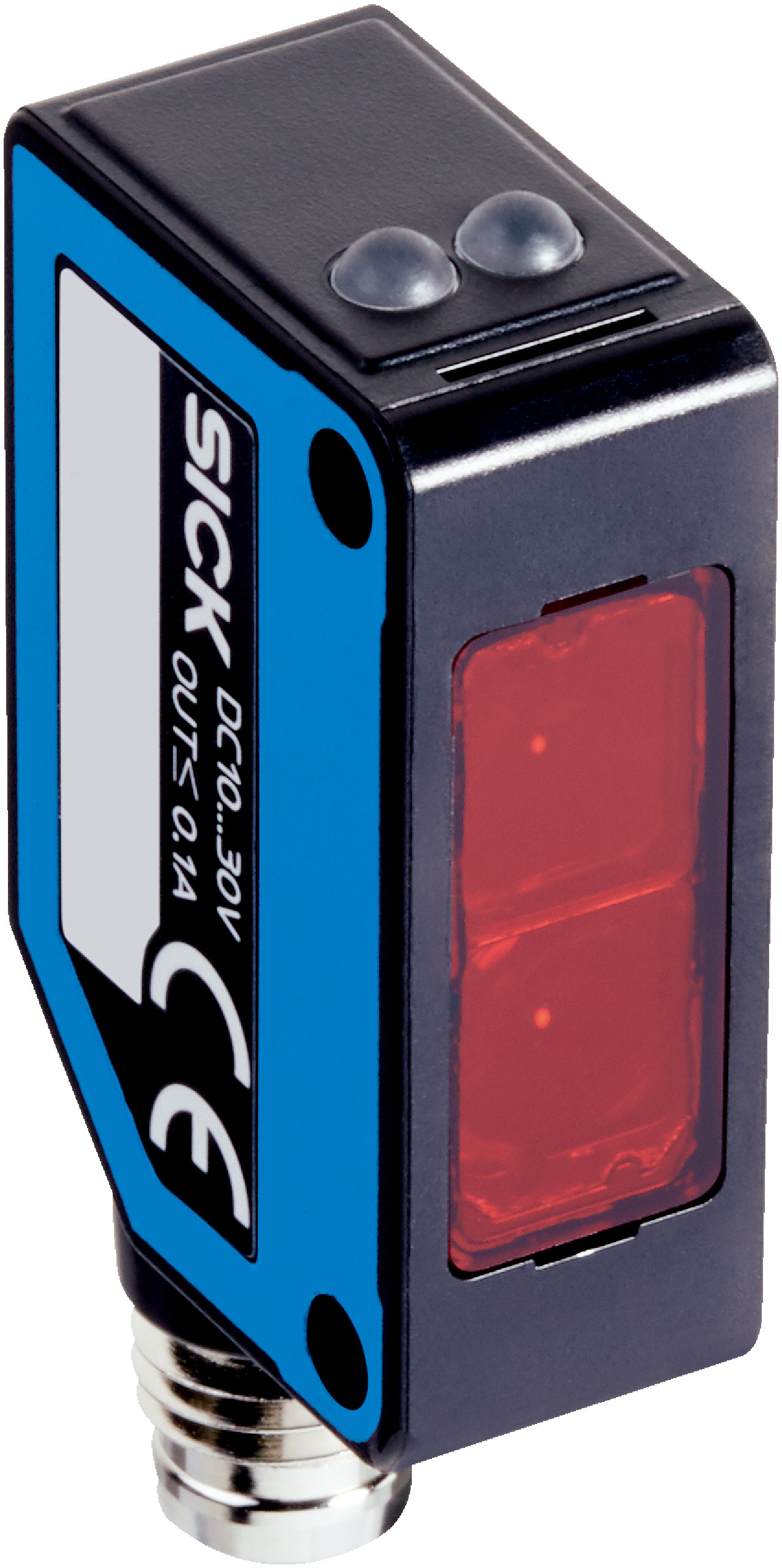

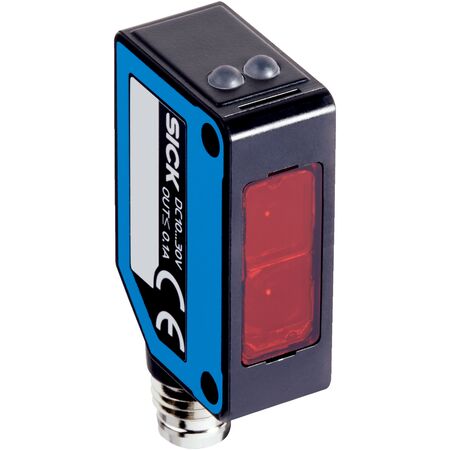

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL100-2P4239S09 features a dual lens system for precise object detection, with a sensing range of up to 5 m. Designed for industrial automation, this sensor operates efficiently in temperatures from -25°C to +55°C and is IP67 rated for dust and water protection, making it ideal for safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.01 m to 5 m (max 6.3 m)
- Light source: Visible red LED, wavelength 632 nm
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, dark switching mode selectable via cable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.25 ms
- Switching frequency: 2000 Hz
- Connection type: Male connector M8, 4-pin
- Protection class: III
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Polarisation filter and special device features included
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 632 nm
- Selectable switching type via cable with higher switching frequency
- Compact rectangular housing design
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
- Male connector M8, 4-pin connection type
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK WL100-2P4239S09 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
