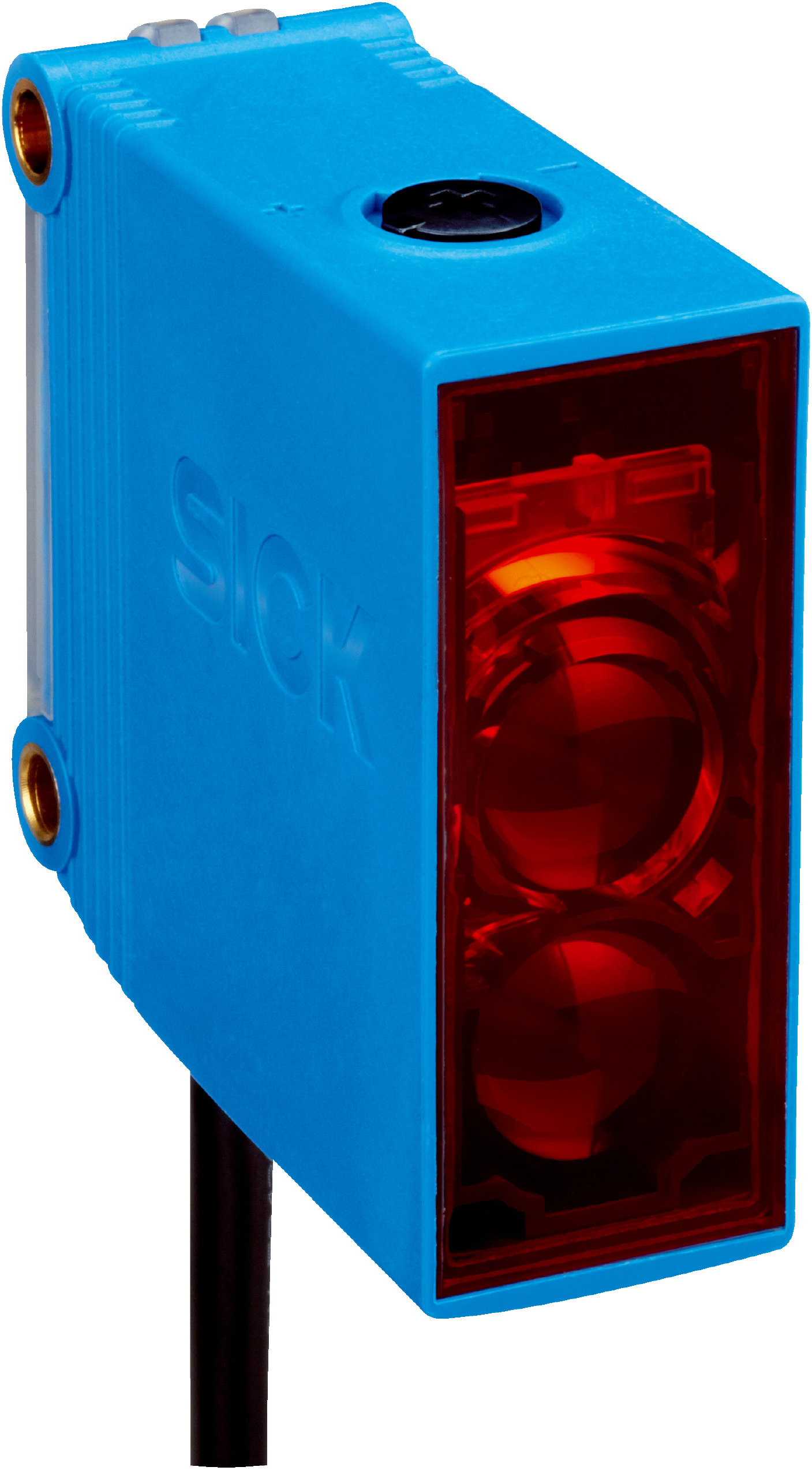

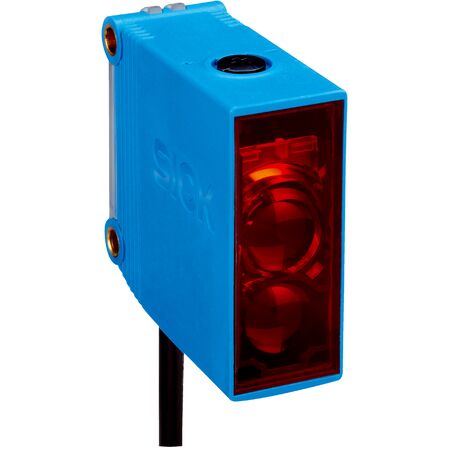

Photoelectric Retro-Reflective Sensor | Dual Lens System | IP67 Rated | Visible Red Light | by SICK
The Photoelectric Retro-Reflective Sensor GL10-03811S01 features a dual lens system for precise object detection, with a sensing range of 0.08 m to 15 m. Designed for industrial automation, this sensor operates in harsh environments with an IP67 rating and a wide temperature range of -30°C to +60°C, making it ideal for safety and monitoring applications in manufacturing and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.08 m to 15 m
- Type of light: Visible red light, wavelength 625 nm
- Light source: PinPoint LED
- Light spot size at 5 m: Ø 58 mm
- Adjustment: Potentiometer, 270°
- Supply voltage: 12 V DC to 30 V DC
- Current consumption: 40 mA
- Switching output: Relay, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Switching load max: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection type: 5-wire cable, 2 m length
- Cable material: Plastic, PVC
- Protection class: II
- Enclosure rating: IP67
- Relay switching cycles min: 100,000 cycles (3 A)
- Usage category: DC-13 and AC-15 according to EN 60947-1
- Electromagnetic compatibility: EN 60947-5-2, EN 61000-6-3
- Ambient operating temperature: -30 °C to +60 °C
- Ambient storage temperature: -40 °C to +70 °C
- Housing material: Plastic, ABS/PMMA
- Polarizing filter included
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.115 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Adjustable potentiometer with 270° rotation
- High protection rating of IP67 for harsh environments
- Relay output with SPDT electrically isolated switching
- Polarizing filter included to reduce interference
- Wide operating temperature range from -30°C to +60°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing reduces waste through extended product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK GL10-03811S01 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
