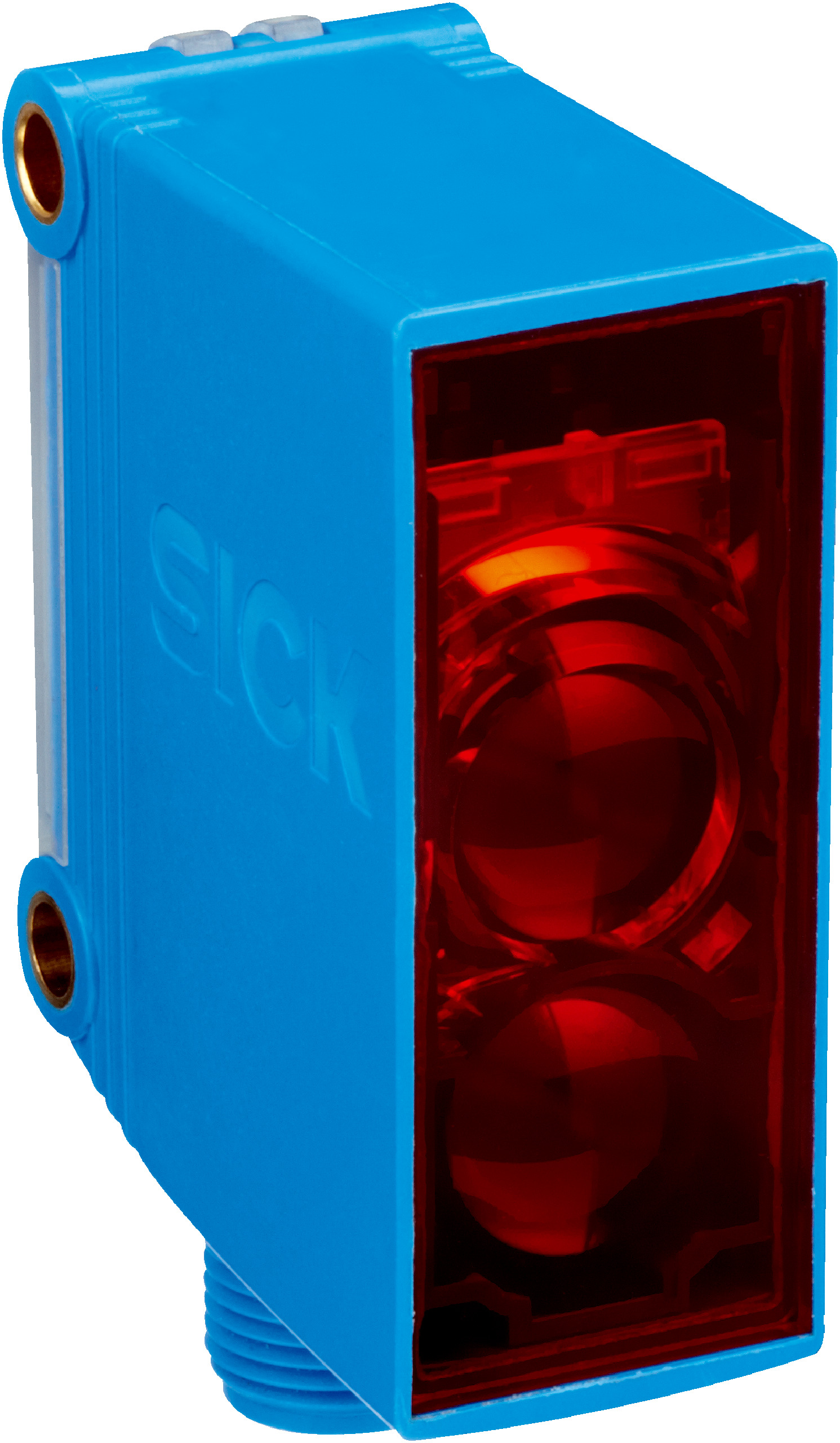

Photoelectric Retro-Reflective Sensor GL10-F4551P05 | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor GL10-F4551P05 is designed for industrial automation and object detection, featuring a dual lens system for precise detection and a fast response time of ≤ 1 ms. With an IP67 enclosure rating, it ensures high functional reliability even in challenging environments, making it ideal for detecting objects wrapped in film and other applications requiring accuracy.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.15 m to 12 m
- Sensing range: 0.3 m to 9.5 m
- Type of light: Visible red light, wavelength 625 nm
- Light source: PinPoint LED
- Light spot size at 5 m: Ø 58 mm
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: PNP, complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, C, D
- Protection class: III
- Housing material: Plastic, ABS/PMMA
- Enclosure rating: IP67
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- Electromagnetic compatibility: EN 60947-5-2
- Certifications: cULus, China-RoHS, Photobiological safety (DIN EN 62471)
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- High functional reliability on foil-wrapped objects
- Rectangular plastic housing with IP67 enclosure rating
- Polarizing filter included
- Fast response time of ≤ 1 ms and switching frequency of 500 Hz
- Complementary PNP output with light/dark switching mode
- Wide supply voltage range from 10 V DC to 30 V DC
- Male connector M12, 4-pin connection type
- Electromagnetic compatibility compliant with EN 60947-5-2
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Industrial automation for object detection
- Detecting objects wrapped in film
- Use in environments requiring high functional reliability on foil-wrapped objects
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GL10-F4551P05 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
