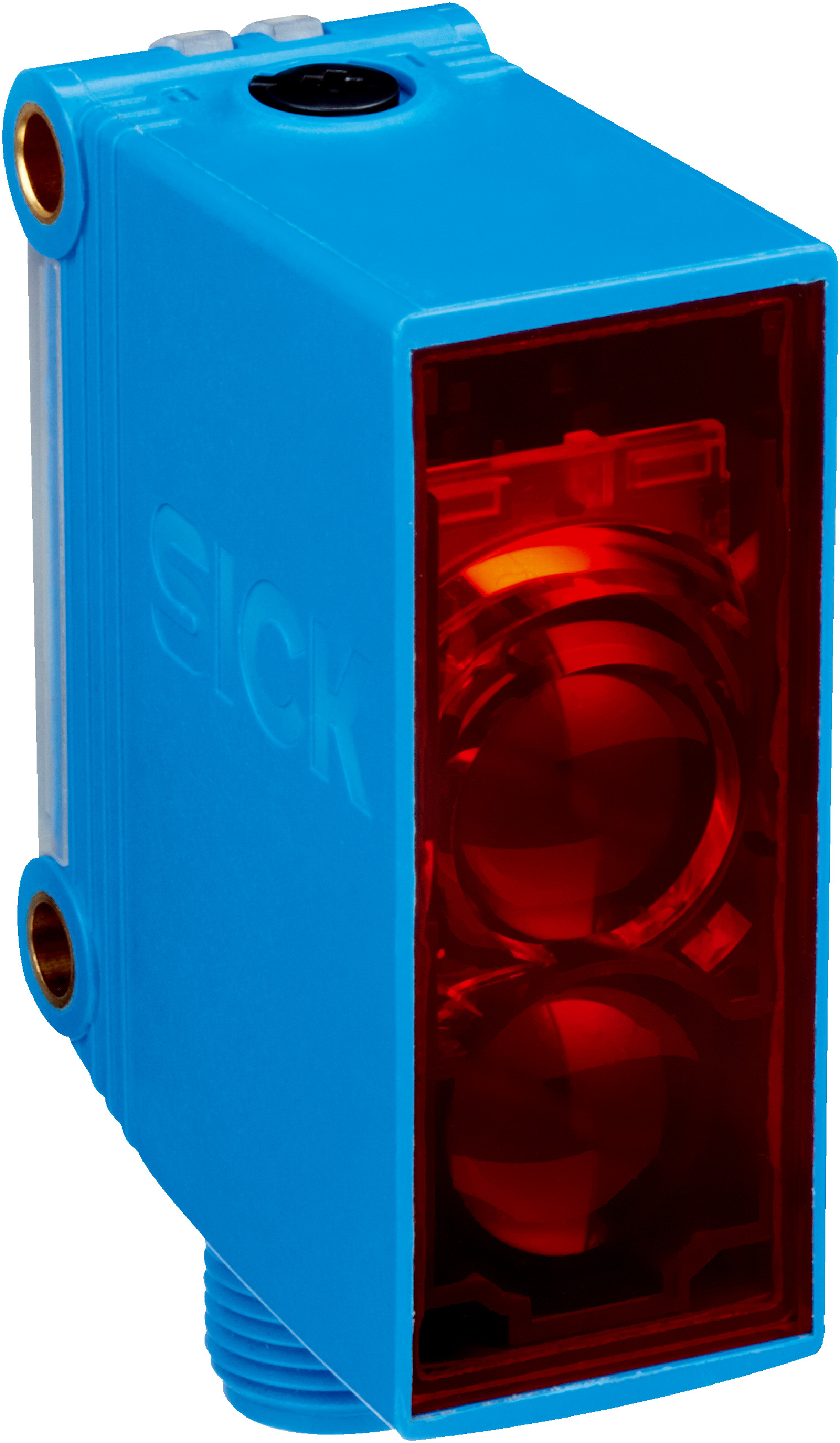

Photoelectric Retro-Reflective Sensor GL10-P4151 | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor GL10-P4151 features a dual lens system for precise object detection, with a sensing range of 0.15 m to 12 m. Ideal for industrial automation, this sensor operates in temperatures from -30 °C to +60 °C and offers a fast response time of ≤ 1 ms. With an IP67 enclosure rating, it ensures reliable performance even in challenging environments, making it perfect for detecting objects wrapped in film.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.15 m to 12 m
- Sensing range typical: 0.3 m to 9.5 m
- Type of light: Visible red light, wavelength 625 nm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark selectable
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Housing material: Plastic ABS/PMMA
- Enclosure rating: IP67
- EMC standard: EN 60947-5-2
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- Certifications: EU, UK, ACMA, Moroccan declarations of conformity, China-RoHS, cULus, Photobiological safety (DIN EN 62471)
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- High functional reliability on foil-wrapped objects
- Selectable light/dark switching mode
- Polarizing filter included
- Enclosure rating IP67 for dust and water protection
- Operating temperature range from –30 °C to +60 °C
- Fast response time ≤ 1 ms and switching frequency of 500 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Industrial automation for object detection
- Detection of objects wrapped in film
- Use in environments requiring reliable photoelectric sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL10-P4151 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
