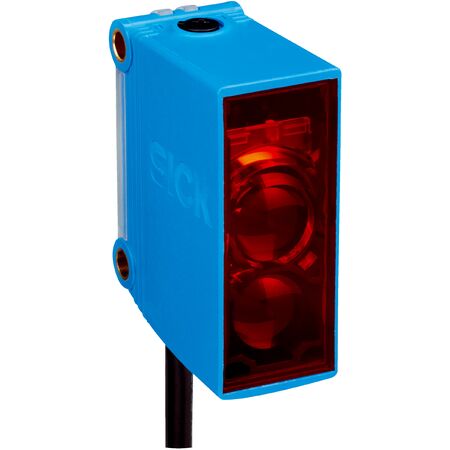

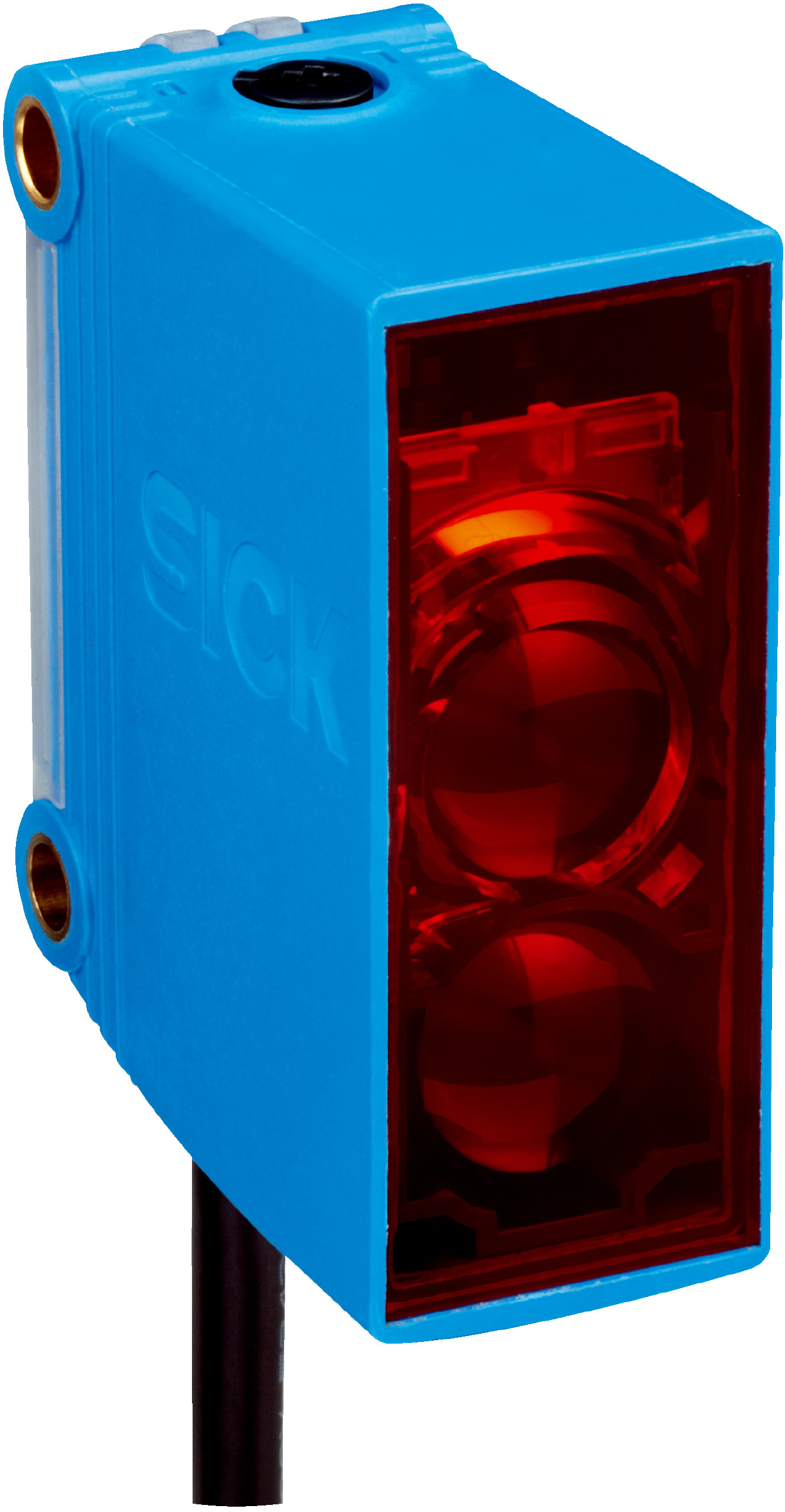

Photoelectric Retro-Reflective Sensor GL10-P8111 | IP67 Rated | Fast Response Time | PNP Output | by SICK
The Photoelectric Retro-Reflective Sensor GL10-P8111 is designed for industrial automation, featuring a robust IP67 enclosure and a fast response time of ≤ 500 µs. With selectable light/dark switching mode and a high switching frequency of 1,000 Hz, this sensor is perfect for object detection in manufacturing and material handling applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 5 m
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Protection class: III
- Enclosure rating: IP67
- Electromagnetic compatibility: EN 60947-5-2
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- Light source: PinPoint LED, 625 nm wavelength
- Light spot size at 5 m: Ø 58 mm
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.18 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED at 625 nm wavelength
- Selectable light/dark switching mode with PNP output
- High switching frequency of 1,000 Hz and fast response time ≤ 500 µs
- Robust plastic ABS/PMMA housing with IP67 enclosure rating
- Wide operating temperature range from –30 °C to +60 °C
- Polarizing filter included to reduce interference
- Cable connection with 3-wire, 5 m PVC cable
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Safety and control systems in manufacturing
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL10-P8111 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
