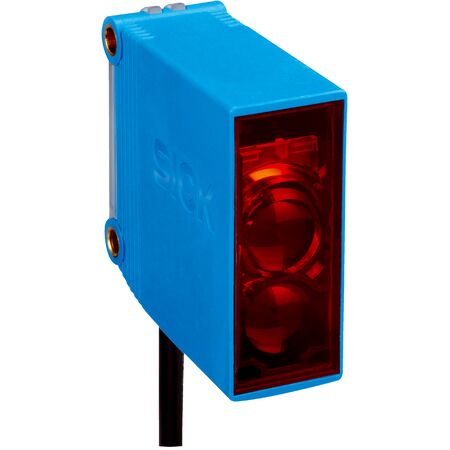

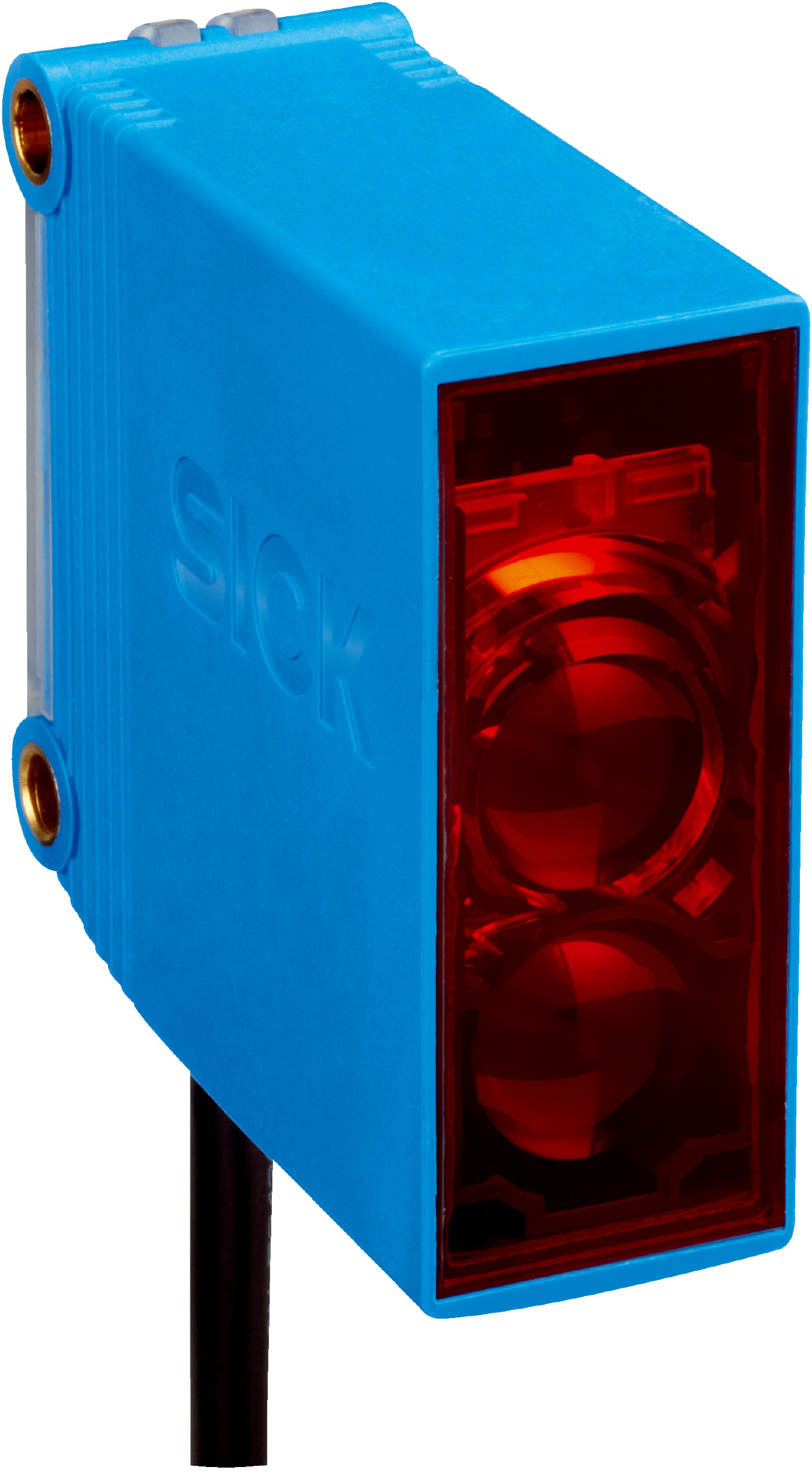

Photoelectric Retro-Reflective Sensor GL10-R3711 | Dual Lens System | IP67 Enclosure | by SICK
The Photoelectric Retro-Reflective Sensor GL10-R3711 features a dual lens system and a sensing range of up to 15 meters, making it ideal for industrial automation and safety control applications. With a robust IP67 enclosure and visible red light from a PinPoint LED source, this sensor ensures reliable performance in various environments, providing high switching frequency and low power consumption for energy efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.08 m to 15 m
- Type of light: Visible red light, wavelength 625 nm
- Light source: PinPoint LED
- Light spot size at 5 m: Ø 58 mm
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Ripple: < 10%
- Power consumption: ≤ 2.5 VA
- Switching output: Relay, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Max switching load: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection type: 5-wire cable, 2 m, PVC insulation
- Protection class: II
- Enclosure rating: IP67
- Relay switching cycles min: 100,000 cycles (3 A)
- Usage category: DC-13 and AC-15 according to EN 60947-1
- Electromagnetic compatibility: EN 60947-5-2, EN 61000-6-3
- Ambient operating temperature: -30°C to +60°C
- Storage temperature: -40°C to +70°C
- Housing material: Plastic ABS/PMMA
- Polarizing filter included
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.115 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range up to 15 meters
- Rectangular housing design with IP67 enclosure rating
- Relay SPDT electrically isolated switching output
- Light/dark switching mode
- High switching frequency of 20 Hz
- Polarizing filter included
- Wide ambient operating temperature range from -30°C to +60°C
- Robust plastic ABS/PMMA housing material
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and control systems in manufacturing
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of ≤ 2.5 VA reduces energy usage
- Durable IP67 rated housing ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL10-R3711 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
