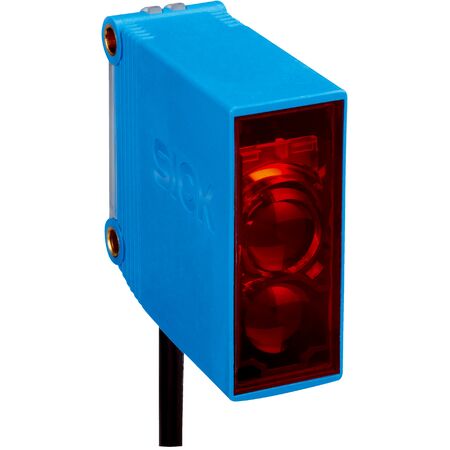

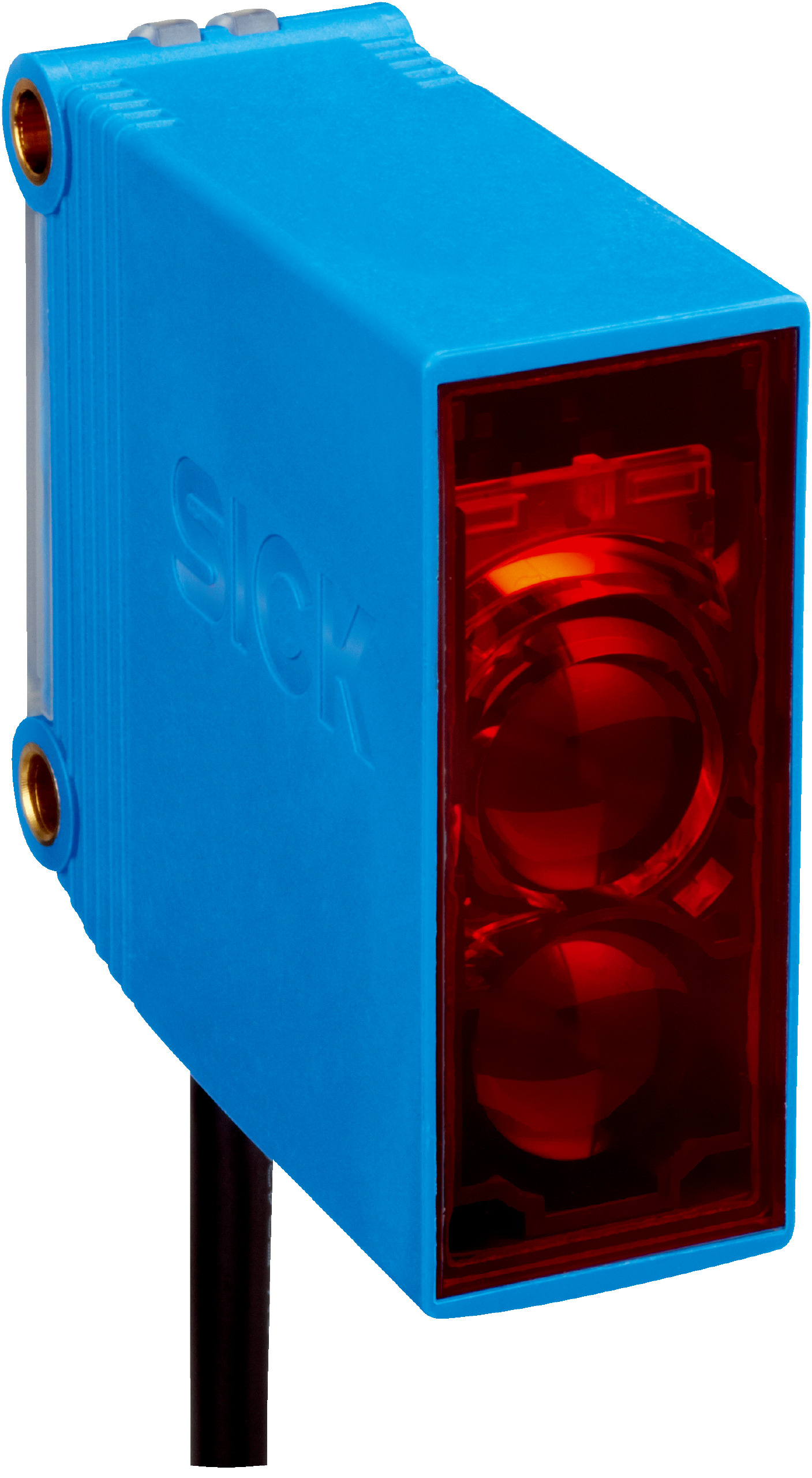

Photoelectric Retro-Reflective Sensor GL10-R3712 | 15m Sensing Range | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor GL10-R3712 is designed for industrial automation, featuring a dual lens system and a sensing range of up to 15 meters. With a robust IP67 rating, it operates effectively in harsh environments, making it ideal for safety monitoring and object detection in manufacturing processes. Its visible red light and relay SPDT output ensure reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.08 m to 15 m depending on reflector
- Light source: PinPoint LED, wavelength 625 nm
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Power consumption: ≤ 2.5 VA
- Switching output: Relay, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Switching load max: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection type: 5-wire cable, 2 m length, PVC insulation
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS/PMMA
- Relay switching cycles min: 100,000 cycles at 3 A
- Includes mounting bracket BEF-G10UC01 and reflector P250
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.115 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED at 625 nm wavelength
- Sensing range up to 15 m depending on reflector
- Relay SPDT electrically isolated switching output with light/dark switching mode
- High protection rating IP67 suitable for harsh environments
- Operating temperature range from -30 °C to +60 °C
- Plastic ABS/PMMA housing with rectangular light emission design
- Includes mounting bracket and reflector for easy installation
- Polarizing filter to reduce interference
- Complies with multiple international safety and EMC standards
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 2.5 VA reduces energy usage
- Durable IP67 rated housing extends product life and reduces waste
- Compliant with China-RoHS and other environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL10-R3712 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
