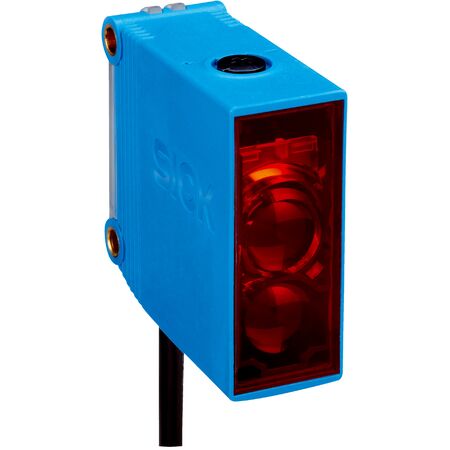

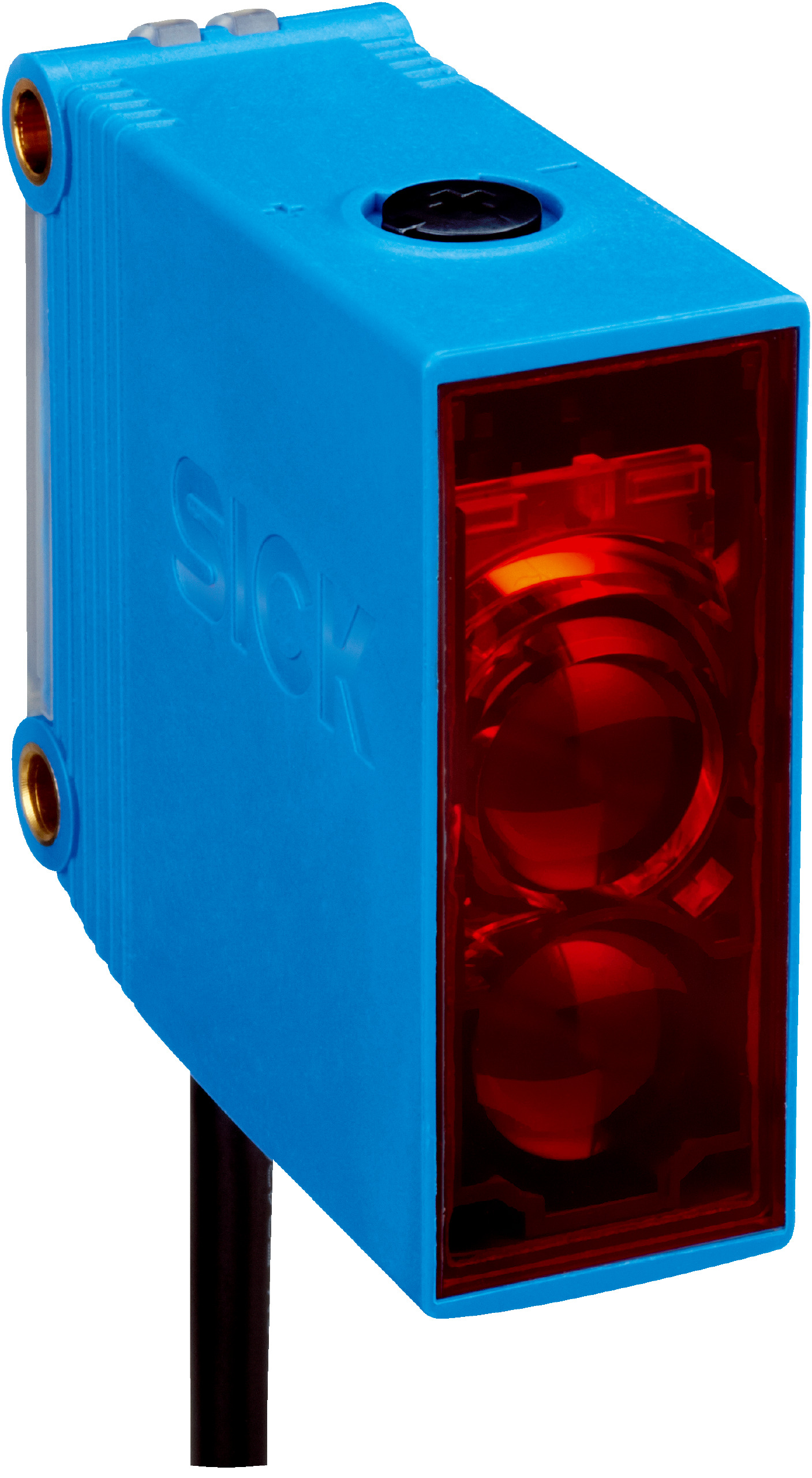

Photoelectric Retro-Reflective Sensor GL10-R9811P16 | Dual Lens System | IP67 Rated | 15m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor GL10-R9811P16 is designed for industrial automation, featuring a dual lens system for precise object detection up to 15 meters. With a robust IP67 rating, it ensures reliable performance in harsh environments, making it ideal for safety and monitoring applications in manufacturing and material handling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.08 m to 15 m depending on reflector
- Light source: PinPoint LED, visible red light at 625 nm wavelength
- Adjustment: Potentiometer, 270°
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Power consumption: ≤ 2.5 VA
- Switching output: Relay, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Switching load max: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection type: 5-wire cable, 5 m length, PVC insulation
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS/PMMA
- Relay switching cycles min: 100,000 cycles at 3 A
- EMC standards: EN 60947-5-2, EN 61000-6-3
- Certifications: UL File No. NRKH.E348498 & NRKH7.E348498, UL325
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.35 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED at 625 nm wavelength
- Sensing range up to 15 m depending on reflector
- Potentiometer adjustment with 270° rotation
- Relay SPDT electrically isolated switching output
- Light/dark switching mode
- High protection class IP67 for harsh environments
- Plastic ABS/PMMA housing with rectangular light emission design
- Polarizing filter included to reduce interference
- Mounting system BEF-KHS-ISG6 pre-mounted
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of ≤ 2.5 VA reduces energy usage
- Durable IP67 rated housing extends product life and reduces waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GL10-R9811P16 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
