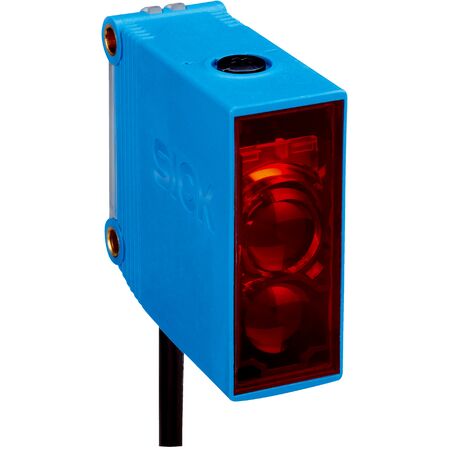

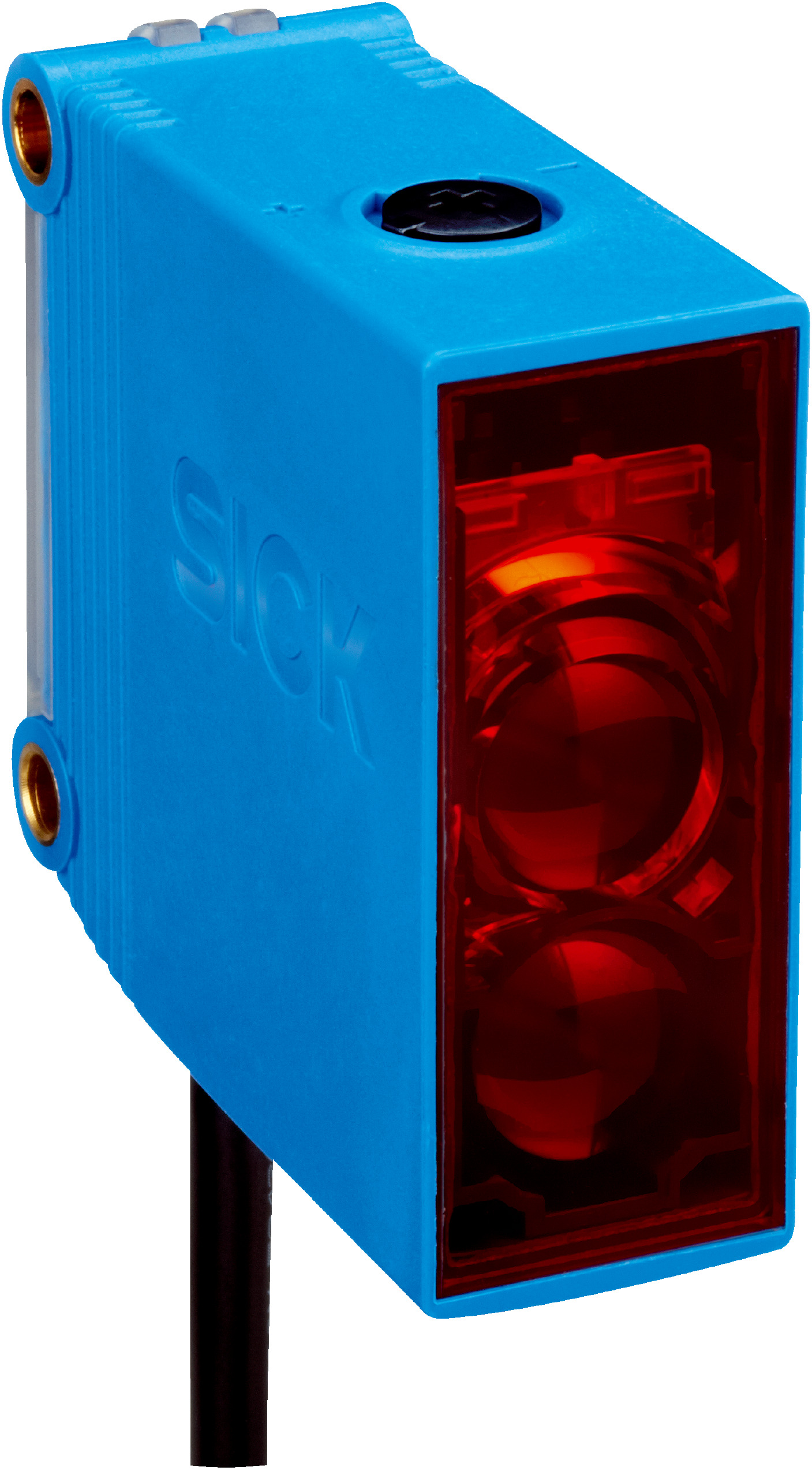

Photoelectric Retro-Reflective Sensor GL10-R9812 | Dual Lens System | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor GL10-R9812 features a dual lens system and a sensing range of up to 15 m, making it ideal for industrial automation and safety monitoring. With a robust IP67 rating, it operates efficiently in harsh environments, ensuring reliable object detection and material handling in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.08 m to 15 m depending on reflector
- Light source: PinPoint LED, visible red light at 625 nm wavelength
- Adjustment: Potentiometer, 270°
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Power consumption: ≤ 2.5 VA
- Switching output: Relay, SPDT, electrically isolated
- Switching load max: 0.11 A (250 V DC), 3 A (30 V DC), 3 A (250 V AC)
- Response time: ≤ 10 ms
- Switching frequency: 20 Hz
- Connection type: 5-wire cable, 5 m length, PVC insulation
- Protection class: II
- Enclosure rating: IP67
- Housing material: Plastic ABS/PMMA
- Operating temperature: –30 °C to +60 °C
- Storage temperature: –40 °C to +70 °C
- Relay switching cycles min: 100,000 cycles at 3 A
- EMC standards: EN 60947-5-2, EN 61000-6-3
- Certifications: EU, UK, ACMA, Moroccan conformity, China-RoHS, CCC, cULus, Photobiological safety DIN EN 62471
- Dimensions (H x L x W): 50mm x 52mm x 20mm
- Weight: 0.115 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED at 625 nm wavelength
- Sensing range up to 15 m depending on reflector
- Potentiometer adjustment with 270° rotation
- Relay output with SPDT, electrically isolated switching
- High protection rating of IP67 for harsh environments
- Polarizing filter to reduce interference
- Robust plastic housing made of ABS/PMMA
- Wide ambient operating temperature range from –30 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing minimizes waste through long product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GL10-R9812 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
