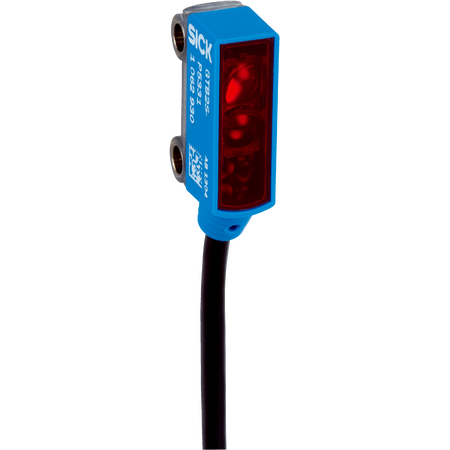

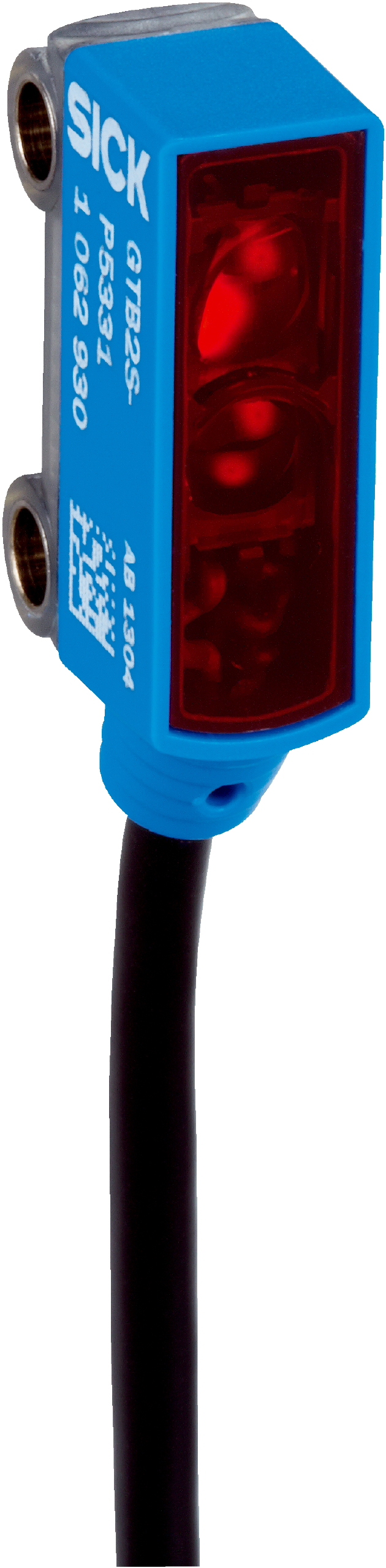

Photoelectric Retro-Reflective Sensor GL2S-P5311 | IP67 Rated | Fast Response Time | Dual Lens System | by SICK
The Photoelectric Retro-Reflective Sensor GL2S-P5311 is designed for industrial automation, featuring a fast response time of under 0.6 ms and a sensing range of 0.03 m to 2.5 m. With its robust IP67 rated housing and dual lens system, it ensures reliable object detection and safety in manufacturing lines and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK GL2S sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Connection: Cable with M8 3-pin connector, 200 mm length
- Cable material: Plastic PVC, diameter 3 mm
- Enclosure rating: IP67
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Light source: PinPoint LED, wavelength 640 nm
- Light spot size: Ø 11 mm at 250 mm distance
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Weight: 17.5 g
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range from 0.03 m to 2.5 m
- Rectangular housing design with IP67 enclosure rating
- Fast response time under 0.6 ms and switching frequency of 800 Hz
- Polarisation filter included for reliable detection
- Robust plastic ABS housing and PMMA optics material
- Wide ambient operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste from frequent replacements
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK GL2S-P5311 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
