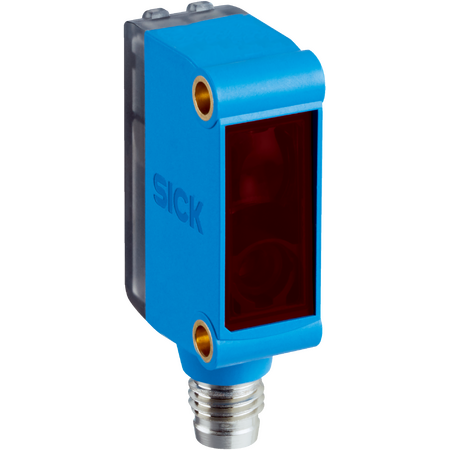

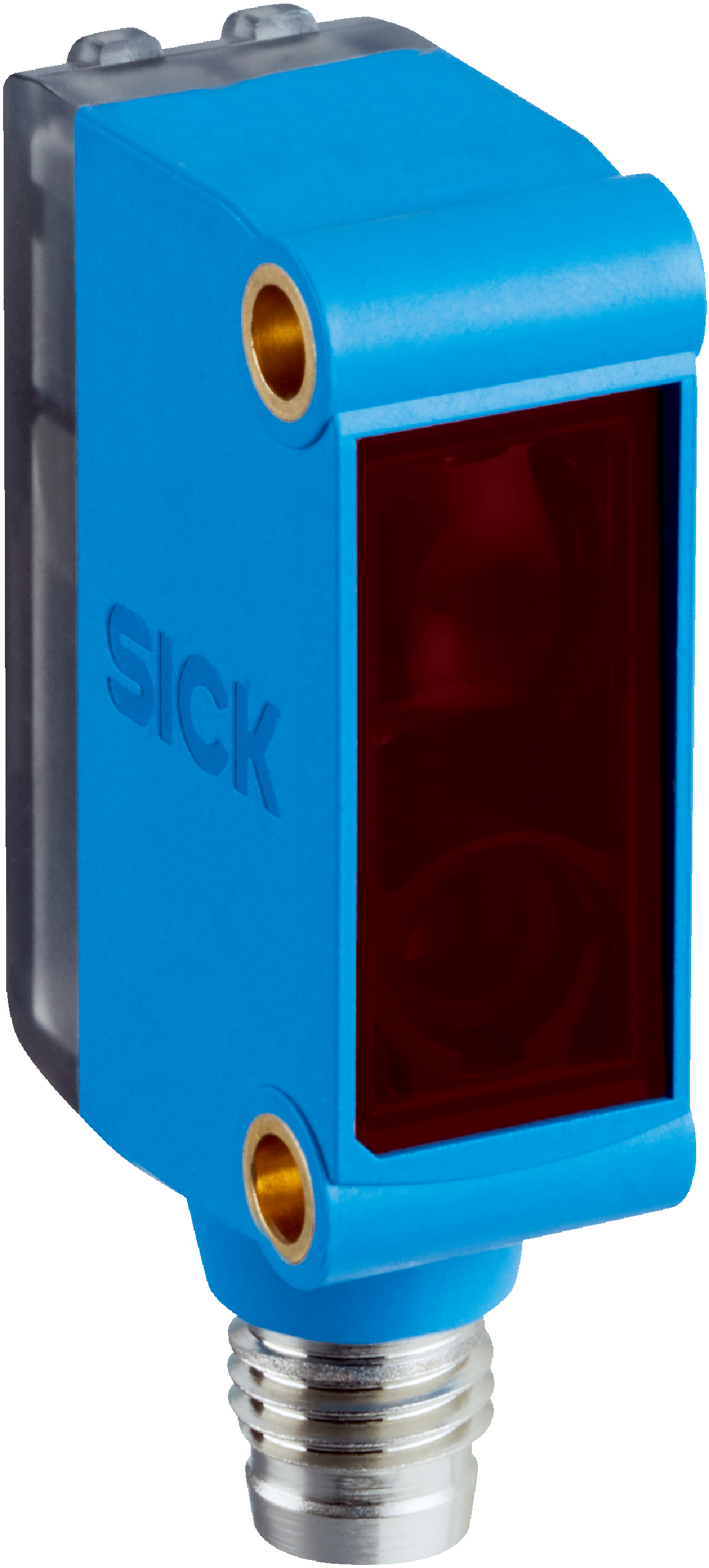

Photoelectric Retro-Reflective Sensor GL6-P4111 | IP67 Rated | 0.03m to 6m Sensing Range | 1000 Hz Switching Frequency | by SICK
The Photoelectric Retro-Reflective Sensor GL6-P4111 is designed for industrial automation, offering a sensing range from 0.03m to 6m and a high switching frequency of 1000 Hz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, SICK GL6 sensor, Industrial proximity sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Output type: PNP digital output
- Switching mode: Light/dark switching selectable
- Response time: less than 625 µs
- Switching frequency: 1,000 Hz
- Signal voltage PNP HIGH/LOW: VS- (≤ 3 V) / approx. 0 V
- Output current max: ≤ 100 mA
- Circuit protection: A, B, D
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m to 6 m
- Polarisation filter included
- Visible red light with 650 nm wavelength
- PinPoint LED light source with Ø 8 mm light spot size at 350 mm
- Light/dark switching mode selectable via light/dark selector
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Compact housing made of plastic ABS/PC with plastic PMMA front screen
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL6-P4111 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
