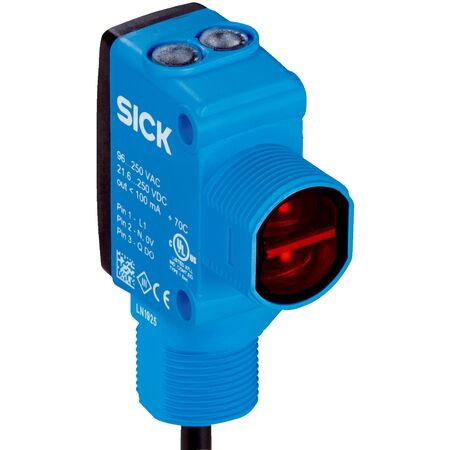

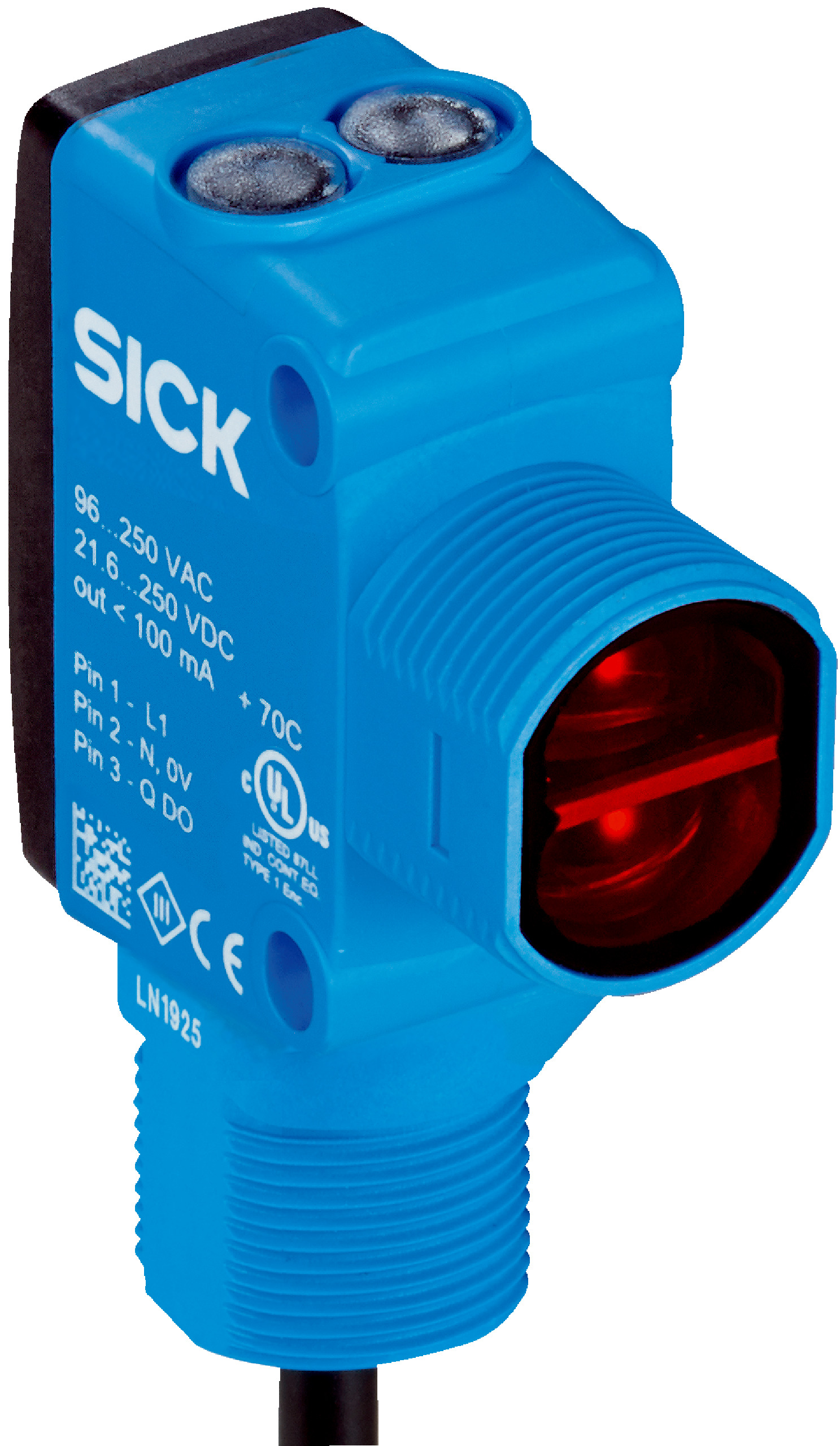

Photoelectric Retro-Reflective Sensor HL18B-M1G3AA | Dual Lens System | IP67 & IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor HL18B-M1G3AA is designed for industrial automation, featuring a dual lens system for precise object detection up to 6.5 meters. With a fast response time of ≤ 0.5 ms and a robust IP67/IP69K enclosure, this sensor is perfect for manufacturing process control and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range: 0.03 m to 6.5 m
- Light source: PinPoint LED, wavelength 631 nm
- Supply voltage: 21.6 V DC to 250 V DC, 96 V AC to 250 V AC
- Current consumption: ≤ 10 mA
- Switching output: MOSFET, dark switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Cable open end, 2 m PVC cable
- Protection class: II
- Enclosure rating: IP67, IP69K
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Operating temperature: –40 °C to +70 °C
- Storage temperature: –40 °C to +75 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 50.1mm x 34.4mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range up to 6.5 meters
- MOSFET switching output with dark switching mode
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Robust plastic housing with IP67 and IP69K enclosure rating
- Wide ambient operating temperature range from –40 °C to +70 °C
- Polarizing filter included to reduce false triggering
- Cable open end connection with 2 m PVC cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with ≤ 10 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK HL18B-M1G3AA Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
