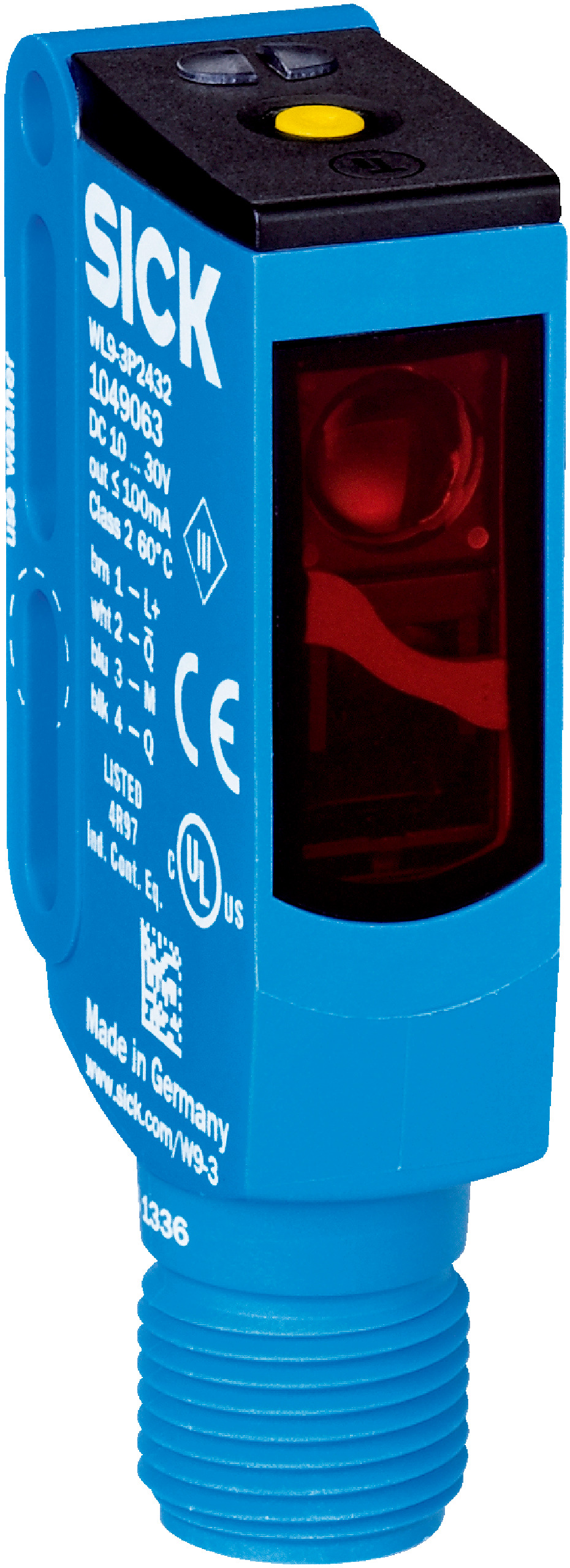

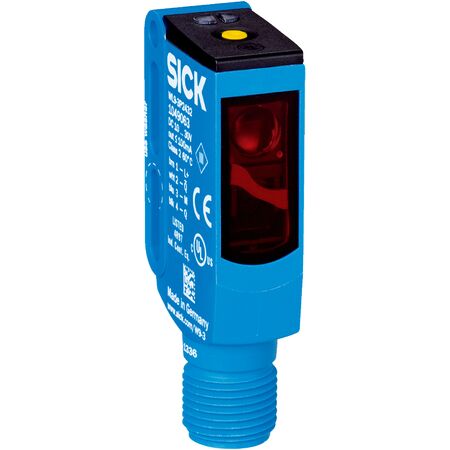

Photoelectric Retro-Reflective Sensor | IO-Link Communication | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL9C-3P2432A00 is designed for industrial automation, featuring IO-Link communication and a robust IP66/IP67/IP69K rated housing. With a fast response time of under 0.5 ms and a sensing range of up to 5 meters, it's perfect for object detection in manufacturing and logistics applications, ensuring safety and quality control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary function
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Light source: PinPoint LED, 650 nm wavelength
- Adjustment: IO-Link, single teach-in button
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light source with PinPoint LED at 650 nm wavelength
- Sensing range up to 5 meters without reflector, 3 meters standard
- Rectangular plastic housing with IP66, IP67, and IP69K protection ratings
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- IO-Link V1.1 communication interface with 16-bit process data
- Multiple switching modes including light/dark switching and complementary output
- Robust operation in ambient temperatures from -40 °C to +60 °C
- M12 4-pin male connector for easy integration
- Device contamination alarm output and quality of run diagnostics
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and IO-Link communication protocols to ensure optimal performance and safety.
Applications
- Industrial automation for object detection
- Safety and quality control in manufacturing
- Material handling and conveyor systems
- Packaging and logistics systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP69K rated housing minimizes environmental impact by extending product life
- Supports predictive maintenance through diagnostics, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL9C-3P2432A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
