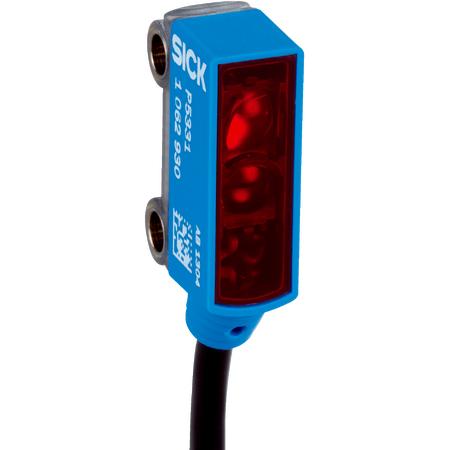

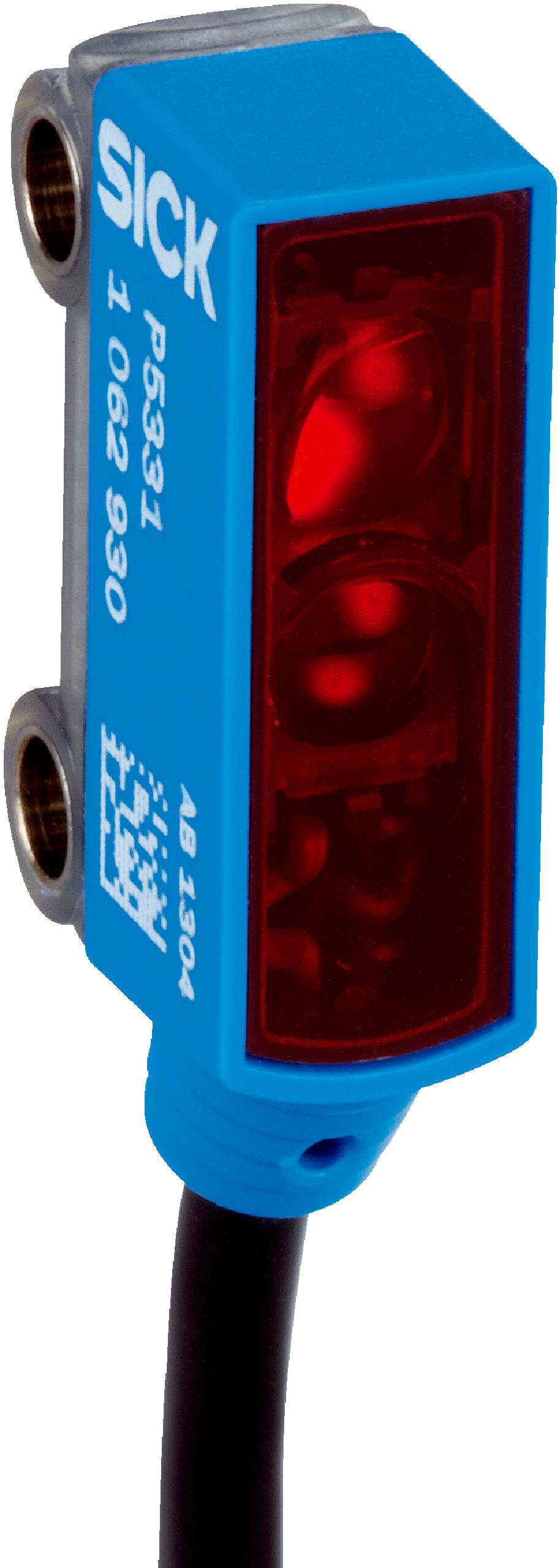

Photoelectric Retro-Reflective Sensor | IO-Link Adjustable | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor is designed for precise object detection in industrial automation, featuring an IO-Link interface for adjustable settings and a high switching frequency of 1000 Hz. With a sensing range of up to 1.2 m and an IP67 rated enclosure, it ensures reliable performance in challenging environments, making it ideal for conveyor systems and packaging lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, IO-Link sensor, Object detection sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max 50 mA
- Switching mode: Light/dark switching
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-pin M8 male connector, 200 mm cable
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -20°C to +50°C
- Storage temperature: -40°C to +75°C
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- PinPoint LED light source with 640 nm wavelength
- Sensing range up to 1.2 m without reflector
- IO-Link adjustable settings for flexible operation
- High switching frequency of 1000 Hz and fast response time under 0.5 ms
- IP67 rated enclosure for dust and water protection
- Polarizing filter to reduce interference
- Compact rectangular housing design
- Contamination alarm output for maintenance indication
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Use in conveyor systems and packaging lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK WL2SGC-2P3234A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
