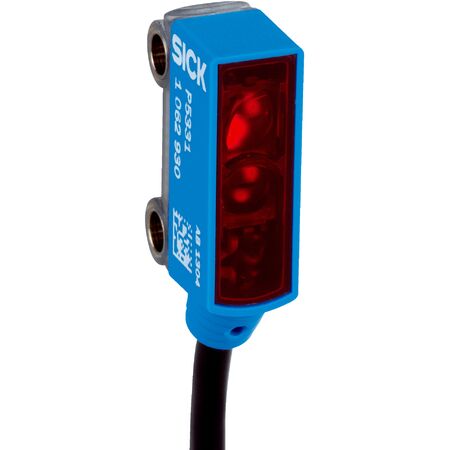

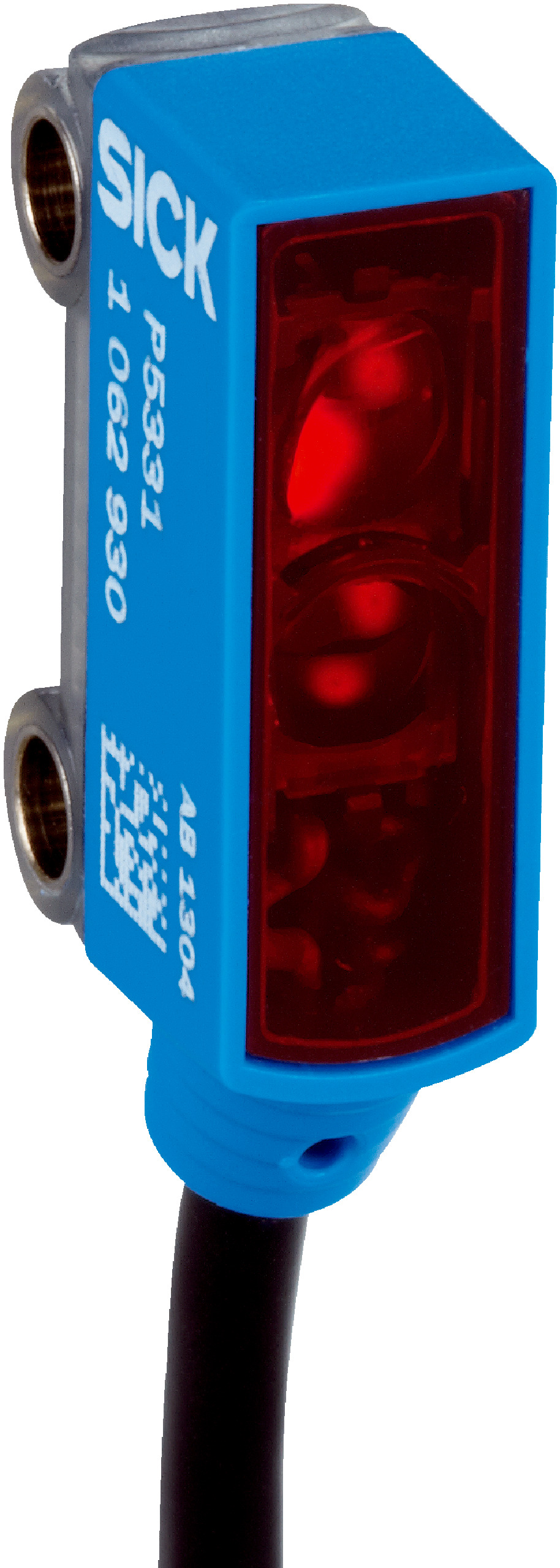

Photoelectric Retro-Reflective Sensor | IO-Link Communication | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor is designed for precise object detection in industrial automation, featuring IO-Link communication for adjustable settings. With a high switching frequency of 1000 Hz and a fast response time of under 0.5 ms, this sensor is perfect for detecting transparent objects in manufacturing environments. Its durable IP67 rated enclosure ensures reliable performance in challenging conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max 50 mA
- Switching mode: Light/dark switching
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M8 male connector, 4-pin, 200 mm
- Enclosure rating: IP67
- Operating temperature: -20°C to +50°C
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Light source: PinPoint LED, 640 nm wavelength
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Polarisation filter included
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED at 640 nm wavelength
- Sensing range up to 1.2 m without reflector, 0 to 0.55 m typical
- IO-Link adjustable settings for flexible operation
- High switching frequency of 1000 Hz and fast response time under 0.5 ms
- IP67 rated enclosure for dust and water protection
- Polarisation filter to reduce interference
- Plastic ABS/PC housing with PMMA optics
- Cable with M8 male connector, 4-pin, 200 mm length
- Operating temperature range from -20°C to +50°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration with IO-Link systems.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Use in environments requiring precise sensing with IO-Link communication
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
- Enables automation that can improve resource efficiency in industrial processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WL2SGC-2P3234A00 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
