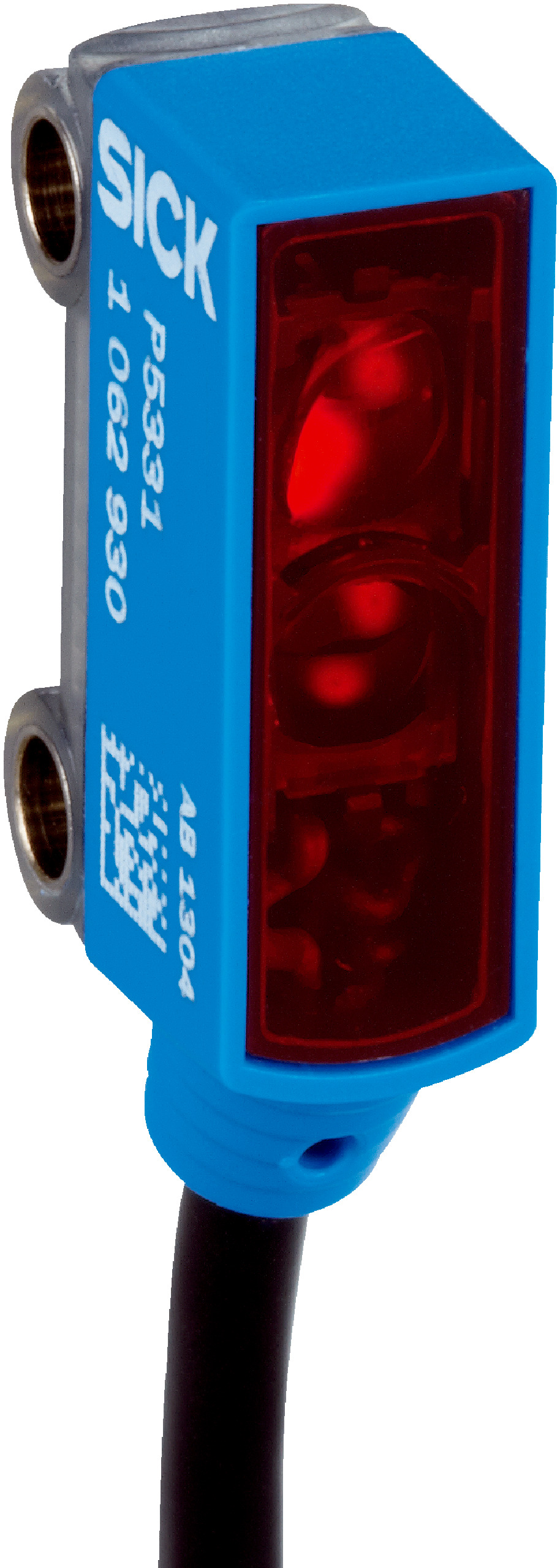

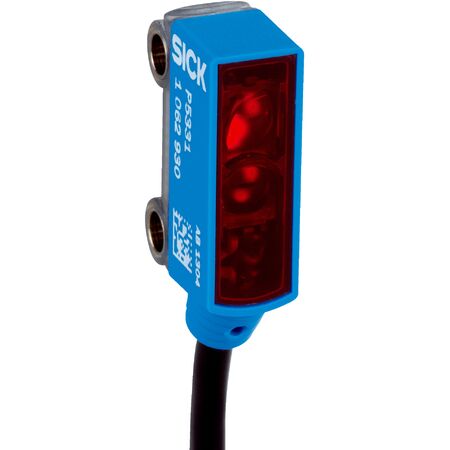

Photoelectric Retro-Reflective Sensor | IO-Link Adjustable | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL2SGC-2P3234B01 is designed for precise object detection in industrial automation. With a high switching frequency of 1000 Hz and a fast response time of under 0.5 ms, it excels in detecting transparent objects on conveyor systems. Its IP67 rated enclosure ensures durability against dust and water, making it perfect for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max 50 mA
- Switching mode: Light/dark switching, dark switching pre-set
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M8 male connector, 4-pin, 200 mm
- Enclosure rating: IP67
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED at 640 nm wavelength
- Sensing range up to 1.2 m without reflector, 0 to 0.55 m typical
- IO-Link adjustable settings with AutoAdapt feature
- High switching frequency of 1000 Hz and fast response time under 0.5 ms
- IP67 rated enclosure for dust and water protection
- Plastic ABS/PC housing with PMMA optics
- Polarisation filter included for reliable detection
- Cable with M8 male connector, 4-pin, 200 mm length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration via IO-Link.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Use in conveyor systems and packaging lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
- Compliant with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK WL2SGC-2P3234B01 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
