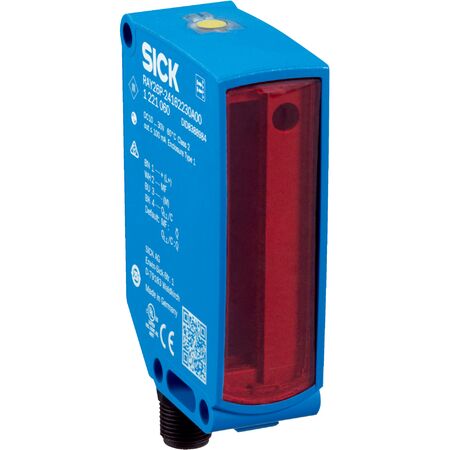

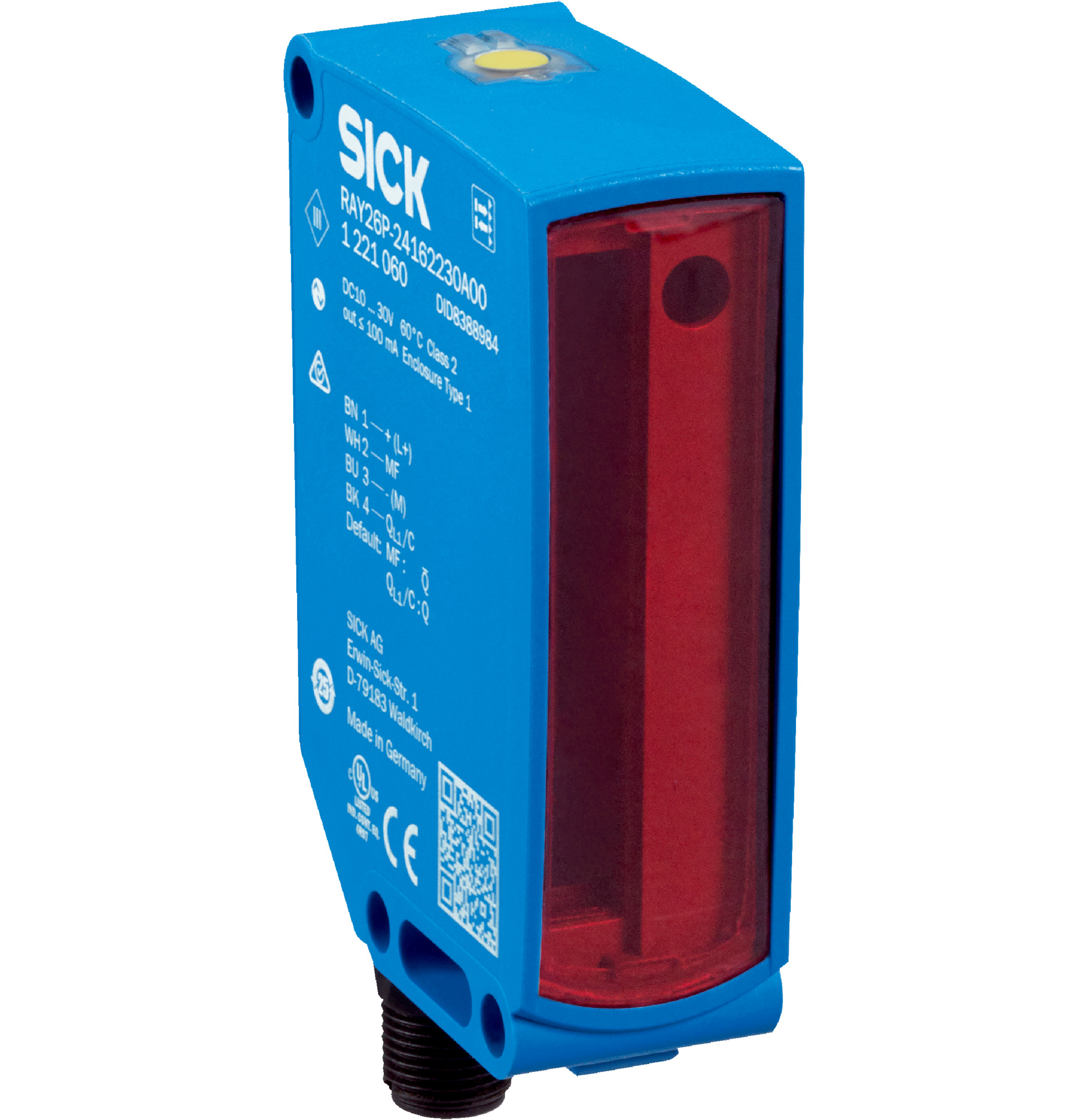

Photoelectric Retro-Reflective Sensor | IO-Link Configurable | Sensing Range 4.5m | by SICK
The Photoelectric Retro-Reflective Sensor RAY26P-34162A30A00 is designed for precise object detection in industrial automation. With a configurable minimum object size from 10 mm to 30 mm and a sensing range of up to 4.5 m, it ensures reliable performance. Featuring a robust IP66/IP67 housing and a fast response time of ≤ 500 µs, this sensor is perfect for detecting various object types, including shiny and transparent surfaces.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 83mm x 53mm x 25mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- Minimum object size configurable via IO-Link from 10 mm to 30 mm
- Sensing range up to 4.5 m
- PinPoint LED light source with 635 nm wavelength
- BluePilot teach-in and IO-Link adjustment
- Push-pull PNP/NPN switching output with light/dark switching modes
- High switching frequency up to 1000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66 and IP67 protection
- Wide ambient operating temperature range from -40 °C to +60 °C
- Cable with M12 male connector, 4-pin
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper sensor alignment and configuration via IO-Link.
Applications
- Industrial automation for object detection
- Position-independent detection within light array
- Detection of perforated, uneven, shiny, transparent, and flat objects
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable design reduces waste and replacement frequency
- Low power consumption of 25 mA to 40 mA
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK RAY26P-34162A30A00 sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
